LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Reassembling the Case
Section Menu Section Contents Procedures Back Index
187
8
7. Reinstall the right corner bumper (3207307-001) with 4
screws (3207361-375); torque to 10.0 in-lb using Torx T-15
bit.
8. Reinstall the left corner bumper (3206968-000) with 4
screws (3207361-375); torque to 10.0 in-lb using Torx T-15
bit.
NOTE: If new bumpers and feet are required, use Guard & Feet
Repair Kit (MIN 3305431-019) (p. 509).

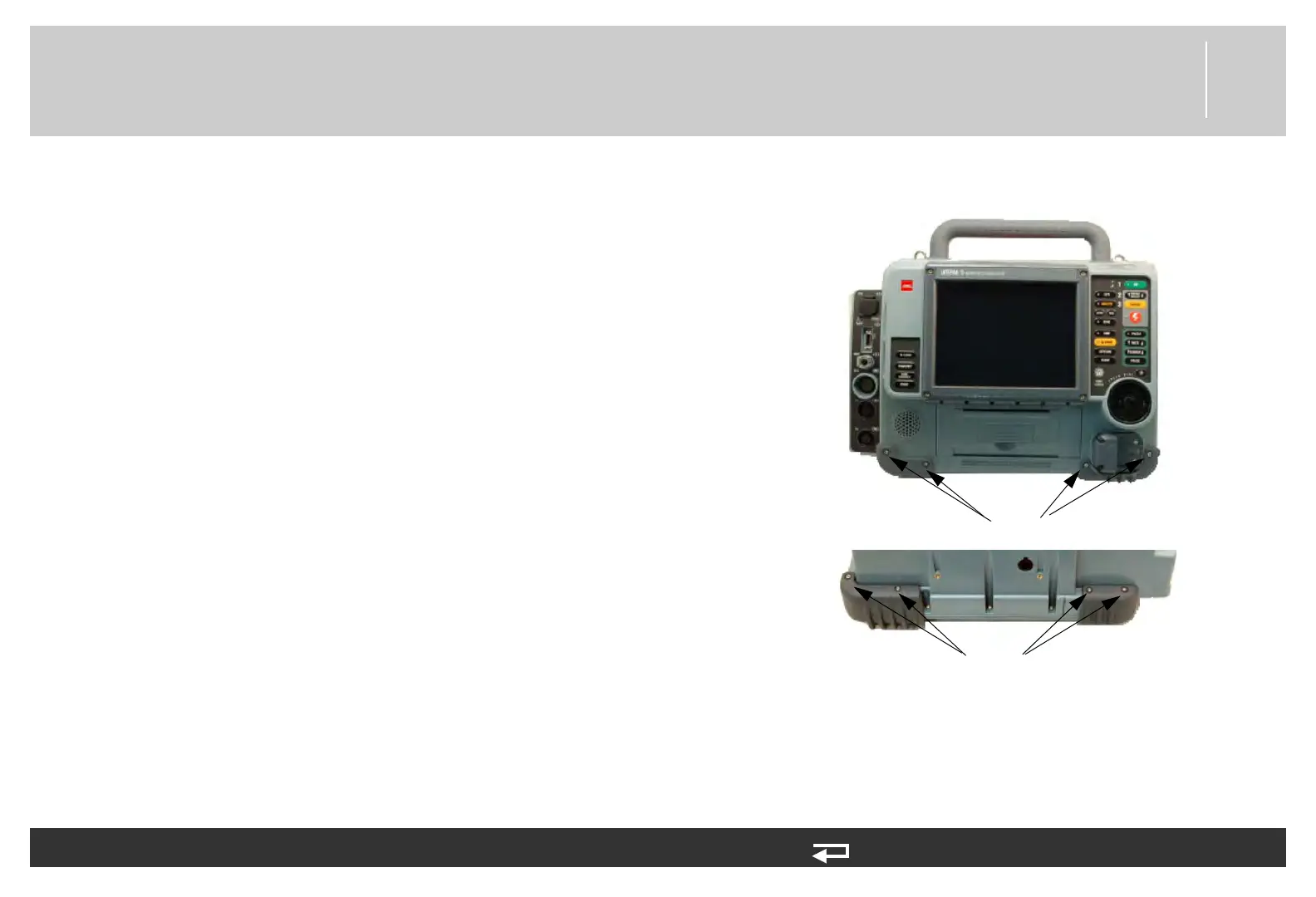

Figure 8.9—Bumper screw locations
 To reassemble the case halves: (Continued) 13 steps, (Page 4 of 5)
Front bumper screws
Rear bumper screws
