LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Inside Rear Case Diagrams
Section Menu Section Contents Procedures Back Index
229
8

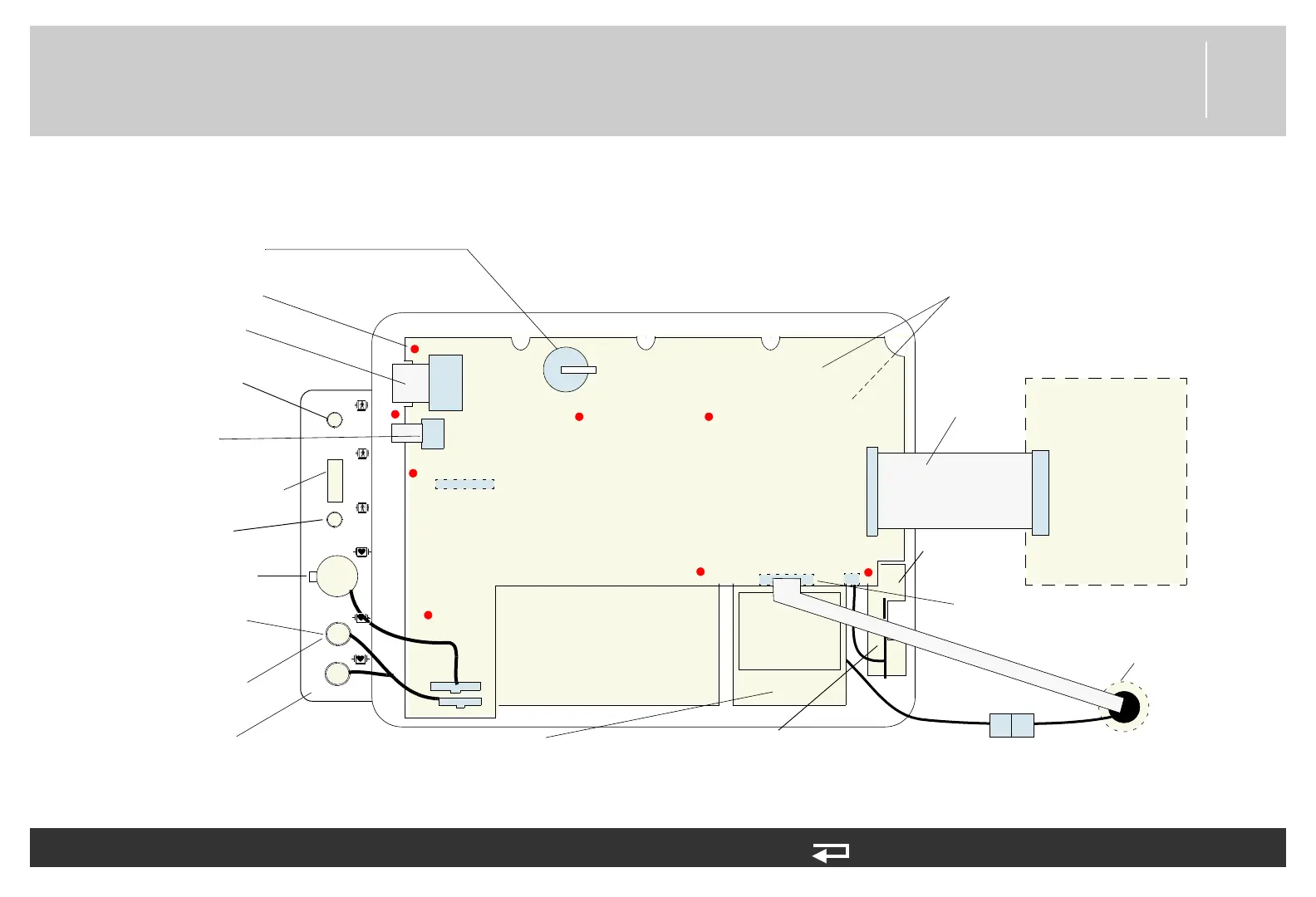

Rear Case Overview
Use this diagram after disassembling the case as described in Disassembling the Case (p. 181).
Energy Storage Capacitor (A15)
Replacement
OEM PCB (A06) Replacement
J04
J02
Replacing the System PCB
(A01)
J50
USB Flex Module
(W14) Replacement
J01
Power/System PCB
Cable (W01)
Replacement
Coin Battery
Replacement
ECG Connector Cable
(W07) Replacement
J06
J30
Interface PCB (A05)
Replacement
(front case)
System/
Interface PCB
Cable (W04)
Replacement
Parameter Bezel
Replacement
Interconnect
Bracket (A17)
Replacement
(A14) Biphasic Module
(A22)/Inductive Resistor
(A14) Replacement
Replacing the Therapy PCB
(A04)-J23
Therapy Connector Cable (W11)
Replacement
P24/J24
(front case)
System (A01)/Therapy
(A04) PCB Assembly
Replacement
disassembly screw
(typical)
(W22) Biphasic Module (A22)/Inductive
Resistor (A14) Replacement
NIBP Connector
Replacement
CO2 Inlet Connector
Cable (W28)
Replacement
J51
J07
ECG
SpO 2
CO2
NIBP
P1
P2
Invasive Pressure
Connector Assembly
(W33) Replacement
SpO2 Connector Cable
(W22) Replacement
(V2) Temperature
Cable Assembly (W35)
Replacement
