LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Power PCB (A03) Replacement
Section Menu Section Contents Procedures Back Index
256
8
10. Remove the W01 power/system PCB cable at J17 for reuse
with the new power PCB.
To remove the power PCB (A03) from the rear case: (Continued) 10 steps, (Page 3 of 3)
J17
connection

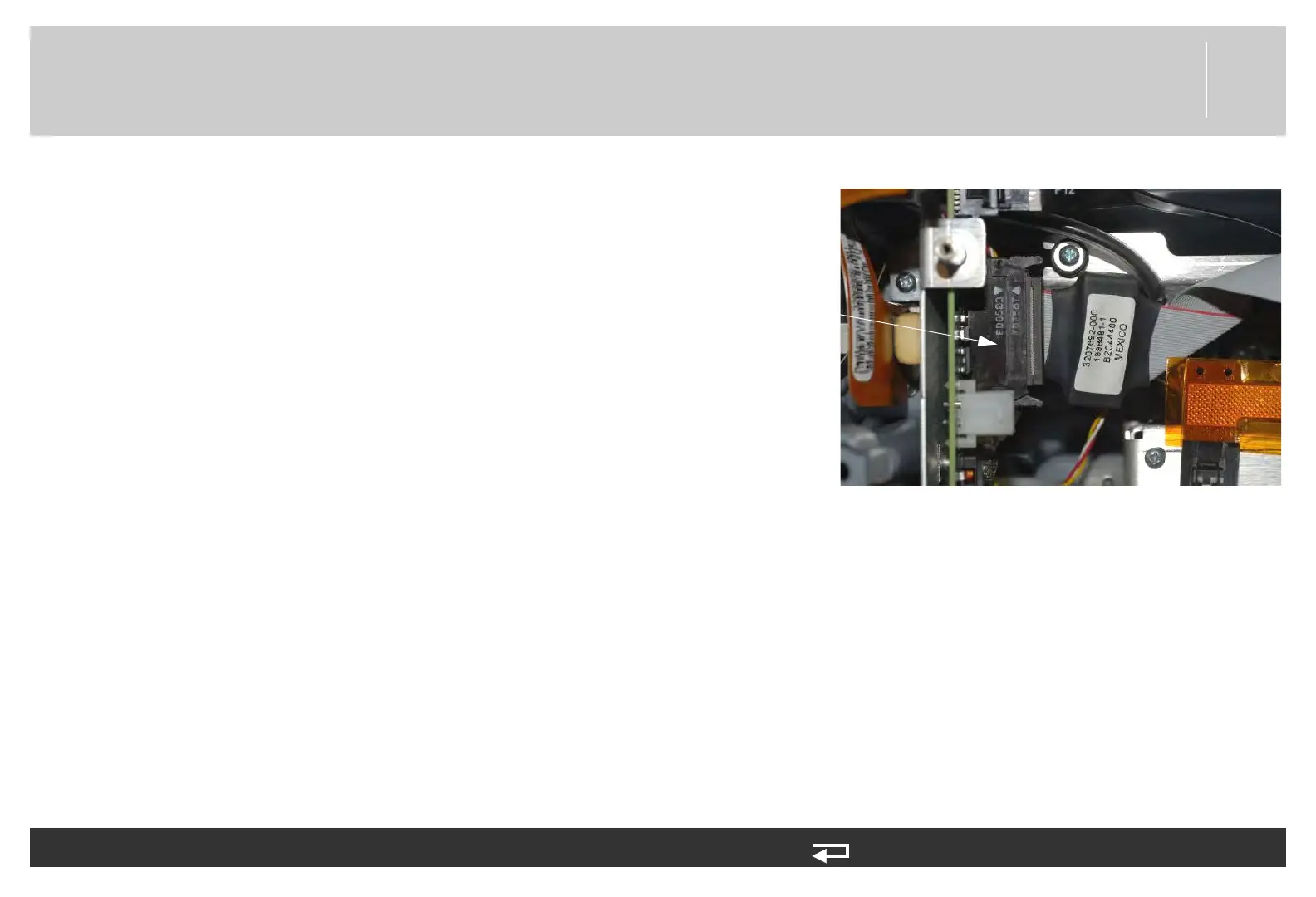

Figure 8.53—Power/system PCB cable
