LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
OEM PCB (A06) Replacement
Section Menu Section Contents Procedures Back Index
267
8
NOTE: The W01 - power/system PCB cable is
under the OEM shield.
8. Install the OEM shield (3208298-000).
9. Connect the W02 - power/therapy PCB cable
(3010569-02) to J8 on the power PCB.
10. Route the left side of the OEM shield under
the power/therapy cable J8 connector and
over the top of J11, J13 and J15 connectors
on power PCB.
11. Install the system/therapy PCB assembly as
described in System (A01)/Therapy (A04)
PCB Assembly Replacement (p. 232).
12. Reassemble the case as described in
Reassembling the Case (p. 184).
To install the OEM PCB (A06) into the rear case: (Continued) 12 steps, (Page 3 of 3)
W02 - power/
therapy cable
OEM shield
W01 - power/
system cable

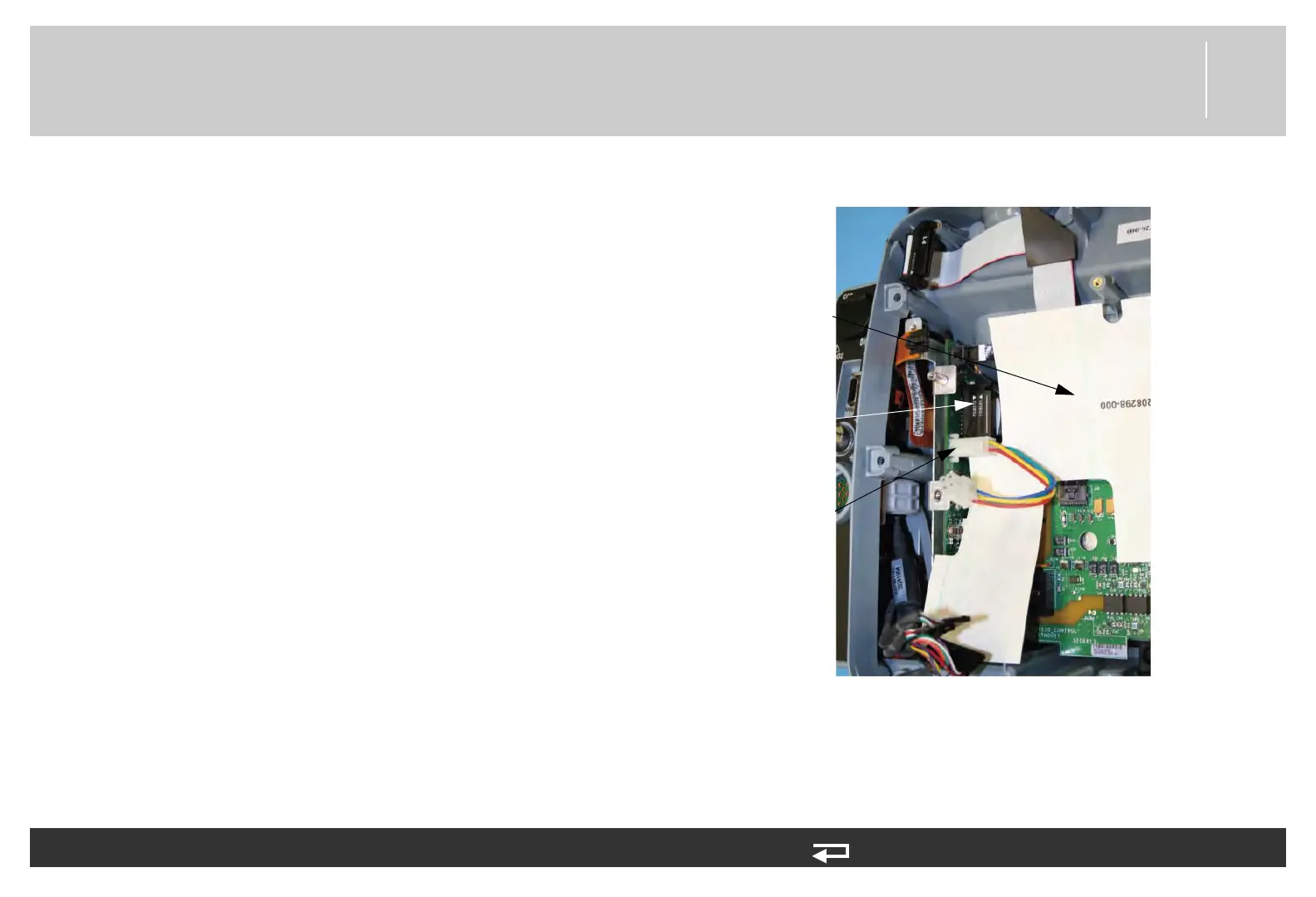

Figure 8.64—OEM PCB shield
