LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
NIBP (A21)/CO2 (A23) Module Replacement
Section Menu Section Contents Procedures Back Index
295
8
4. For the NIBP option, route the NIBP cable through the cable mount on
side of bracket cover.
5. Place the OEM bracket into rear case and secure with the three new
mounting screws (3207337-312); torque to 6.8 in-lb.
To install the A21 NIBP, A23 CO2, and SpO2 PCBs: (Continued) 12 steps, (Page 4 of 6)
NIBP cable mount

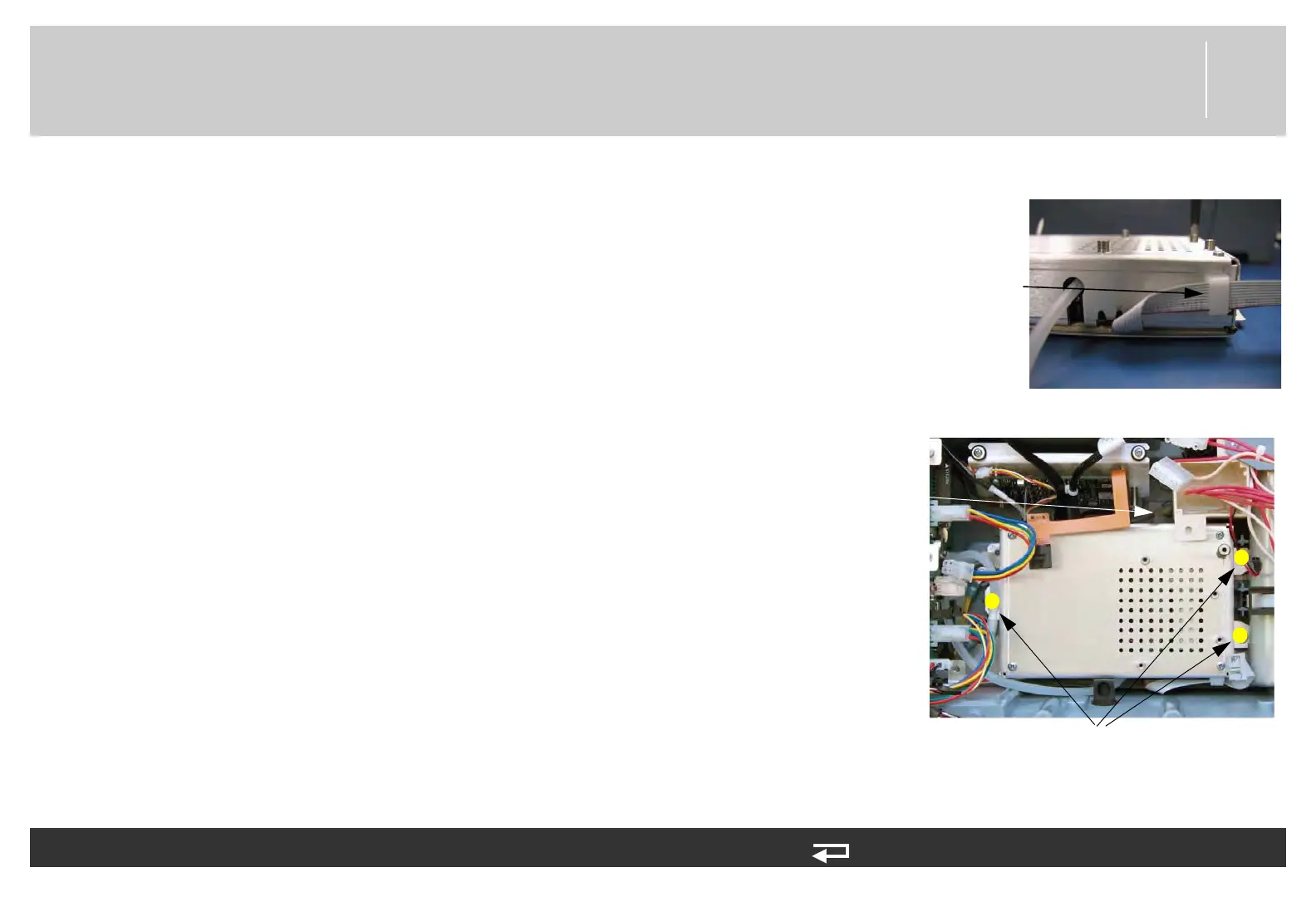

Figure 8.90—NIBP cable routing
bracket mounting
screws (3 places)
CO2
exhaust
from rear
case
Figure 8.91—CO2/NIBP mounting bracket
To Next Page
