LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
NIBP (A21)/CO2 (A23) Module Replacement
Section Menu Section Contents Procedures Back Index
294
8
d. Route the CO2 tubing and CO2 adapter cable as shown. Ensure that
the cable and tubing are not pinched when installing the bracket
cover.
3. Attach the bracket cover to the OEM bracket with four new screws
(202253-760); torque to 4.0 in-lb.
To install the A21 NIBP, A23 CO2, and SpO2 PCBs: (Continued) 12 steps, (Page 3 of 6)
CO2 cable and
tubing
CO2 cable
CO2 hose from
module

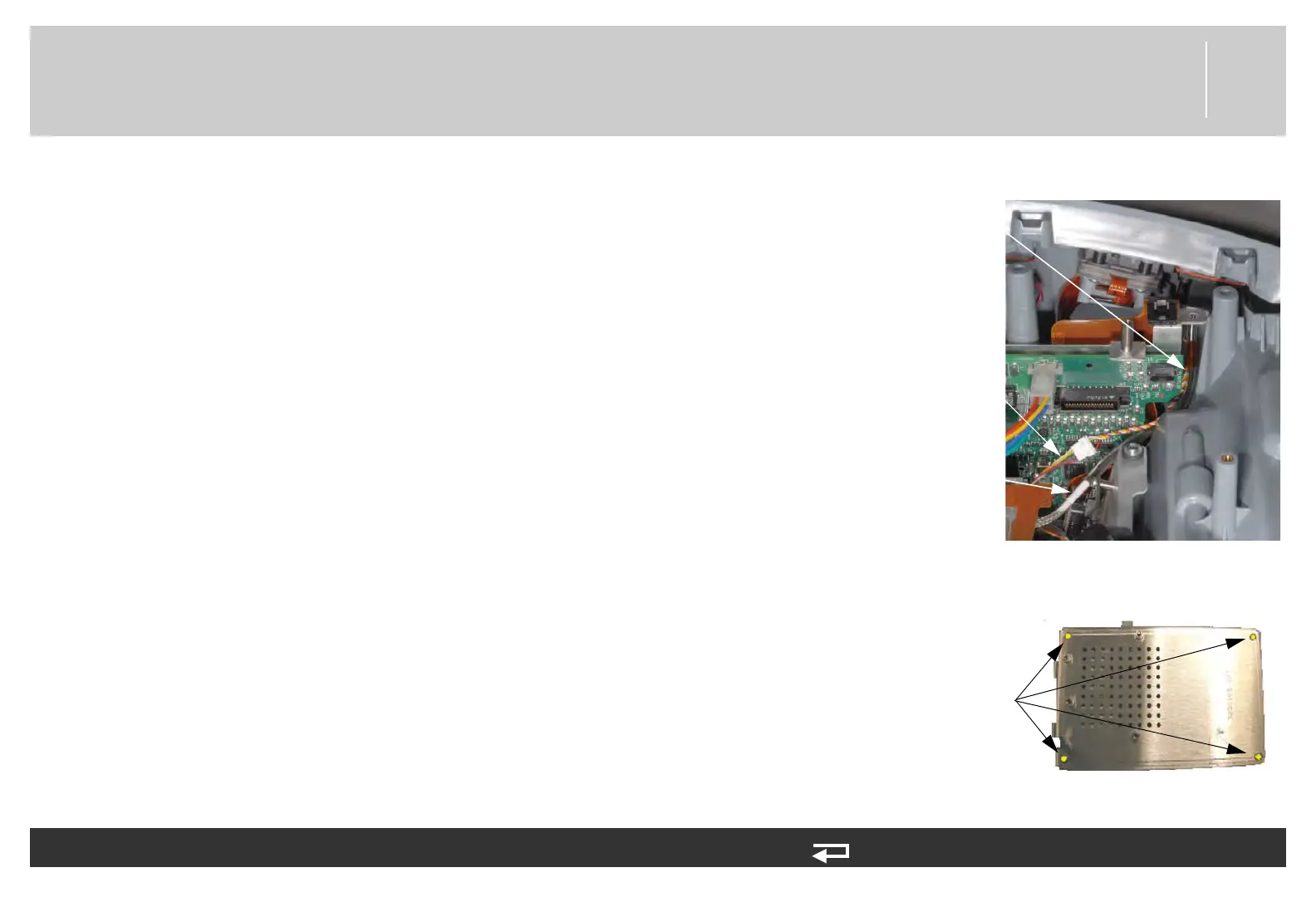

Figure 8.88—CO2 tubing and cable routing
cover screws
(4 places)
Figure 8.89—Bracket cover screw locations
