Physio Control LIFEPAK 15 - System;Therapy PCB Assembly Diagrams and Parts Lists

LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
System/Therapy PCB Assembly Diagrams and Parts Lists
Section Menu Section Contents
Back
Index
388
9

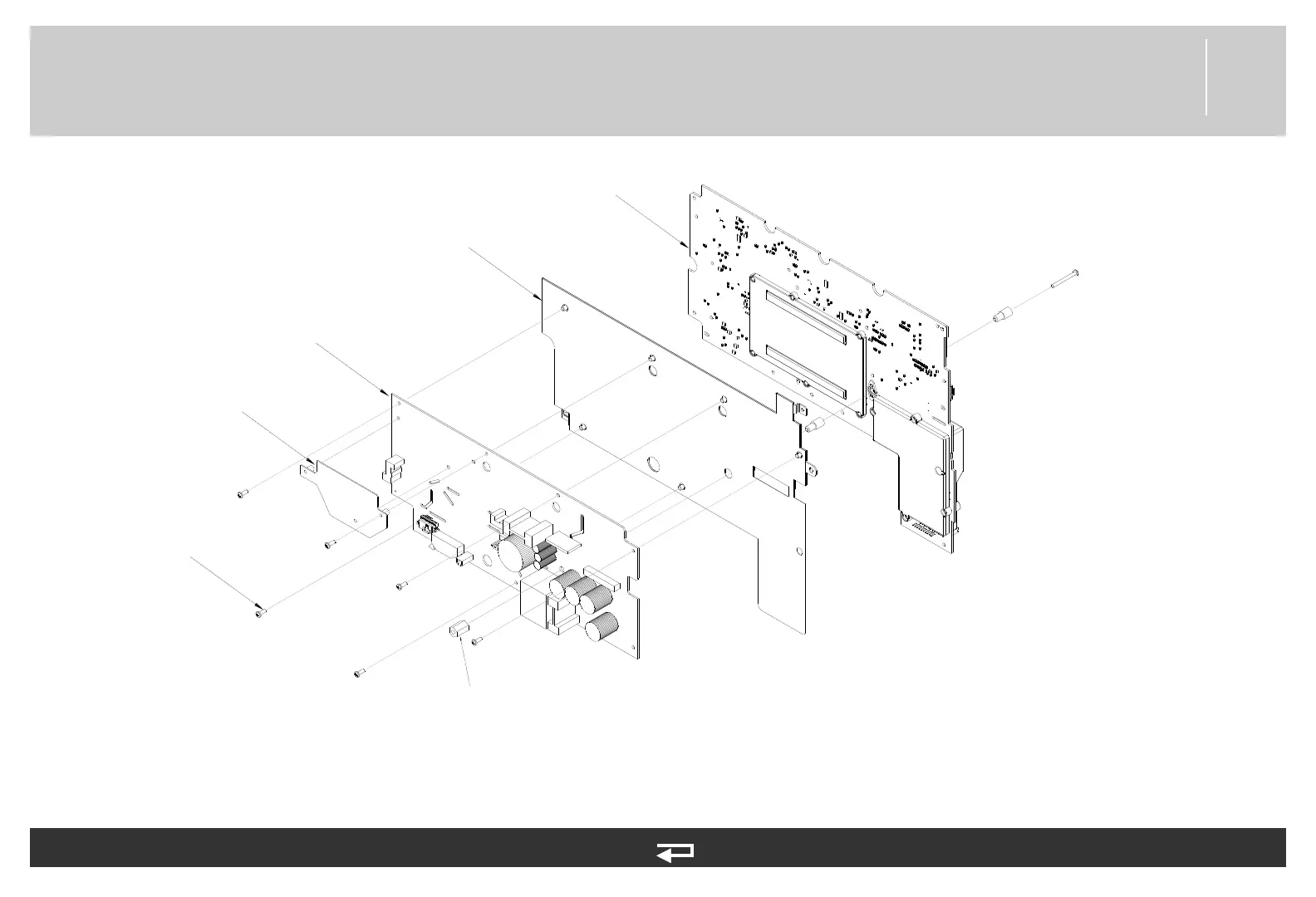

Figure 9.9—System/Therapy PCB assembly view 2 of 2
202253-761 (6x)
3009331-00 Ref
3306311 Ref
3206834 Ref
3207010-004 Ref
3011629-00
