LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
480
9

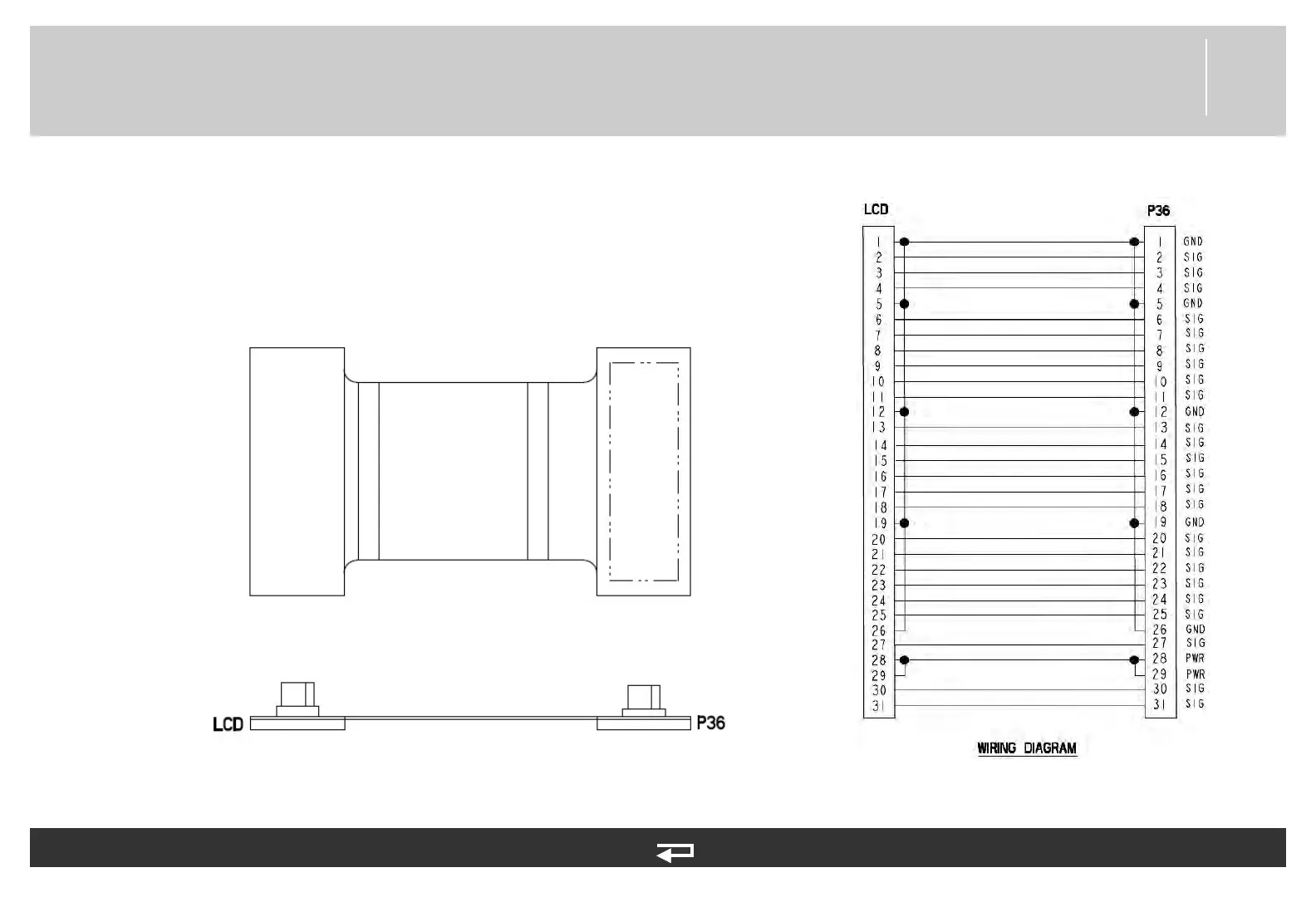

LCD Assembly/Interface PCB Cable
Figure 9.58—Diagram for item W18
Interface PCB (p. 447)
LCD Assembly
(p. 453)
Refer to Figure 9.6: Front Case parts view 2 of 3, p. 379.
See MIN 3206990-001 in table for parts information.
To Next Page
