LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
490
9

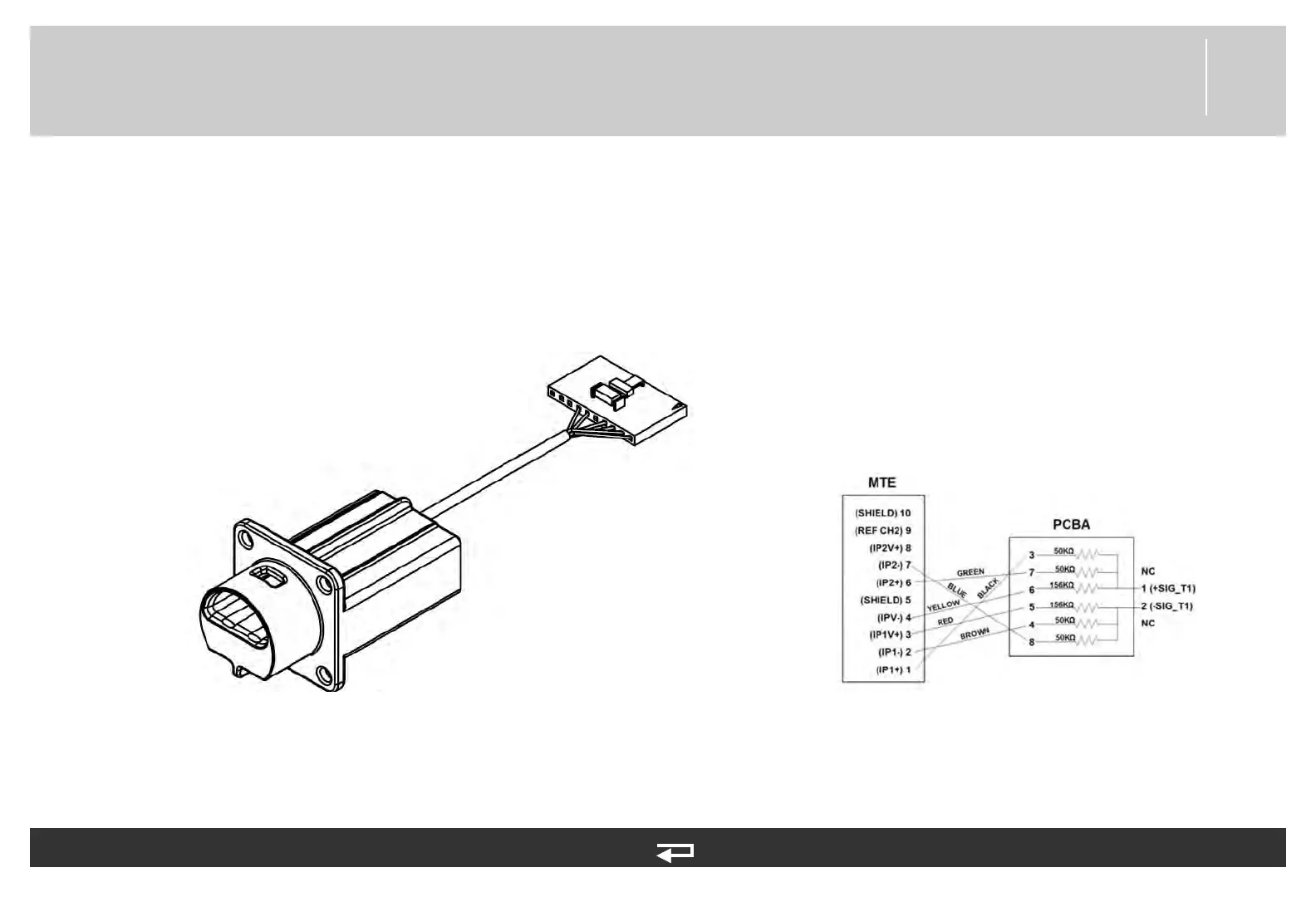

Temperature Connector Cable Assembly
Figure 9.68—Diagram for item W35
Refer to Figure 9.13: Parameter Bezel view 4 of 4
(optional temperature cable assembly), p. 395.
See MIN 3303936-001 in table for parts information.
P7
System PCB (p. 444)
P7
