Section 06: ELECTRICAL
PA1562
43
1. Pry out the rubber seal with a small
screwdriver. Pull on the LED unit and
disconnect it.
2. Reconnect new LED unit, place rubber seal,
and press on it until it is seated in position.
9.4 CLEARANCE, IDENTIFICATION AND
MARKER LIGHTS
The vehicle is equipped with marker,
identification and clearance lights (LED). The
clearance lights are mounted at each corner of
the coach near the top and the identification
lights are in the upper center of rear and front
sections.
The rear clearance and identification lights are
red and the front ones are amber.
The amber marker lights are mounted along the
sides of vehicle.
The side marker light is a sealed unit (LED) and
should be replaced as an assembly in
accordance with the following procedure:
1. Unscrew both “Phillips” light screws, and
then remove the light assembly.
2. Position the new light assembly and install
the “Phillips” screws.
9.4.1 Clearance and Identification Light
Removal and Replacement
The clearance and identification light are sealed
units (LED) and can be replaced in accordance
with the following procedure:
1. Unscrew both “Phillips” light screws, and
then remove the light assembly.
2. Position the new light assembly, and then
install the “Phillips” screws.
9.5 FOG LIGHTS
Optional halogen fog lights can be mounted on
this vehicle to give the driver better visibility in
foggy weather, or to improve the range of vision
just ahead of the coach.
9.5.1 Bulb Removal and Replacement
1. Pull on the release handle located in the front
service compartment, near the door lower
hinge. The bumper will lower gradually.
2. Unscrew the wing nut and pivot assembly
upwards.
3. Unscrew the outer ring. Disconnect the light
unit connection and remove the bulb.
4. Install the new bulb, reconnect the light unit
and replace in its proper position.
CAUTION
During this step, avoid contacting the bulb
with your fingers. This could alter the bulb life.
5. Reinstall the outer ring, pivot the assembly
downwards.
Fasten the wing nut and securely close the
bumper.
10. INTERIOR LIGHTING EQUIPEMENT
10.1 CONTROL PANEL LIGHTING
The instrument gauges and switches mounted
on all control panels are energized whenever
the exterior light switch is pushed to the first
position. A control dimmer located on the
dashboard is used to vary the brightness of the
panel gauges, switches and indicator lights.
The gauge lights, panel lights, switch lights and
indicator lights have a different bulb
arrangement. Thus, the procedure to change a
defective bulb can vary according to the
application.
10.1.1 Switch Lighting
1. Slightly pull the switch with a defective LED
away from the control panel.
2. Disconnect the electric cable from the
switch.
3. To install a new switch, reverse the
procedure (Fig. 33).
NOTE
Switches are lighted by the use of LED. When
lighting on a switch fails, replace defective
switch as a unit.

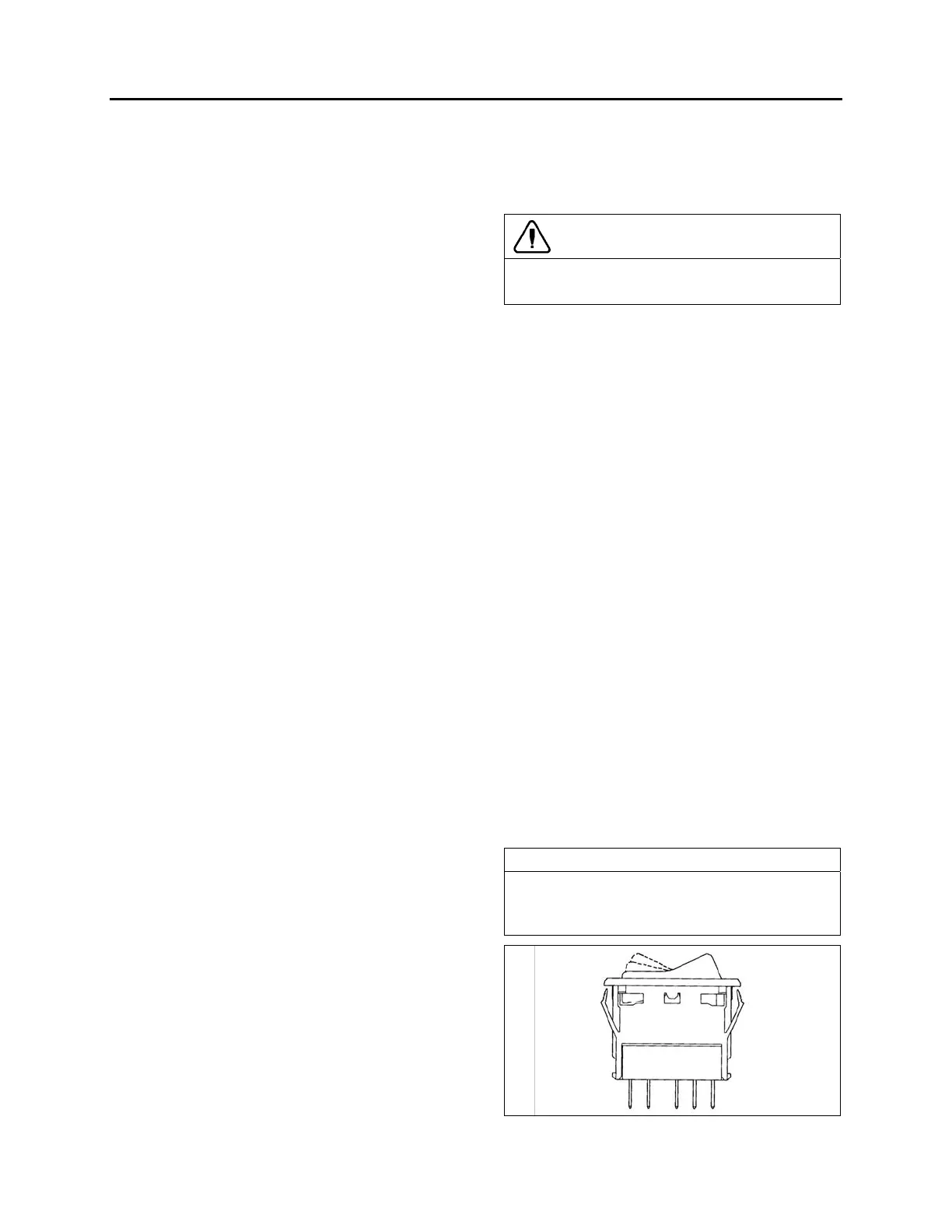

FIGURE 32: SWITCH 06321
