SECTION 01: ENGINE
PA1562
47
2.16 POWER PLANT ASSY. INSTALLATION
To install a power plant assembly, follow the
same procedure as in "Power Plant Assembly
Removal" except in reverse order, then proceed
with the following:
1. Torque the power plant cradle mounting
bolts to 190 lbf-ft (255 Nm).
2. If fan drive has been removed, reinstall and
align as per Section 05, COOLING
SYSTEM, under "FAN DRIVE
ALIGNMENT".
3. Refill cooling system with saved fluid (refer
to Section 05, COOLANT SYSTEM).
4. Once engine fuel system has been drained,
it will aid restarting if fuel filters are filled with
fuel oil (refer to Section 03, FUEL SYSTEM).
5. Start engine for a visual check. Check fuel,
oil, cooling, pneumatic and hydraulic system
connections for leakage. Test operation of
engine controls and accessories.
2.17 JAKE BRAKE
Refer to both "The Jake Brake Troubleshooting
and Maintenance Manual" and "Installation
Manual for Model 790 Engine Brakes" for
troubleshooting and installation procedures.
They are annexed at the end of this section.
2.18 ENGINE MOUNTS
The power plant assembly is mounted to the
cradle by means of rubber mounts.
Two rubber mounts are used at the front of the
engine while two others are mounted on each
side of the flywheel housing (Fig. 25).
It is recommended that new rubber mounts be
installed at each major overhaul.

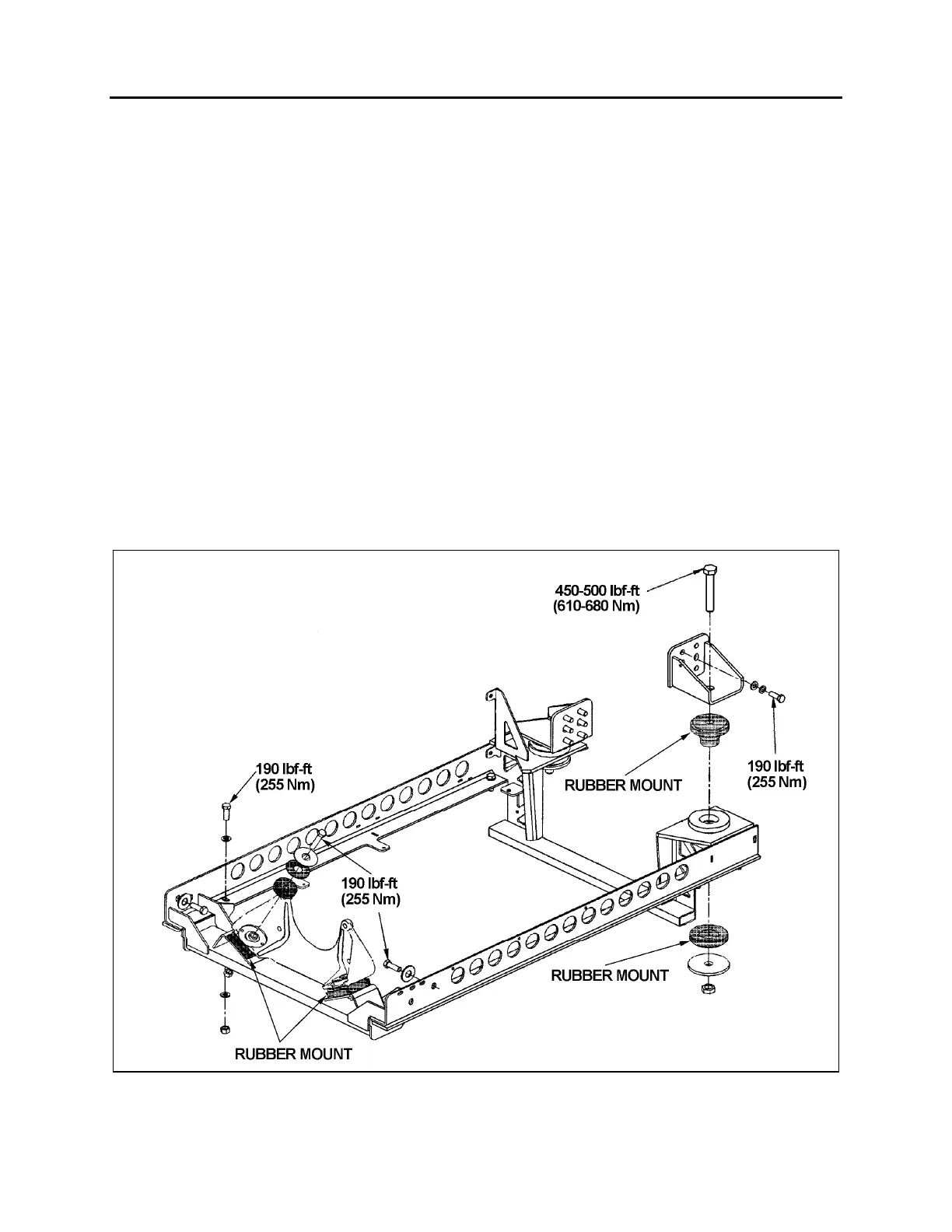

FIGURE 25: DDC SERIES 60 POWER PLANT CRADLE INSTALLATION 01140
