PREVOST X3-45 Multiplex User Manual

SECTION 01: ENGINE
PA1562
19

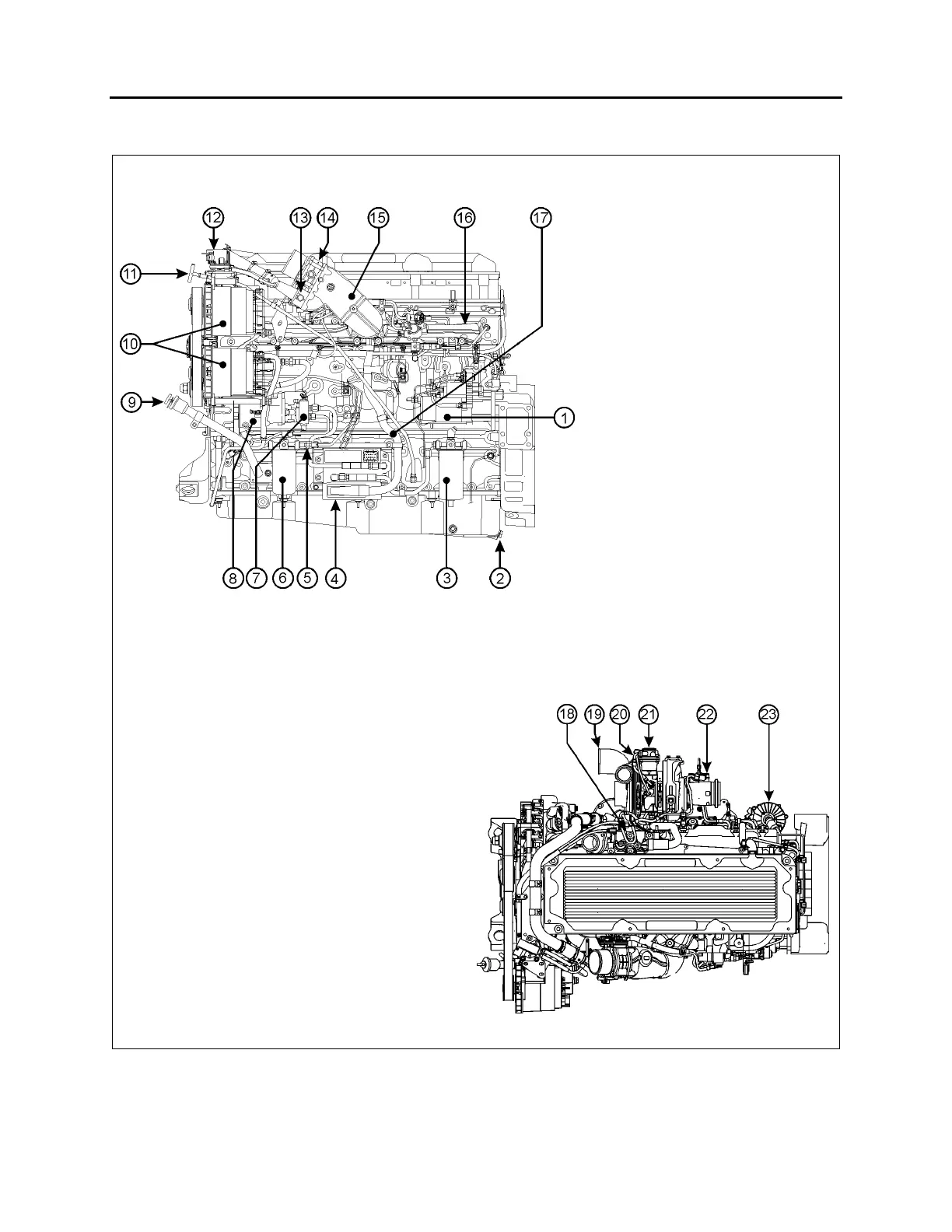

2.3 ENGINE OVERVIEW
1- Starter motor
2- Oil pan drain plug
3- Primary fuel-filter/water-
separator
4- MCM (DDEC VI Electronics)
5- Secondary fuel filter shutoff
valve
6- Secondary fuel filter
7- Fuel pump
8- Air compressor
9- Engine oil filling tube
10- Bosch alternators (2)
11- Engine oil dipstick
12- EGR delta pressure sensor
13- EGR valve
14- Intake throttle
15- EGR mixer
16- Intake manifold
17- Engine Harness
18- Thermostat housing
19- Turbo compressor outlet
20- Actuator coolant return line
21- Electrically controlled actuator
22- HC doser
23- Closed-crankcase breather/oil separator

PREVOST X3-45 Multiplex Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Horsepower	500 hp
GVWR	54, 000 lbs
Height	146 in
Sleeping Capacity	Varies based on floor plan
Water Capacity	Varies based on floor plan
