PREVOST X3-45 Multiplex User Manual

English 5

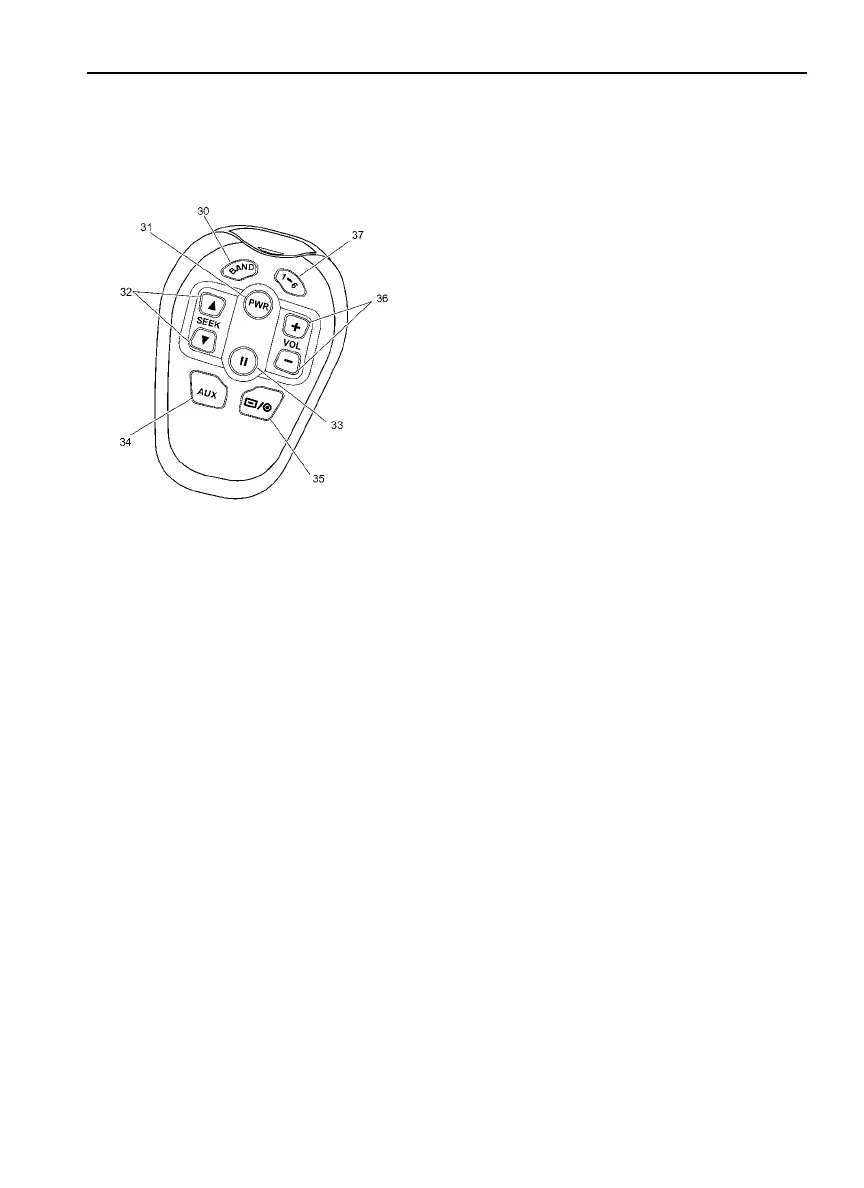

Remote Control Quick Reference Guide
W3007748
Fig. 3
30. "Band" Button:
•
Radio: Select between FM1,
FM2, FM3 (Mid radio only), AM,
Weather band, and Satellite radio
(Mid radio only)
31. "PWR" Button:
•
General: Turns the Radio On and
Off
32. "Seek" Buttons:
•
Radio: Seek
•
CD/USB : Next or previous track
33. "Mute / Pause" Button:
•
General: Mute or Pause the
source of audio
34. "Aux" Button:
•
Not used for Base radio functions
•
Source: Select between USB,
iPod, Aux.
35. "CD Select" Button:
•
CD: Select CD
36. "Vol + / Vol ?" Button:
•
Adjust the volume up and down
37. Preset 1 to 6:
•
Radio: Select a Preset Station

PREVOST X3-45 Multiplex Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Horsepower	500 hp
GVWR	54, 000 lbs
Height	146 in
Sleeping Capacity	Varies based on floor plan
Water Capacity	Varies based on floor plan
