PREVOST X3-45 Multiplex User Manual

Repair and Testing Instructions for T1 Page 21
Alternator 0120 689 552 Edition 001
All rights rest with Robert Bosch Corp, including patent rights. All rights of use of reproduction and publication rest with R. B. Corp.
UA/ASV 04.12.98 T1ALTFinal.DOC
9.9 Dampening Resistor Testing and Removal
1. The W Terminal incorporates a dampening resistor. Using a Multimeter MMD 302, connect one lead to the
exterior portion of the W terminal and connect the other lead to the other side of the W Terminal. The
Multimeter should read between 3.1 and 3.5 k (kilohm). If the resistance is above or below this range, the
W terminal is to be replaced as an assembly. (Figure 15)
2. Loosen the nut retaining terminal W to the collector end shield.
3. Remove terminal W.
9.10 Removal of Collector End Shield Bearing and Seal
1. Insert extractor KDLJ 6009 (Bosch Number 0 986 618 121) into bearing.
2. Screw threaded rod KDAW 9995/14 (Bosch Number 0 986 618 214) into extractor KDLJ 6009.
3. Slide the receiver cup KDAW 9995/0/5 (Bosch Number 0 986 619 250) onto threaded rod.
4. Screw on the handle, rotate until the bearing, and seal come out of the collector end shield. (Figure 16)

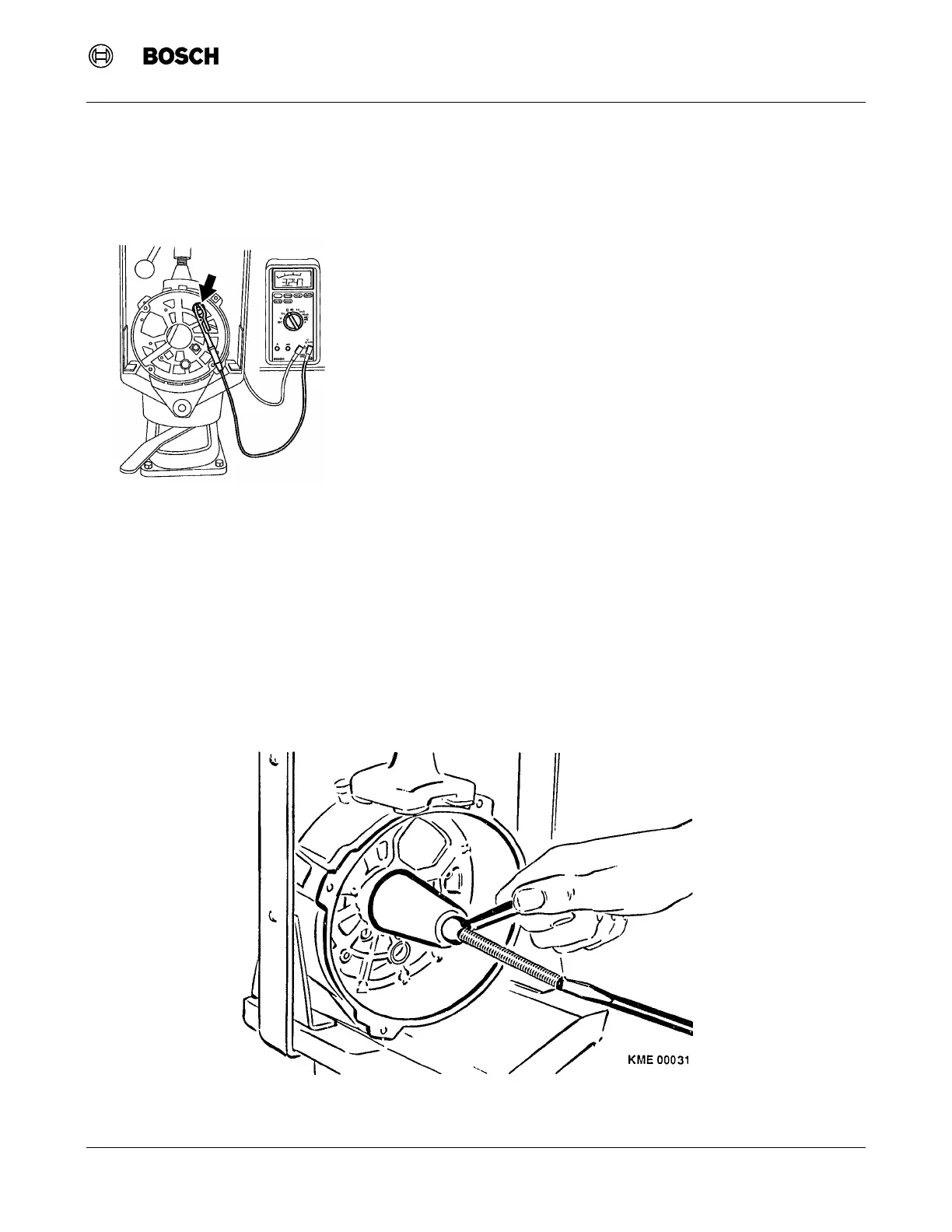

Figure 15 Testing of W Terminal Dampening Resistor
Figure 16 Bearing and Seal Removal
