PREVOST X3-45 Multiplex User Manual

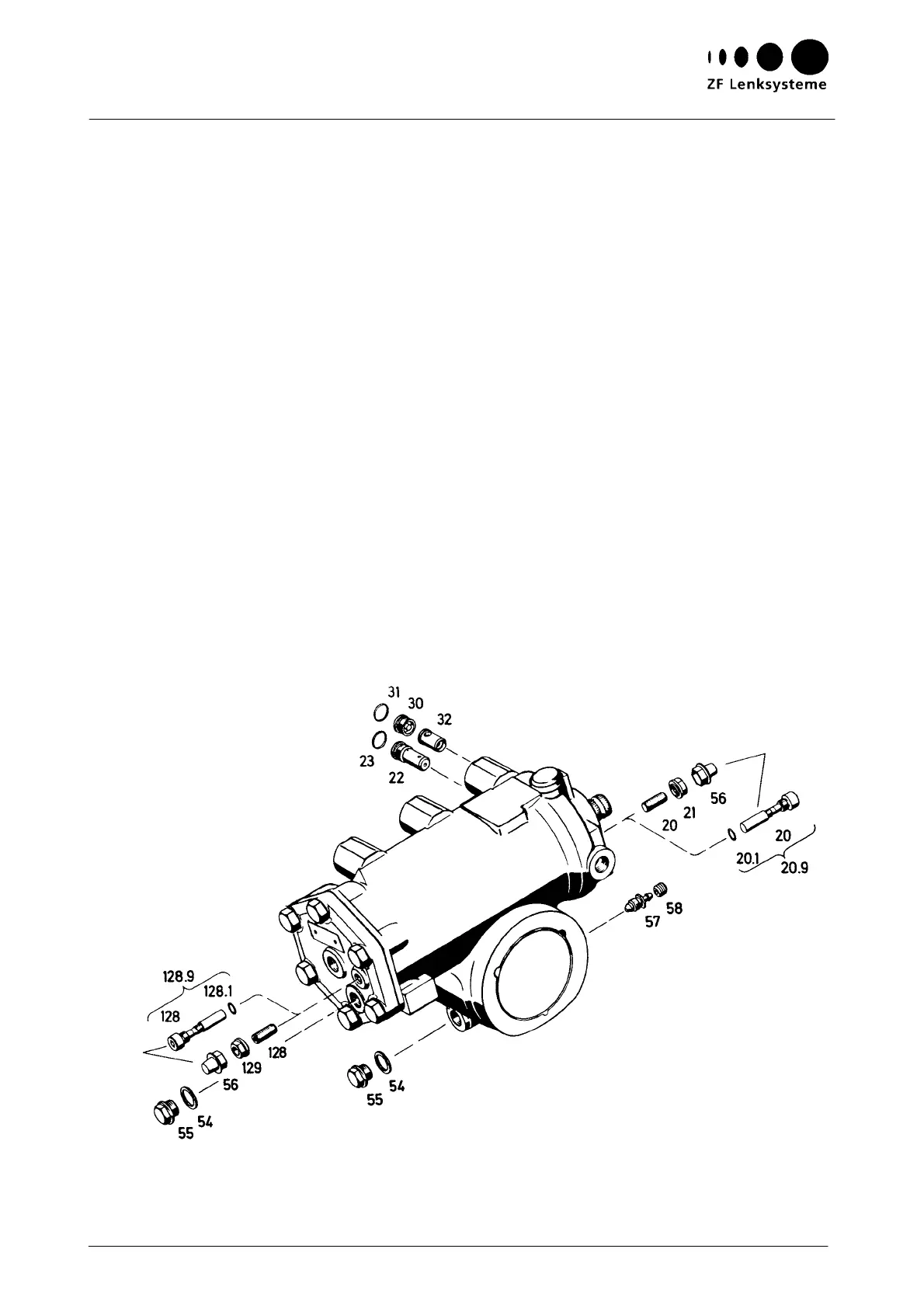

Key to Numbers in Figures and Exploded Drawing
46 Instructions on Design, Operation, Maintenance and Inspection
IX. Key to numbers in figures and exploded drawing
20 Set screw/screw
2
0.1 O ring
20.9 Screw
21 Collar nut
22 Valve insert
23 O ring
30 Screw
31 O ring
32 Valve insert
54 Sealing ring
55 Screw plug
57 Bleeder
128 Set screw/screw
128.1 O ring
128.9 Screw
129 Collar nut
