5. Unscrew engine supply and return lines
from fuel tank connection-panel, identify
them for reinstallation.
6. Disconnect electrical wiring from tank on
connection plate.
DANGER
Before removing the bolts securing the tank
support to the frame, make sure the tank is
supported adequately. Failure to do so could
result in injury as well as damage to the tank.
7. From under the vehicle, on R.H. side,
unscrew the 4 bolts (2 in front, 2 in back)
retaining the tank support to the frame.
8. From under the vehicle, on the L.H. side,
unscrew the 2 bolts (1 in front, 1 in back)
retaining the tank support to the frame.
9. Carefully remove tank from under the
vehicle.
6.2 TANK INSTALLATION
To install tank, simply reverse the "Tank Removal"
procedure.

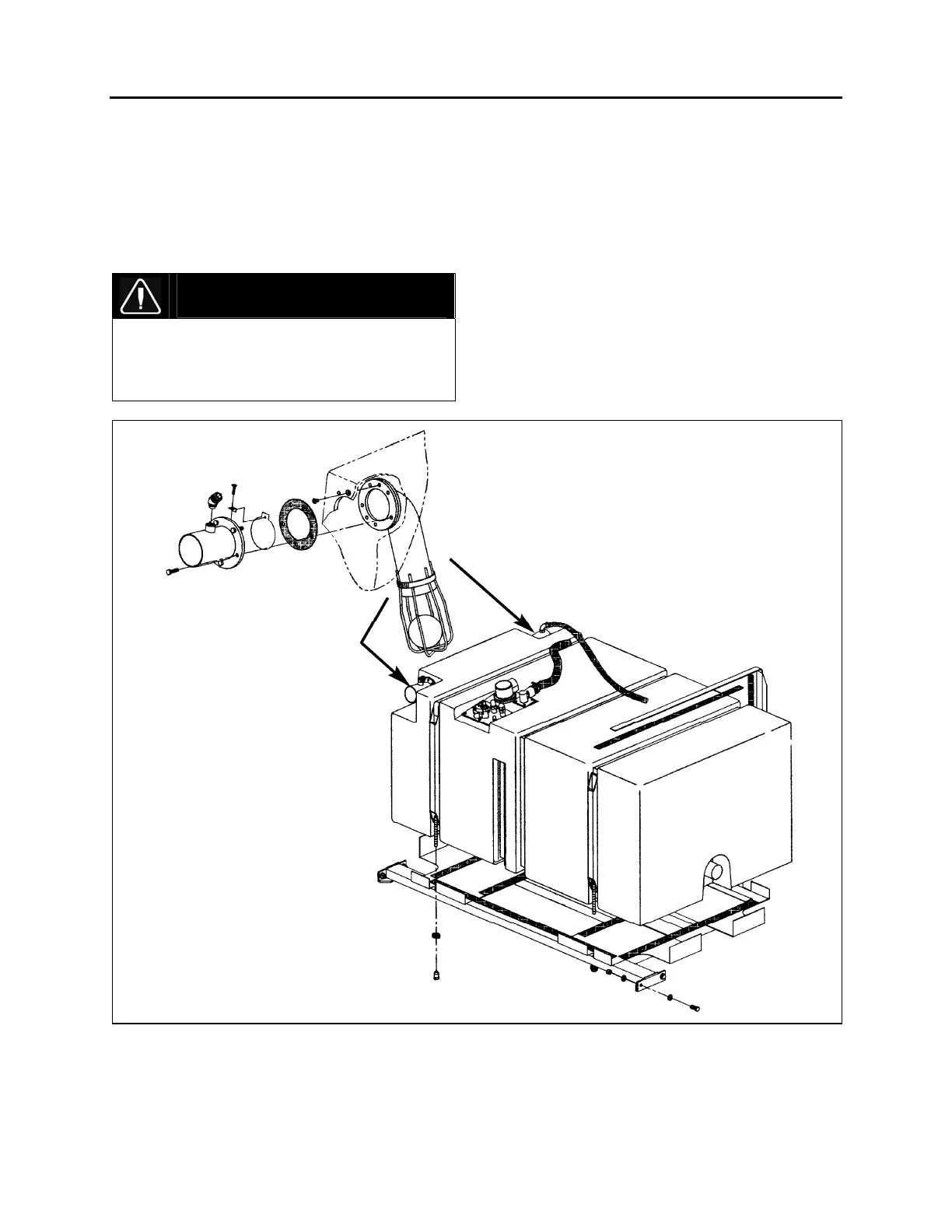

FIGURE 17: 208 US GAL. FUEL TANK 03063
