PREVOST X3-45 Multiplex User Manual

Section 07: TRANSMISSION
PA1562
26
10. ZF-ASTRONIC TRANSMISSION SYSTEM
FAULTS AND ERROR MESSAGES
10.1 SYSTEM FAULTS (ERROR MESSAGES)
07107

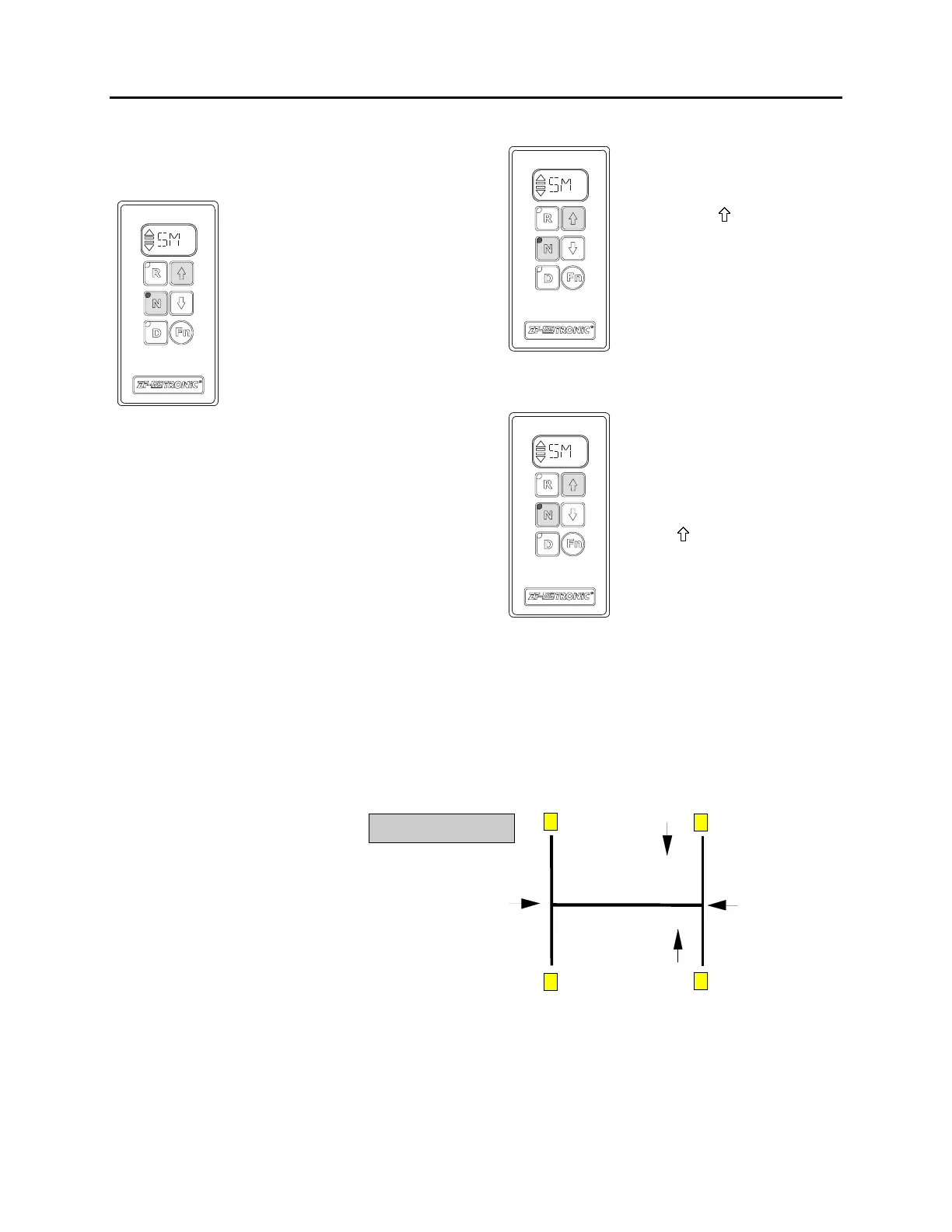

If the “SM” symbol appears in
the display, a system error has
occurred.
• Stop the vehicle
• Vehicle may no longer be
driven
Error messages and the reactions resulting from
these errors can be deleted with the vehicle at a
standstill and the “Ignition OFF”. (Wait until the
display goes out). If the display does not go out
once the ignition has been turned “OFF”, set the
battery master switch to the OFF position.
Switch the ignition back on. If the error message
is still in place, the transmission has to be
repaired. The transmission is inoperative. The
vehicle will have to be taken to a service point.
The error number(s) must be specified when the
service point is contacted.
Calling up error numbers
07107
- Switch on ignition
- Depress “N” key
- Hold down “
” key
* One or more error numbers
appear on the display. These
correspond to the errors
presently active in the
system.
Calling up error numbers from the error
memory:
07107
- Switch on ignition
- Press “N” key and at the
same time depress the
foot-operated brake
- Hold down the foot-operated
brake and depress and hold
down “
” key
* The errors stored in the
transmission ECU are shown
on the display one after
another.
ERROR CODES
Remark to titles in table:
ZF fault number: defined by ZF.
Display SM-Symbol : (0=NO, 1=YES) Display shows “SM“(severe failure)
Warning lamp : (0=NO, 1=YES) Telltale panel warning lamp “check trans“(less severe failure)
Shift schemes of transmissions:
10/12-Gear Scheme
Y5
1. R
2
1
3
Y4
Y6
Y7
Y2 Splitter K2
Y3 Splitter K1
Y8 Range (GP) low
Y9 Range (GP)
