PREVOST X3-45 Multiplex User Manual

Section 06: ELECTRICAL
PA1562
14

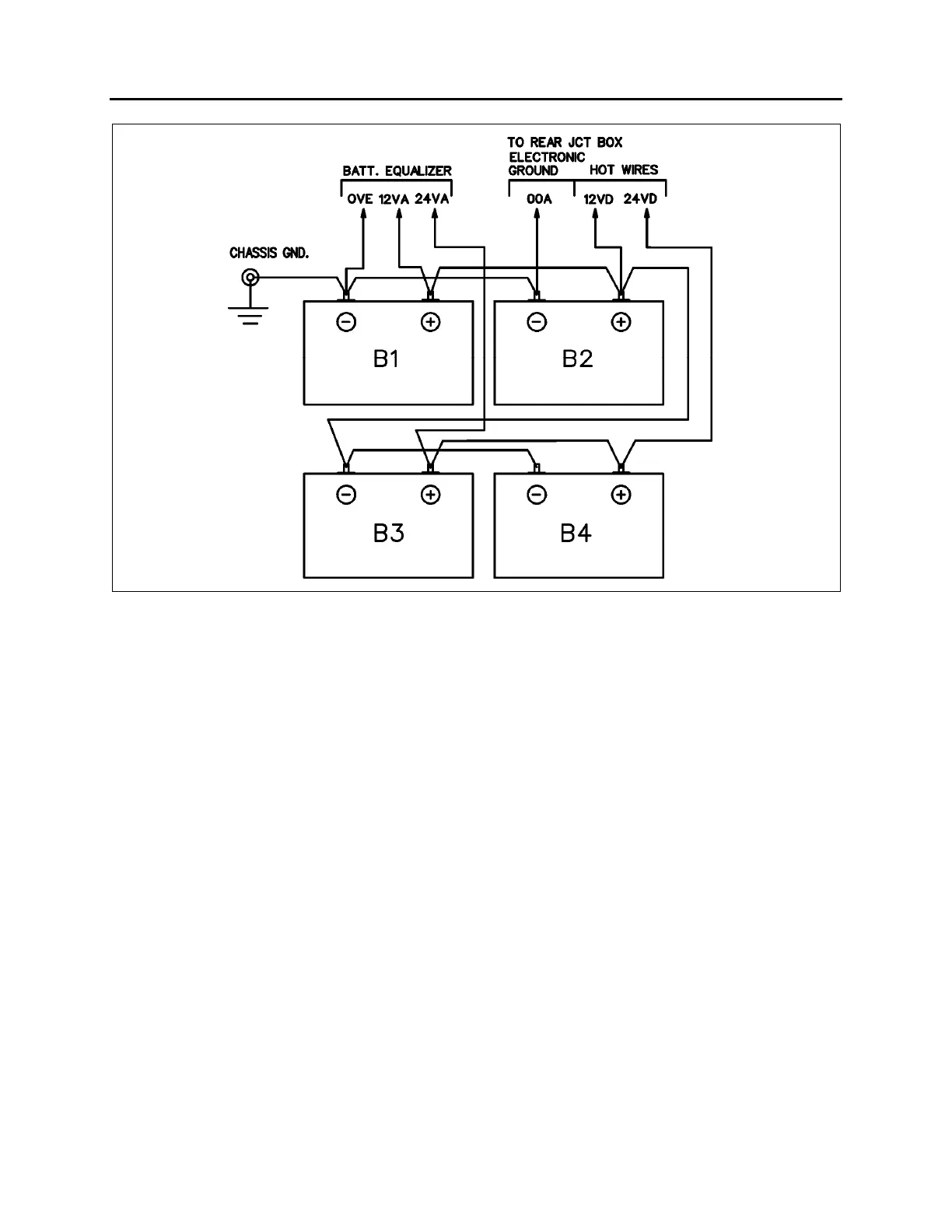

FIGURE 11: BATTERY CONNECTIONS 06636
3.1 BATTERY DISCHARGE PROTECTION
To prevent discharge of the batteries when the
engine in not running, some functions are
automatically switched off if the batteries voltage
drops below 24.4 volts for more than 30
seconds. The "BAT" telltale light blinks while this
protection mode is active. Set the ignition key to
the OFF position and then turn the ignition key
to the ON position to reactivate the functions for
a period of 30 seconds before they switch off
again.
If a prolonged use of the functions with the
engine not running is necessary, connect the
battery to a charger.
3.2 MAIN BATTERY RELAYS
Main battery (master) relays (12V and 24V) are
provided for this vehicle. The relays are located
in the rear electrical compartment. The 24-volt
battery relay (R1) engages when ignition key is
in the ON or ACC position and battery master
switch (master cut-out) is flipped ON.
When the main battery relays (R1 & R3) are
turned to the OFF position, all electrical supply
from the batteries is cut off, with the exception of
the following items.
• Battery equalizer check module;
• MCM;
• TCM (World transmission);
• Preheater electronic timer;
• Preheater and water recirculating pump;
• Sedan entrance door;
• Radio memory;
• CECM;
• Cluster memory.
3.3 BATTERY REMOVAL AND
INSTALLATION
The batteries are located in the condenser
compartment.
1. Remove the two quarter turn nuts to remove
the protective cover (Fig. 8)

PREVOST X3-45 Multiplex Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Horsepower	500 hp
GVWR	54, 000 lbs
Height	146 in
Sleeping Capacity	Varies based on floor plan
Water Capacity	Varies based on floor plan
