PREVOST X3-45 Multiplex User Manual

Repair and Testing Instructions for T1 Page 10
Alternator 0120 689 552 Edition 001
All rights rest with Robert Bosch Corp, including patent rights. All rights of use of reproduction and publication rest with R. B. Corp.
UA/ASV 04.12.98 T1ALTFinal.DOC

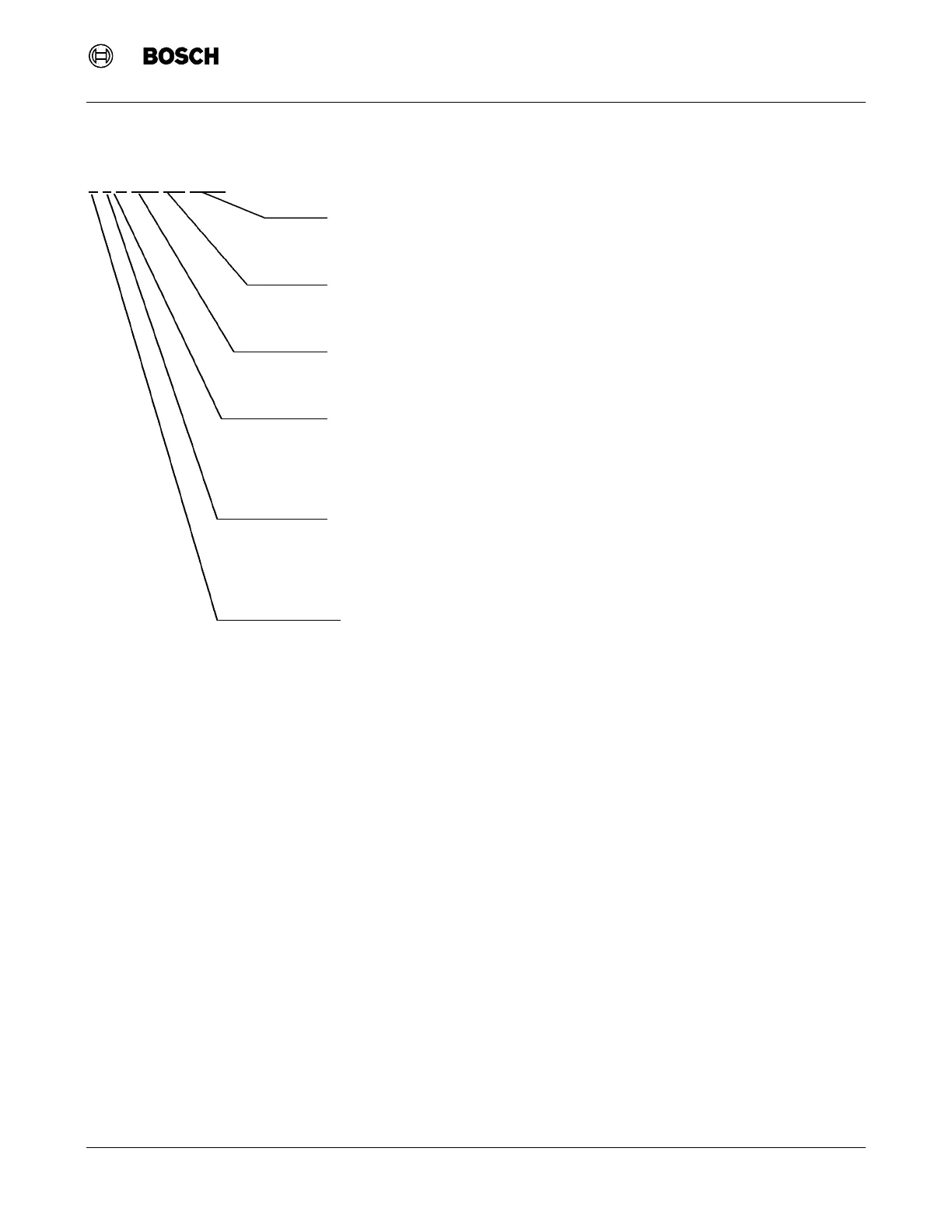

5 Alternator Coding
T 1 R 28V 70/ 140A
Rated current in amps measured at 6000 rpm
Rated current in amps measured at 1500 rpm
Alternator Voltage
Direction of Rotation
(→) Or R Clockwise
(←) Or L Counter Clockwise
(↔) Or RL Multidirectional
1 Claw Pole Alternator
2 Salient Pole Alternator
3 Windingless Rotor Alternator
Outer Diameter of Alternator
G 100 … 109 mm
K 120 … 129 mm
N 130 … 139 mm
T 170 … 199 mm
U more than 200 mm

PREVOST X3-45 Multiplex Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Horsepower	500 hp
GVWR	54, 000 lbs
Height	146 in
Sleeping Capacity	Varies based on floor plan
Water Capacity	Varies based on floor plan
