PREVOST X3-45 Multiplex User Manual

Section 00: GENERAL INFORMATION
5
PA1562

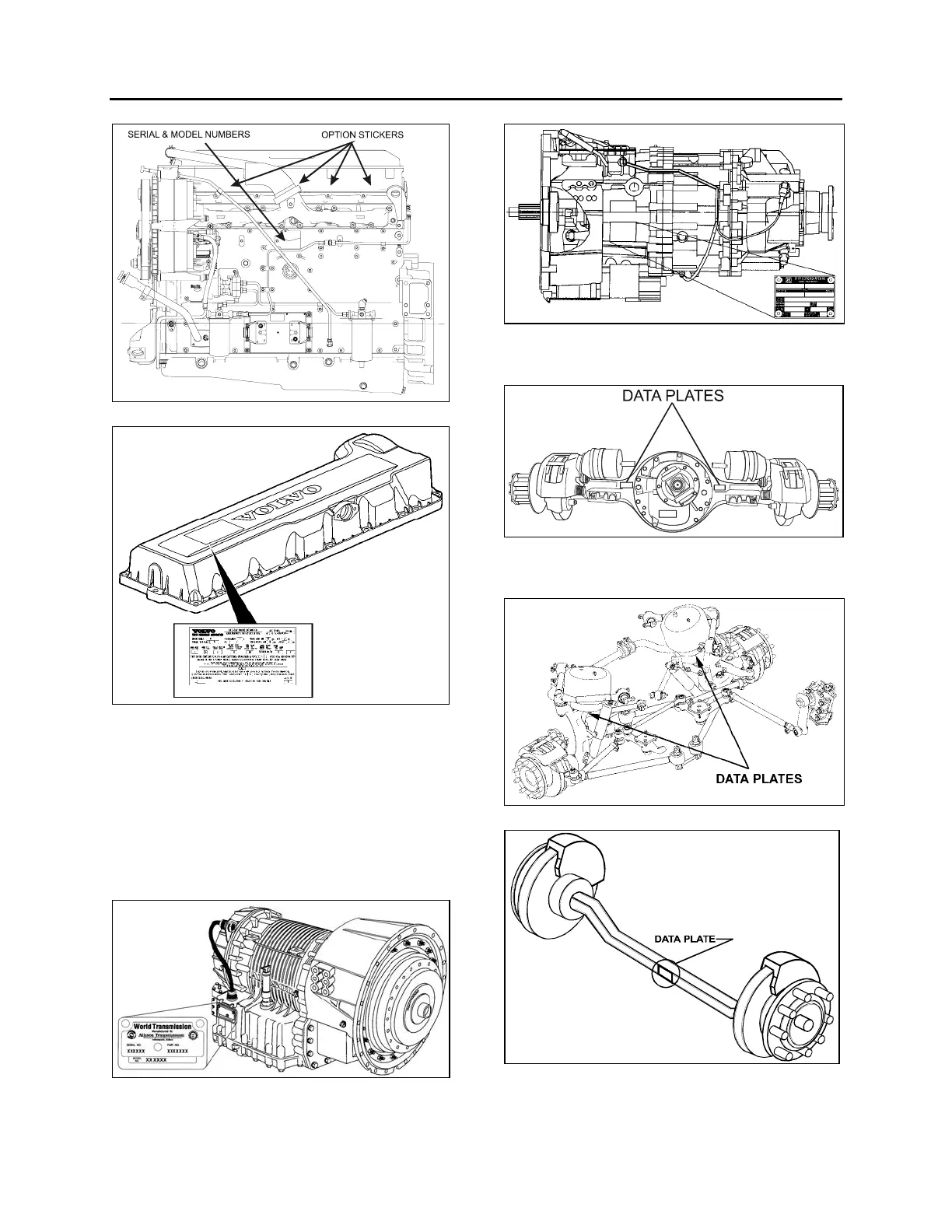

FIGURE 1 : DETROIT DIESEL SERIES 60 00043
FIGURE 2: VOLVO D13 ENGINE DATA PLATE
00052
4.1.2 Transmission
The transmission identification plate is located
on the oil level dipstick side of the transmission
(WT) or on transmission, on the vehicle R.H.
side (ZF) (Fig. 3 & 4). The identification plate
shows the transmission serial number, part
number (assembly number), and model number.
Use all three numbers when ordering parts.
FIGURE 3: ALLISON TRANSMISSION 07076
FIGURE 4: ZF-ASTRONIC TRANSMISSION 00040
4.1.3 Drive Axle
FIGURE 5: TYPICAL SERIAL & MODEL NUMBERS 00007
4.1.4 Front Axle
FIGURE 6: ISS TYPICAL SERIAL & MODEL NUMBERS16136
FIGURE 7: I-BEAM AXLE TYPICAL SERIAL & MODEL
NUMBERS
00008

PREVOST X3-45 Multiplex Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Horsepower	500 hp
GVWR	54, 000 lbs
Height	146 in
Sleeping Capacity	Varies based on floor plan
Water Capacity	Varies based on floor plan
