PREVOST X3-45 Multiplex User Manual

Fig. 9
Servicing Work
Fig. 10
A
B
Instructions on Design, Operation, Maintenance and Inspection
17
5 Setting the hydraulic steering limitation
A setting of the steering limitation is necessary if or when
 a
new or repaired steering gear is fitted or
 new screws (20 and 128) were fitted to the automatically adjusting steering limitation or
 alterations to or adjustments of the front axle were carried out.

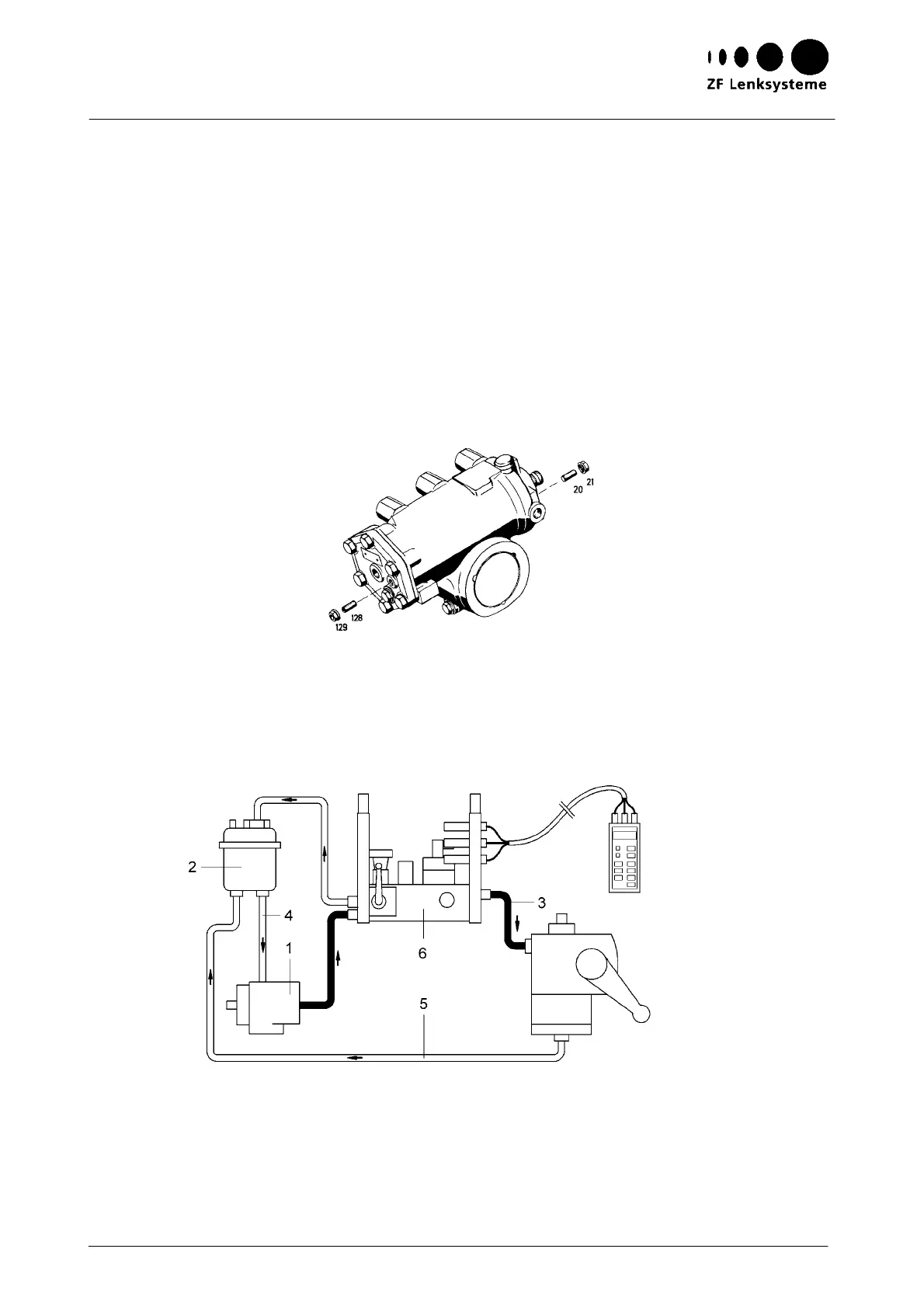

5.1 Hydraulic steering limitation with manual setting (Fig. 9)
Fit a pressure gauge (pressure range up to 250 bar) or tool [1] (ZF Servotest power steering
tester) to the pressure line between the pump and the steering gear (see Fig. 10).
1 Pump
2 Oil tank
3 Pressure line
4 Suction line
5 Return line
6 ZF-Servotest
If the setting takes place at set screw (128) the drop arm will be caused to move in direction “B”
(Fig. 10).
If the setting takes place at set screw (20) the drop arm will be caused to move in direction “A”.

PREVOST X3-45 Multiplex Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Horsepower	500 hp
GVWR	54, 000 lbs
Height	146 in
Sleeping Capacity	Varies based on floor plan
Water Capacity	Varies based on floor plan
