4 Component Replacement
33
Meritor WABCO Maintenance Manual MM-0112 (Revised 07-05)
4 Component Replacem ent
Hazard Alert Messages
Read and observe all Warning and Caution hazard alert messages in
this publication. They provide information that can help prevent
serious personal injury, damage to components, or both.
WARNING
To prevent serious eye injury, always wear safe eye protection
when you perform vehicle maintenance or service.
Release all air from the air systems before you remove any
components. Pressurized air can cause serious personal
injury.
Component Removal and Installation
Valves
ABS Modulator Valves
ATC Valve
RSC Valve
ABS Valve Package (Front or Rear)
Modulator Valves
Relay Valve or Quick Disconnect Valve
—ATC Valve
Sensor Lubricant Specification
Meritor WABCO specifications call for a sensor lubricant with the
following characteristics:
Lubricant must be mineral oil-based and contain molydisulfide.
It should have excellent anti-corrosion and adhesion characteristics,
and be capable of continuous function in a temperature range of
40° to 300°F (40° to 150°C).

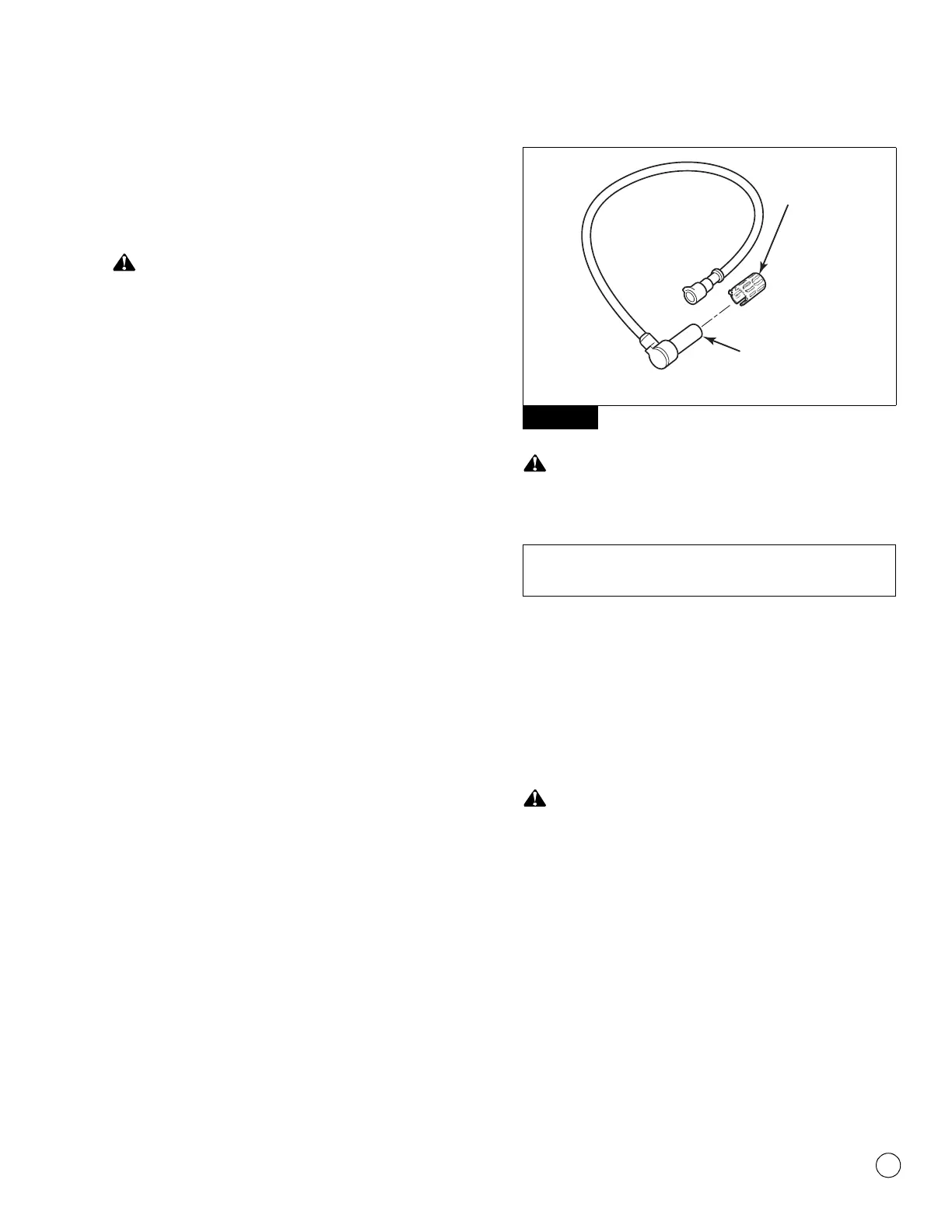

Lubricants approved for use on Meritor WABCO sensors and spring
clips are as follows. Figure 4.1.
Mobilith SHC-220 (Mobil)
TEK 662 (Roy Dean Products)
Staburags NBU 30 PTM (Kluber Lubrication)
Valvoline EP 633
Figure 4.1
CAUTION
Use the following procedures to avoid damage to the electrical
system and ABS/ATC components.
Sensors
NOTE: When replacing the wheel speed sensor, the sensor spring
clip must also be replaced.
Wheel Speed Sensor Removal — Front Axle
To remove the sensor from the front axle:
WARNING
Park the vehicle on a level surface. Block the wheels to
prevent the vehicle from moving. Support the vehicle with
safety stands. Do not work under a vehicle supported only by
jacks. Jacks can slip and fall over. Serious personal injury and
damage to components can result.
1. Place blocks under the rear tires to stop the vehicle from
moving. Apply the parking brake.
2. If necessary, raise the front tires off the ground. Place safety
stands under the axle.
3. Disconnect the fasteners that hold the sensor cable to other
components.
4. Disconnect the sensor cable from the chassis harness.
Figure 4.1
When welding on an ABS- or ABS/ATC-equipped vehicle is
necessary, disconnect the power connector from the ECU.
4004479a
SENSOR
SPRING
CLIP
WHEEL SPEED
SENSOR
