4–Managing Fabric Zoning
Managing the Zoning Database
4-6 59266-01 B
The Configured Zonesets data window uses display conventions for expanding
and contracting entries that are similar to those used by the fabric tree. An entry
handle located to the left of an entry in the tree indicates that the entry can be
expanded. Click this handle or double-click the following entries to expand or
collapse them:
 A zone set expands to show its member zones.
 A zone expands to show its members by device port World Wide Name or
device port Fibre Channel address.
 The alias expands to show its entries.

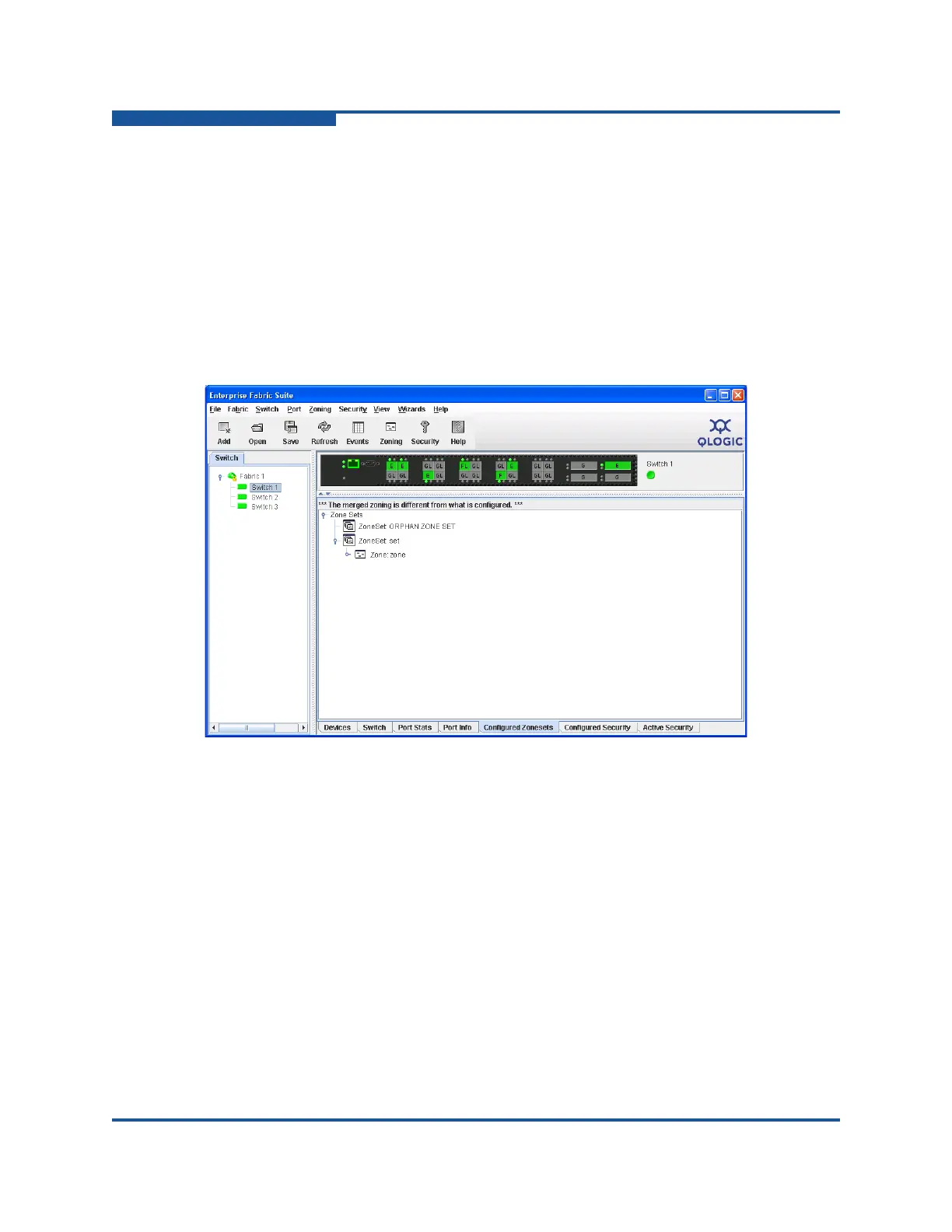

Figure 4-2. Configured Zoneset Data Window
Editing the Zoning Database
Use the Edit Zoning dialog box (Figure 4-3) to edit the zoning database of a
particular switch. To view the Edit Zoning dialog box:
1. Select a switch or a stack in the fabric tree.
2. On the Zoning menu, click Edit Zoning.
3. If you selected a stack and the zoning database is not identical on all
switches in the stack, choose a switch from the Select Source Switch list.
Changes that you make to this switch are distributed to the other switches in
the stack.
