Enterprise Fabric Suite User Interface
1-24 59266-01 B
Tool Bar
The tool bar consists of a row of graphical buttons that provide access to
Enterprise Fabric Suite functions. The tool bar buttons are an alternative method
to using the menus.
The Tool bar options are described in Table 1-4.
Working with Switches and Links
Switch and link icons are selectable and moveable, and serve as access points for
other displays and menus. You select switches and links to display information
about them, modify their configuration, or delete them from the display.
Context-sensitive popup menus are displayed when you right-click on a switch or
link icon, or on the background of the topology display and graphic window.

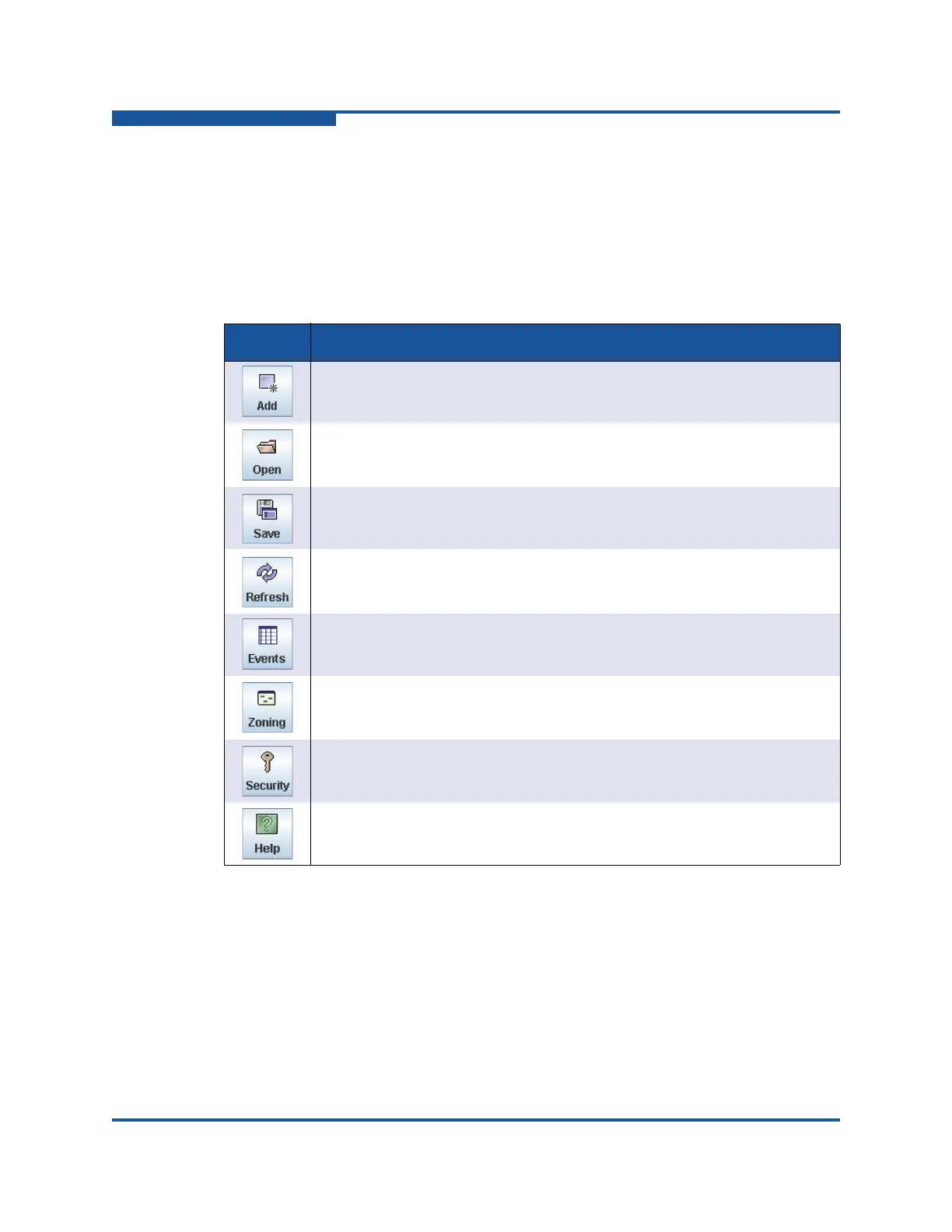

Table 1-4. Tool Bar Options
Button Description
Add Fabric—adds a new fabric to the fabric view
Open View File—opens an existing fabric view file
Save View As—saves the current fabric view to a file
Refresh—updates the topology or faceplate display with current informa-
tion
Event Browser—opens the events browser
Edit Zoning—opens the Edit Zoning dialog box (available only when a
switch or stack is selected on the fabric tree)
Edit Security—opens the Edit Security dialog box (available only on a
secure entry switch)
Help Topics—opens the online help file
