9. Click Close to close the User Account Administration dialog box.

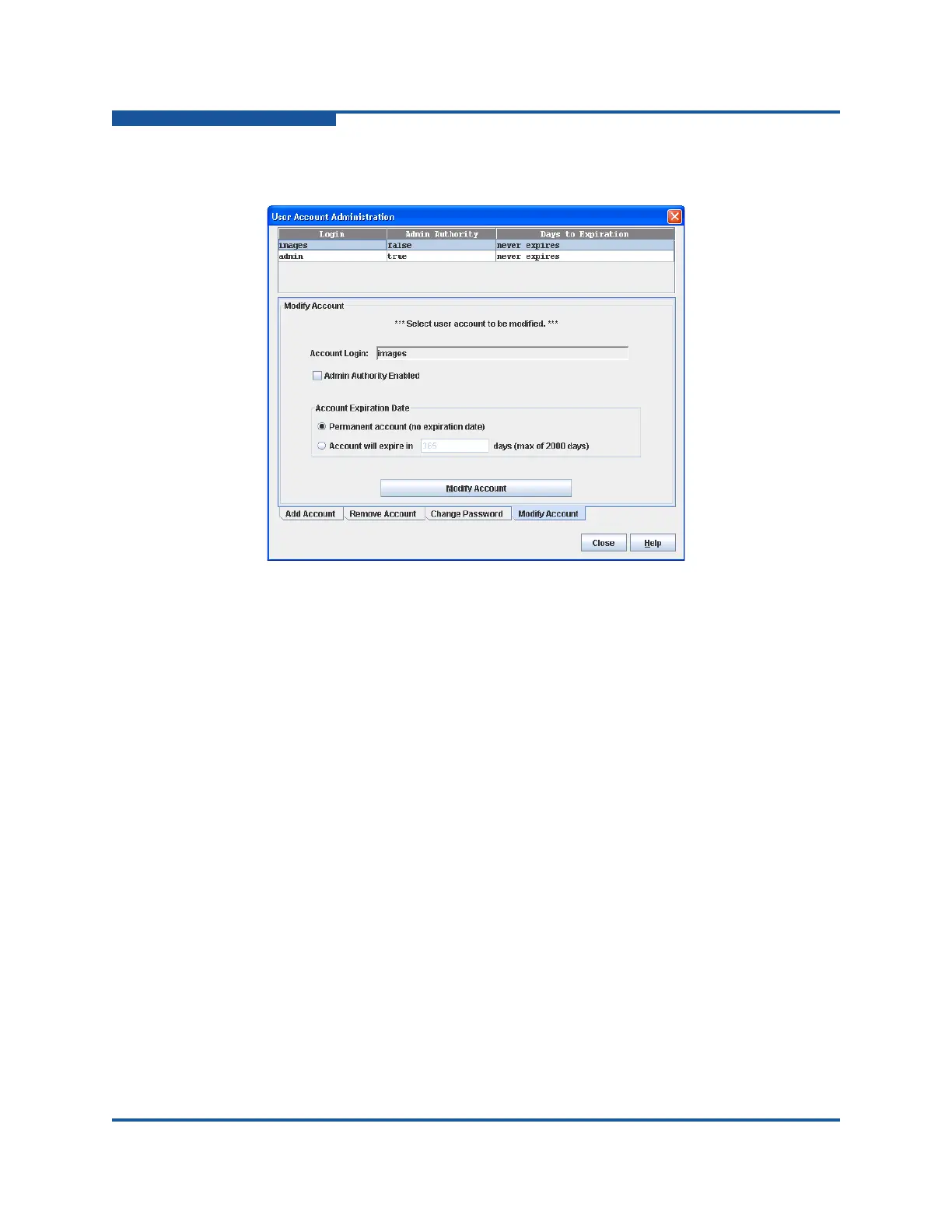

Figure 5-4. User Account Administration Dialog Box—Modify Account
Viewing Switch Information
The faceplate and backplate displays and data windows provide the following
switch information:
 Device and HBA information
 Switch specifications and addresses
 Configuration parameters
 Port information and performance statistics
 Configured zone sets
 Configured and active security
 Link information
 Mouse-overs display popup-like information when you rest the cursor over
key elements, such as ports, and LEDs.
The fabric updates the topology and faceplate displays by forwarding changes in
status to the management workstation as they occur. You can allow the fabric to
update the switch status, or you can refresh the display at any time. To refresh
switch status in the display, do one of the following:
 Click Refresh.
