1–Using Enterprise Fabric Suite
Enterprise Fabric Suite User Interface
59266-01 B 1-13

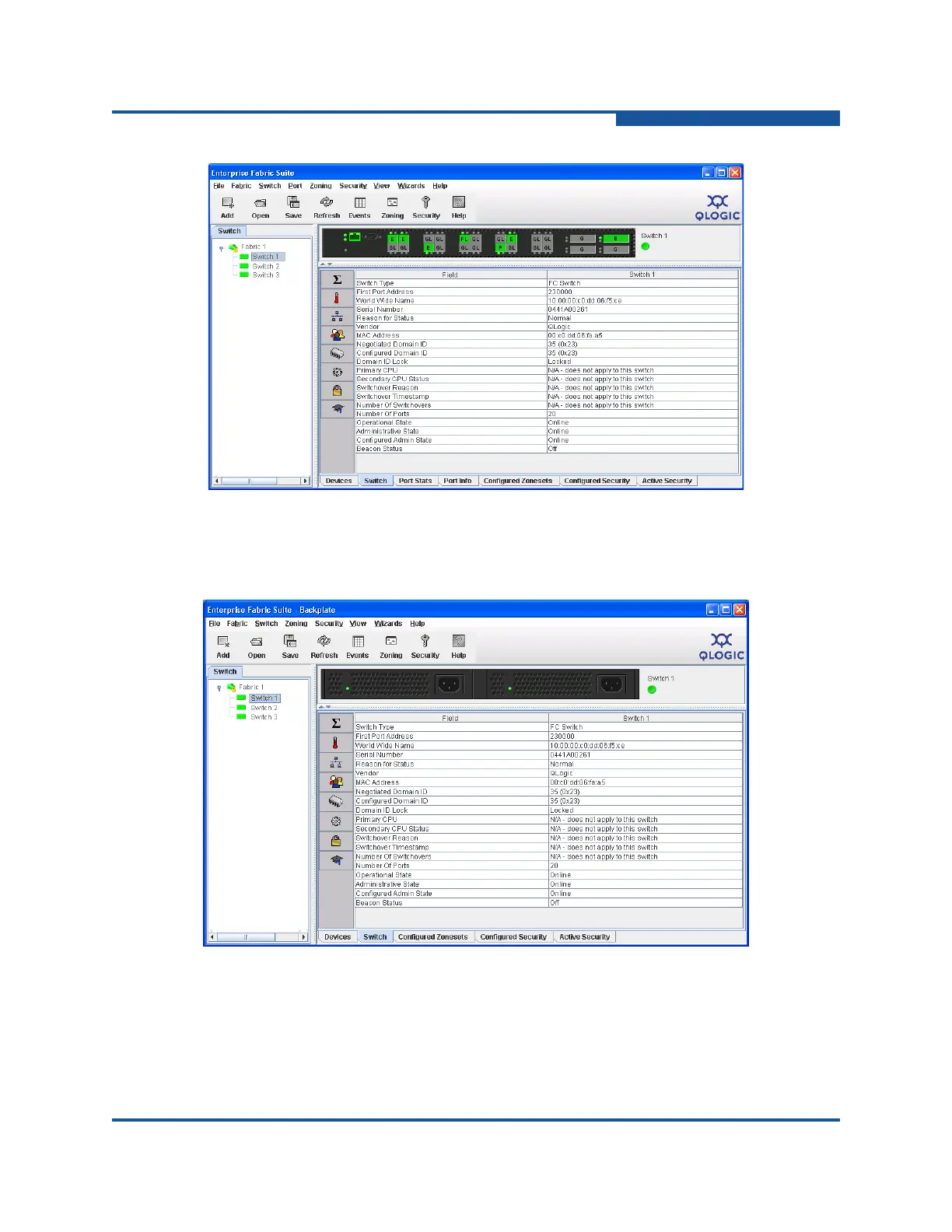

Figure 1-10. Faceplate Display
Figure 1-11 shows the backplate display for a dual power supply Fibre Channel
Switch.
Figure 1-11. Backplate Display
