Qlogic 5800V Series User Manual

6–Managing Ports
Resetting a Port
59266-01 B 6-23

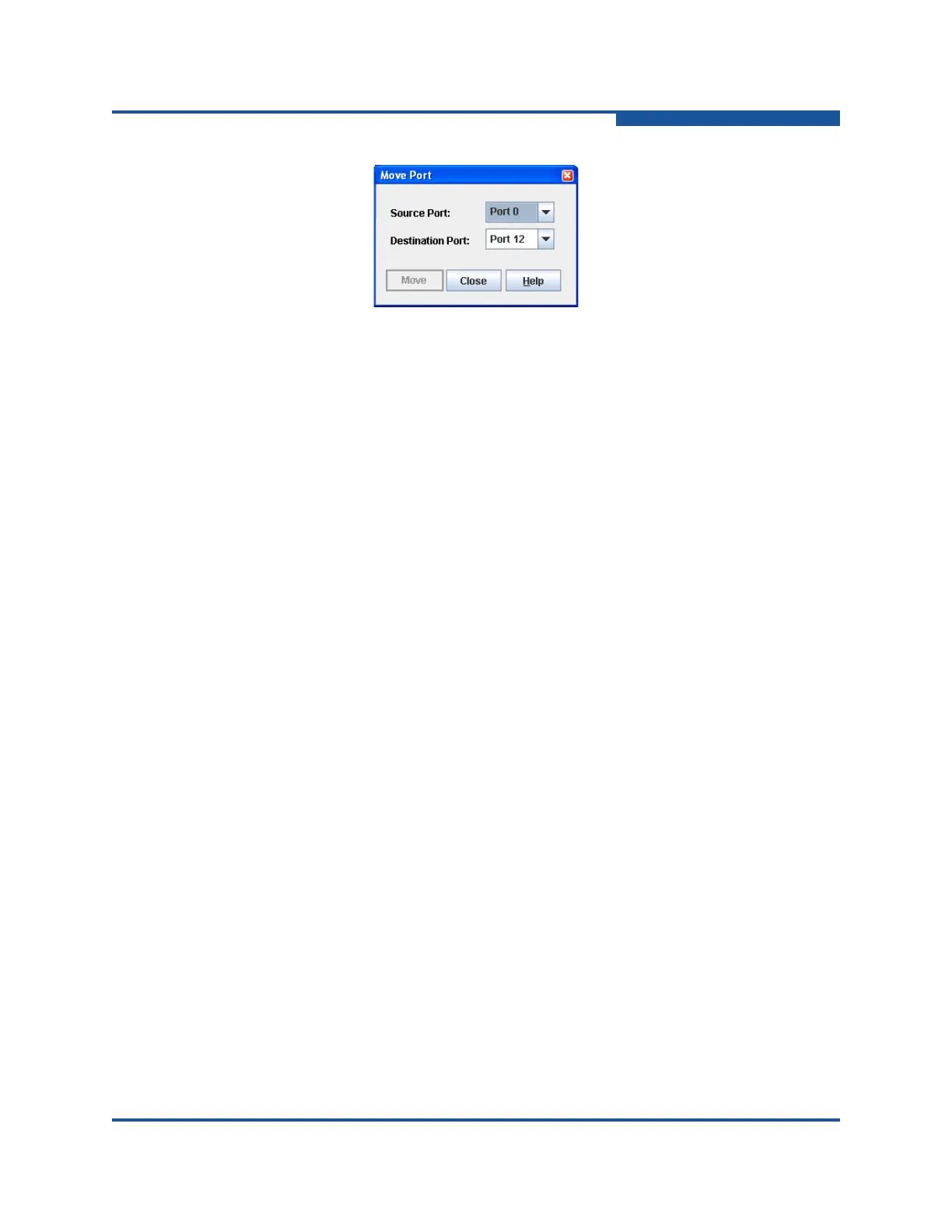

Figure 6-7. Move Port License Dialog Box
Resetting a Port
The Reset Port option reinitializes the port using the saved configuration. To reset
a port:
1. In the faceplate display, select the port(s) to be reset.
2. On the Port menu, click Reset Port.
3. Click Yes to reset the selected port(s).
Testing Ports
You can test a port using the Port Diagnostics dialog box. Only one port can be
tested at a time for each type of test. The Port Diagnostics dialog box (Figure 6-8)
presents the following tests:
 Internal—a disruptive test that verifies port circuitry. The SerDes level test
sends a test frame from the ASIC through the SerDes chip and back to the
ASIC for the selected ports. The port passes the test if the frame that was
sent by the ASIC matches the test frame that was received. This test
requires that the port be in diagnostics mode, and therefore disrupts
communication.
 External—a disruptive test that verifies port circuitry. The SFP level test
sends a test frame from the ASIC through the SerDes chip, through the SFP
transceiver fitted with an external loopback plug, and back to the ASIC for
the selected ports. The port passes the test if the test frame that was sent by
the ASIC matches the test frame that was received. This test requires that
the port be in diagnostics mode.
 Online—a non-disruptive test that verifies communications between the port
and its device node or device loop. The port being tested must be online and
connected to a remote device, and therefore, does not disrupt
communication. The port passes the test if the frame that was sent by the
ASIC matches the frame that was received.
