Qlogic 5800V Series User Manual

6–Managing Ports
Graphing Port Performance
59266-01 B 6-31

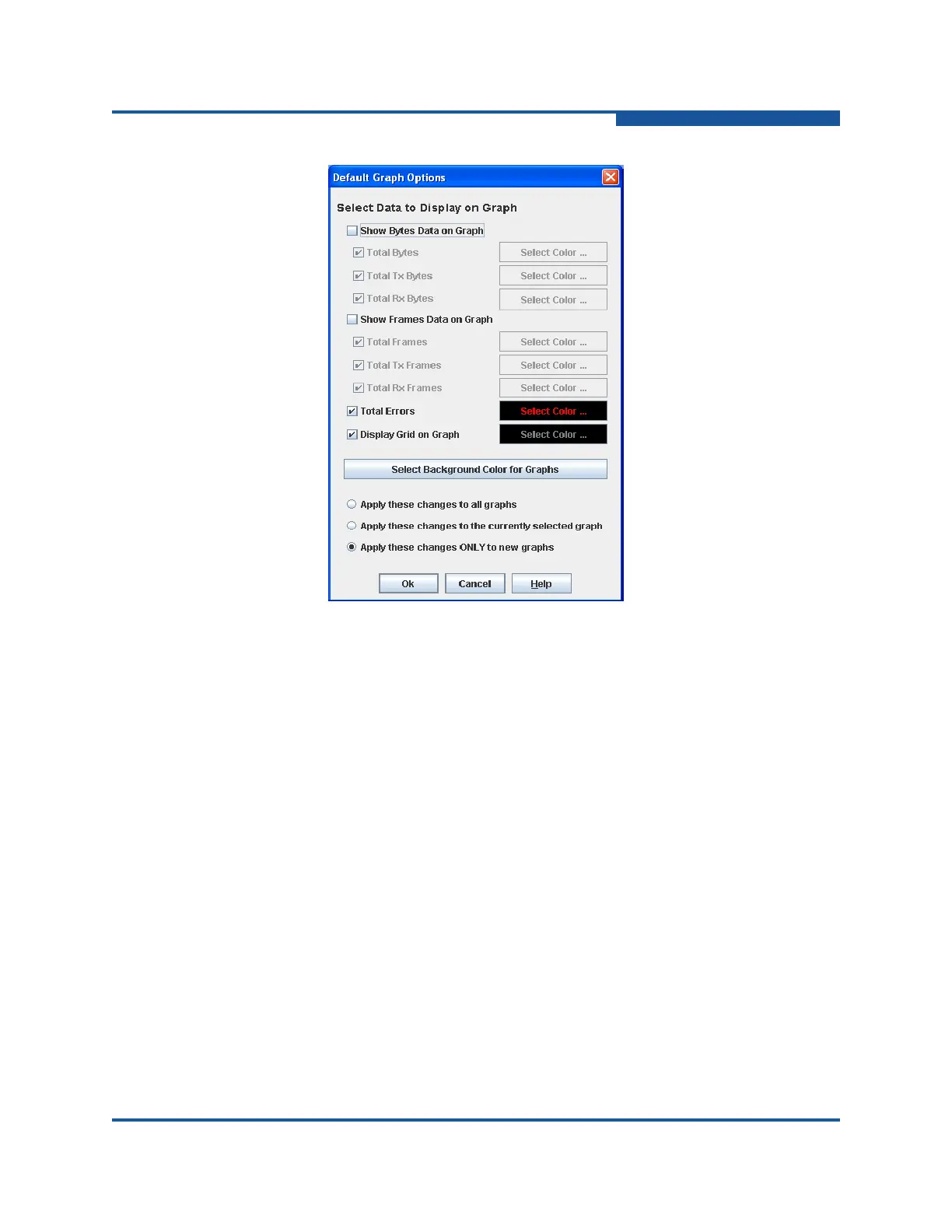

Figure 6-14. Default Graph Options Dialog Box
To modify the graph options:
1. Choose the units for the graph:
 Select the Show Bytes Data on Graph option to plot data in
KBytes/second.
 Select the Show Frames Data on Graph option to plot data in
frames/second.
2. Choose what data type to plot. For example, if you selected Show Frames
Data on Graph in step 1, you can plot one or all of the following.
 Total frames transmitted and received (Total Frames)
 Total frames transmitted (Total Tx Frames)
 Total frames received (Total Rx Frames)
You can also plot total errors by selecting the Total Errors option.
3. Select the Display Grid on Graph option to display the unit grid.
