2–Managing Fabrics
Transparent Router
2-14 59266-01 B

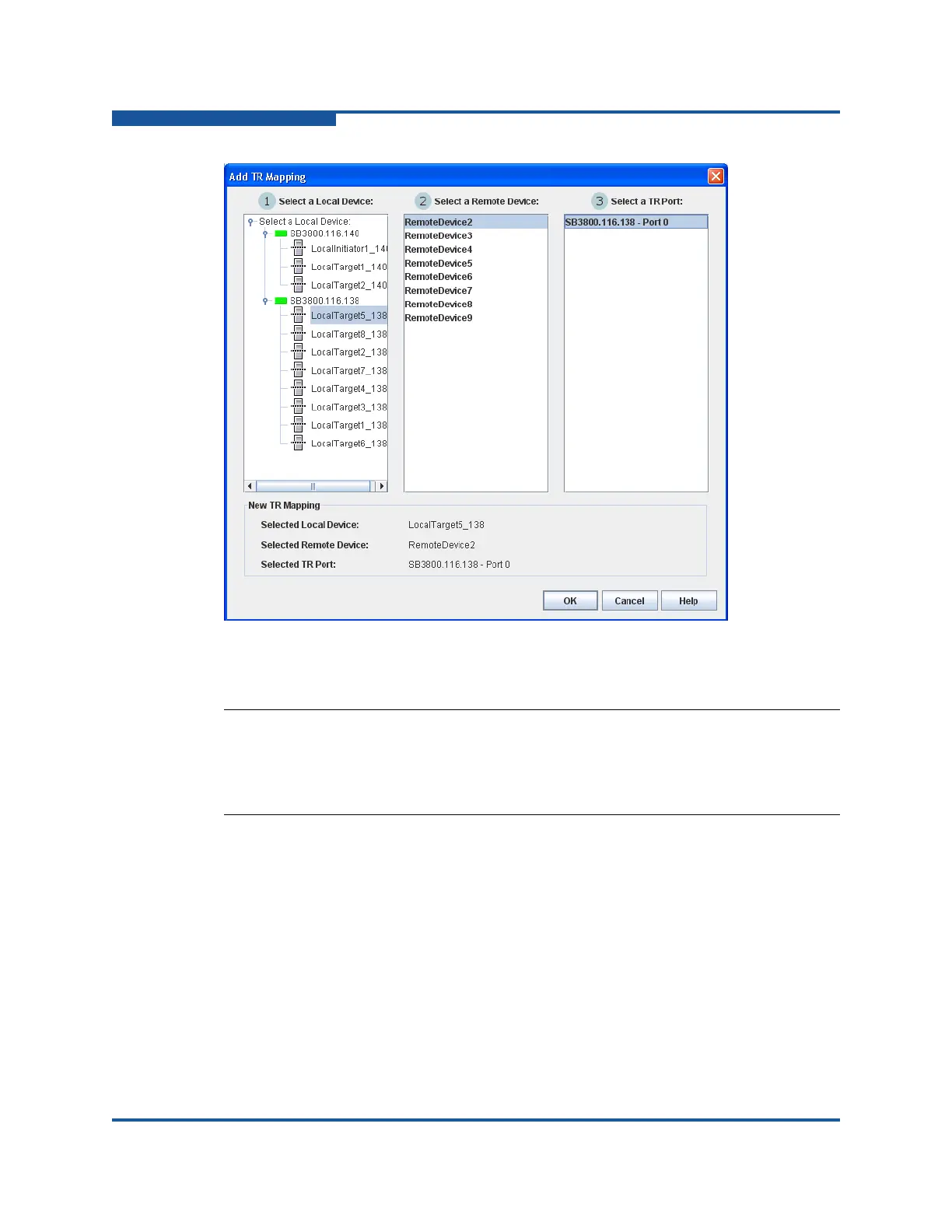

Figure 2-5. Add TR Mapping Dialog Box
Mapping a New Inter-Fabric Zone
To map a new inter-fabric zone:
1. On the faceplate display on the Fabric menu, click TR Mapping Manager.
2. On the TR Mapping Manager dialog box (Figure 2-4), click Add, or on the
Edit menu, click Add.
3. On the Add TR Mapping dialog box (Figure 2-5), select a local device from
the 1 Select a Local Device column.
4. Select a remote device option from the 2 Select a Remote Device column.
5. Select a TR port option from the 3 Select a TR Port column.
NOTE:
The local fabric port to be used in the inter-fabric zone must be configured
as a TR_Port before the devices are mapped. See “Port Types” on
page 6-14 for information on changing port types.
