Qlogic 5800V Series User Manual

2–Managing Fabrics
Transparent Routes Data Window
59266-01 B 2-19
Transparent Routes Data Window
The Transparent Routes data window displays the currently configured inter-fabric
zones/routes using a TR_Port.

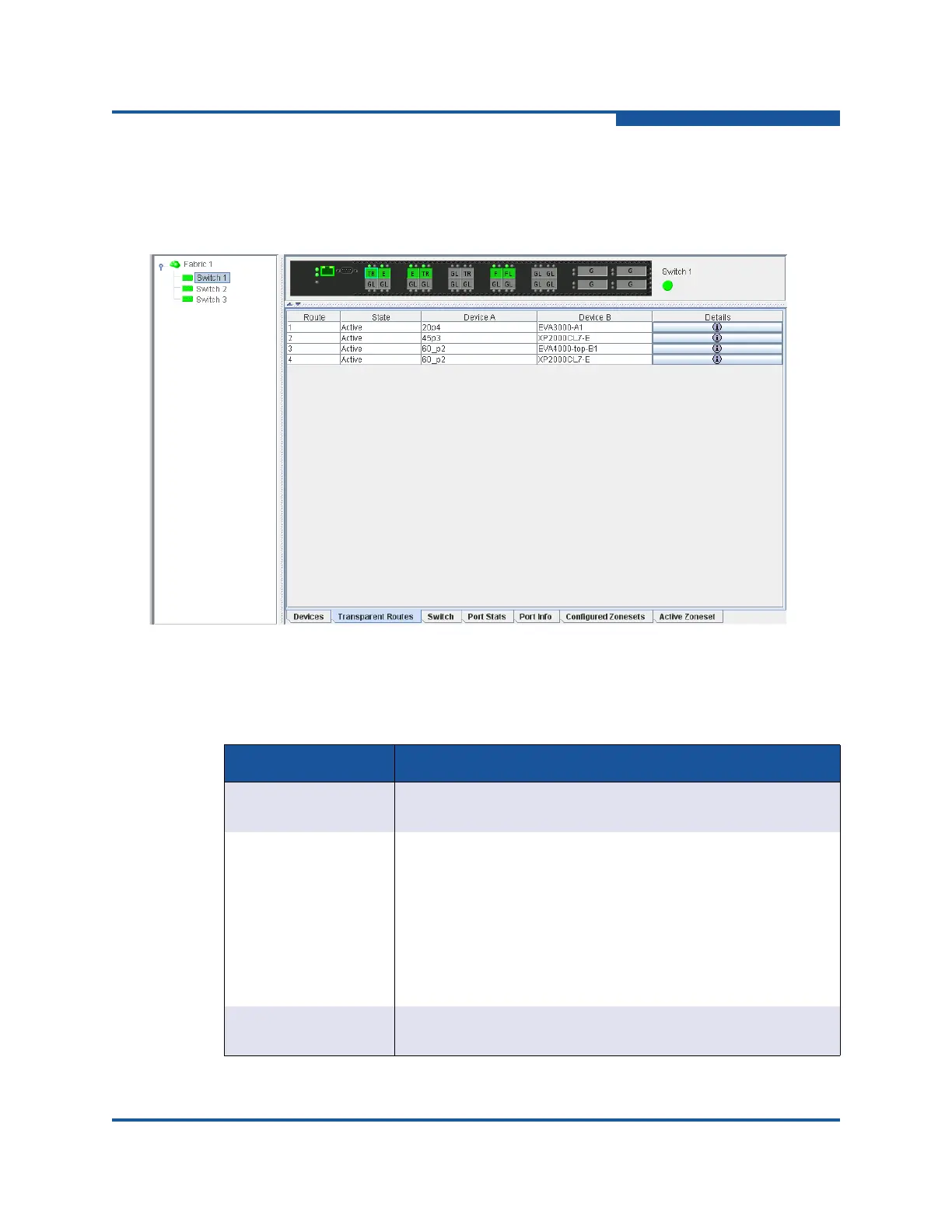

Figure 2-7. Transparent Routes Data Window
Table 2-2 describes the entries in the Transparent Routes data window.
Table 2-2. Transparent Routes Data Window Entries
Entry Description
Route Route number reference for each listing in the Transparent
Routes data window table
State The current TR mapping state (Active or Inactive)
 Active—Indicates that the mapping's TR port is on this
switch, and both devices have logged in.
 Inactive—Indicates that the mapping's TR port is on this
switch, and the mapping is not active. The reasons are
shown in the details display as the three Status column
entries (one for the overall mapping and one for each
device in the mapping).
Device A The WWN of one of the two devices linked by the TR mapping.
Assigned nicknames are also displayed.
