Qlogic 5800V Series User Manual

6–Managing Ports
Graphing Port Performance
59266-01 B 6-27

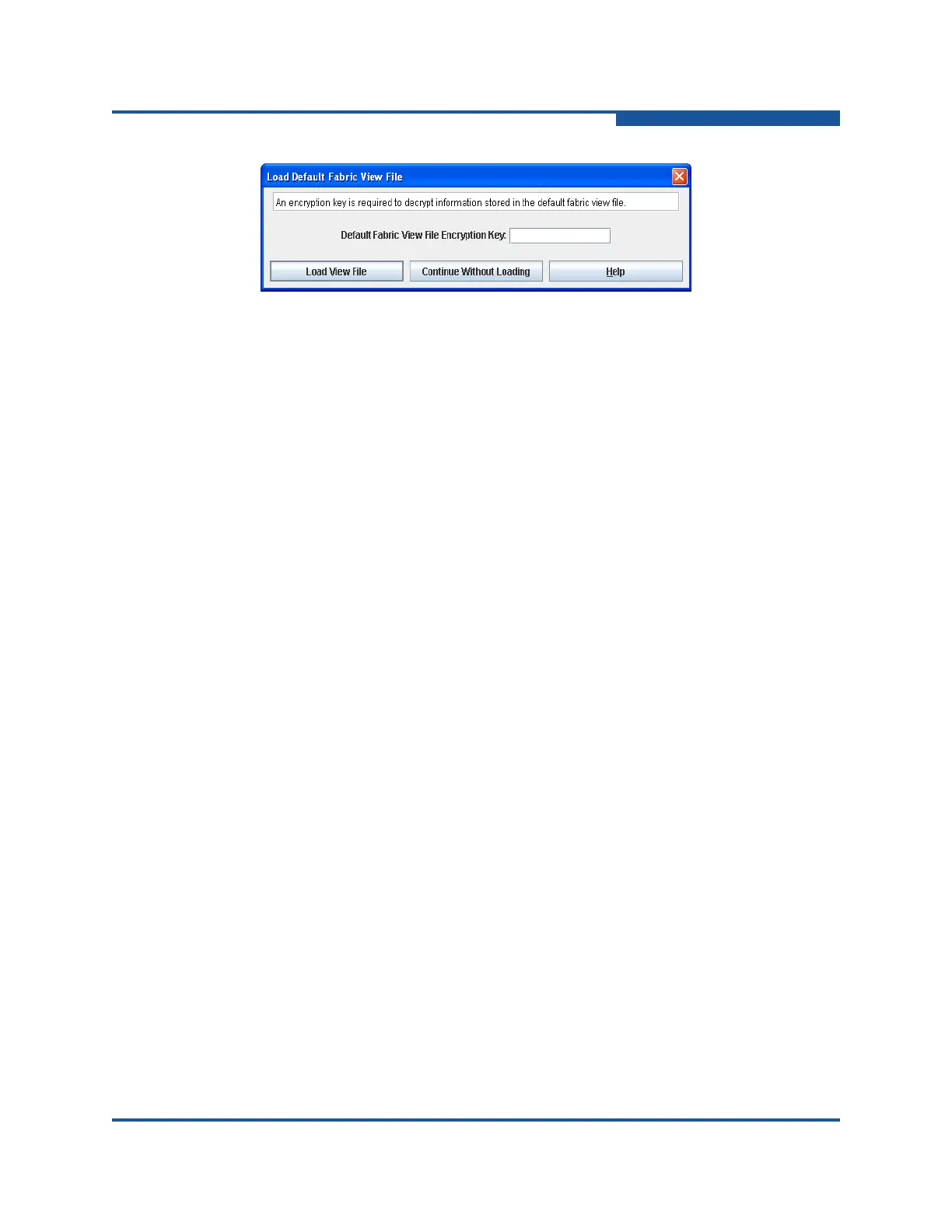

Figure 6-11. Load Default Fabric View File Dialog Box—Performance View
Saving and Opening Fabric View Files
In addition to the default Fabric View file, you can save and open your own Fabric
View files. A Fabric View file contains the set of fabrics, graphs, and graphing
options. To save a Fabric View file:
1. Select a graph in the display.
1. On the File menu, click Save View As to view the Save View dialog box.
2. Enter a name for the Fabric View file, or click Browse to select an existing
file. Files are saved in the working directory.
3. Enter a password. When you attempt to open this Fabric View file, you are
prompted for this password. If you leave the File Password field blank, no
password is required.
4. Click OK.
To open a Fabric View file:
1. On the File menu, click Open View File to view the Open View dialog box.
2. Enter a name for the Fabric View file, or click Browse to select an existing
file.
3. Click OK.
Changing the Default Fabric View File Encryption Key for
Performance View
To change the encryption key for the default Fabric View file:
1. On the File menu, click Save Default Fabric View File to view the Save
Default Fabric View File dialog box.
2. Enter the new encryption key in the Default Fabric View File Encryption Key
field.
3. Re-enter the same encryption key in the Re-enter Encryption Key to Confirm
field.
4. Click OK to save the changes.
