Qlogic 5800V Series User Manual

3–Managing Fabric Security
Device Security
59266-01 B 3-19

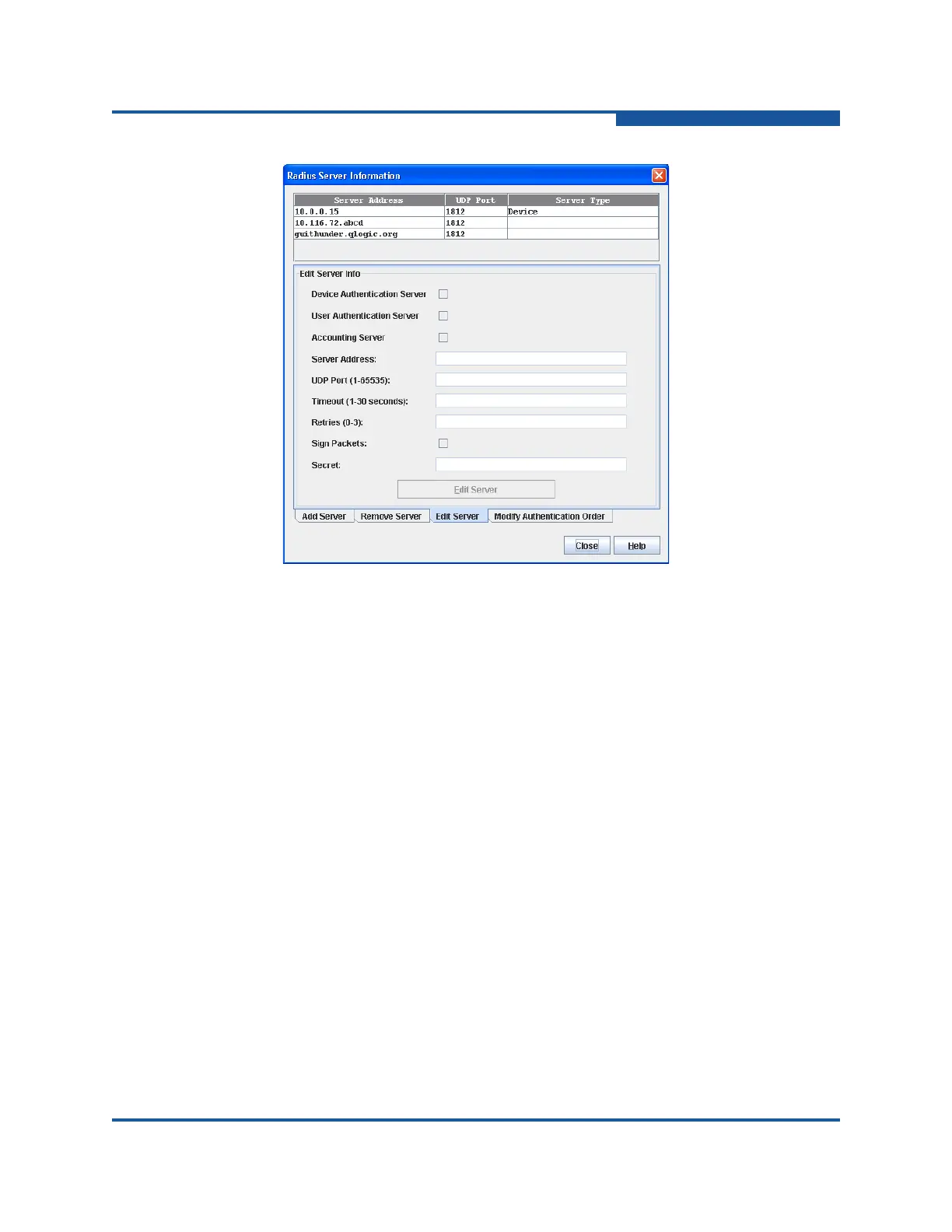

Figure 3-11. Radius Server Information Dialog Box—Edit Server
To edit information of a RADIUS server:
1. Select a switch in the fabric tree.
2. On the Switch menu, click Radius Servers to view the Radius Server
Information dialog box (Figure 3-11).
3. Click the Edit Server tab, and select the server to be edited In the server list
at the top of the dialog box.
4. Make changes to the Server Address, UDP Port, Timeout, Retries, or Secret
boxes.
5. Select the server type (Device, User, Account) and Sign Packets options.
6. Click Edit Server to save the changes.
7. Click Close to exit the dialog box.
Modifying Authentication Order RADIUS Server Information
Editing information of a RADIUS server involves changing the configuration of a
RADIUS server.
