6–Managing Ports
Viewing Port Information
6-8 59266-01 B
Port Statistics Data Window
The Port Statistics data window (Figure 6-3) displays statistics for port
performance. To view the Port Statistics data window:
1. Select a switch or a stack in the fabric tree.
2. Select one or more ports in the faceplate display, and click the Port Stats
data window tab.

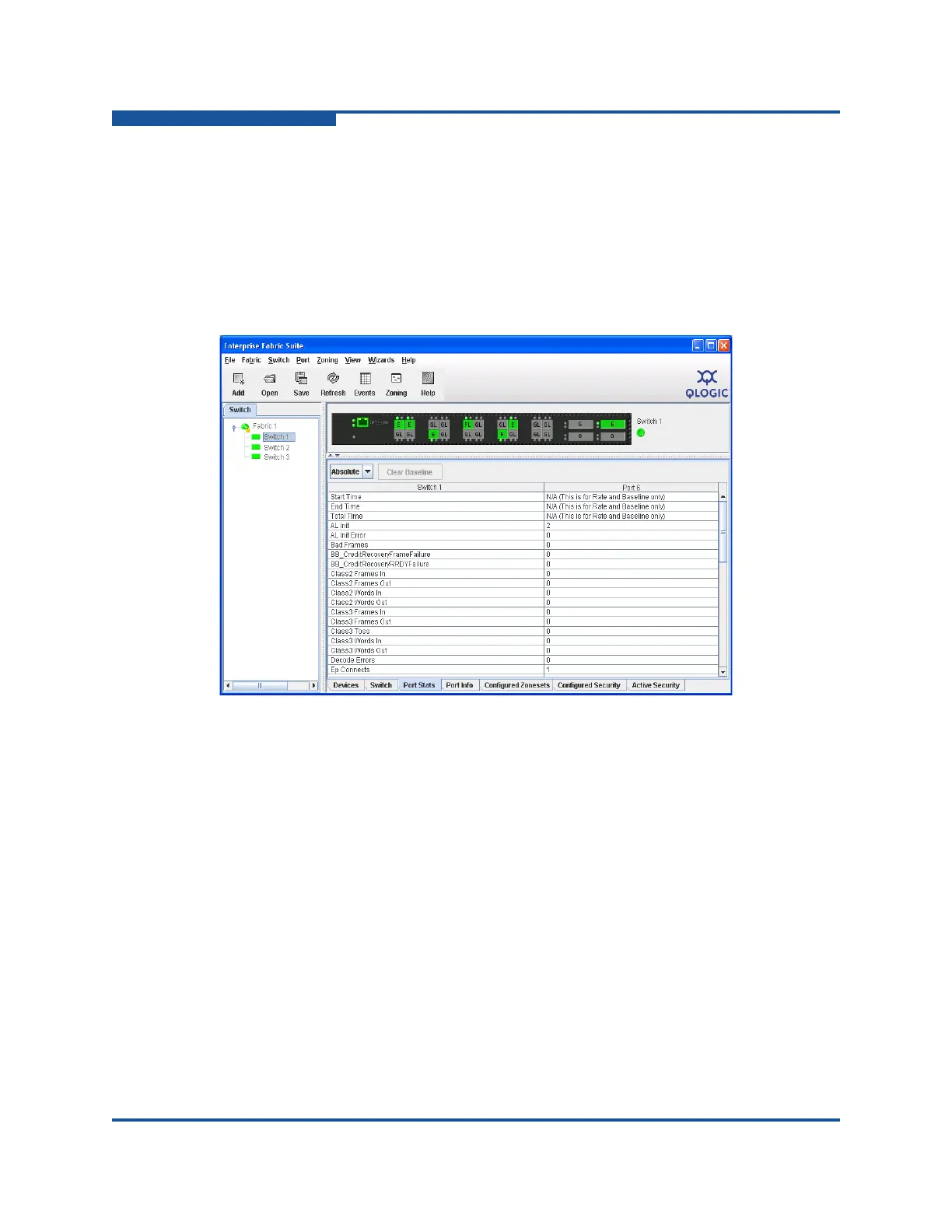

Figure 6-3. Port Statistics Data Window
The Statistics drop-down list is available on the Port Statistics data window, and
provides different ways to view detailed port information. Click the down arrow to
view the drop-down list, and select one of the following:
Select Absolute to view the total count of statistics since the last switch or
port reset.
Select Rate to view the number of statistics counted per second over the
polling period.
Select Baseline to view the total count of statistics since the last time the
baseline was set. When viewing baseline statistics, click Clear Baseline to
set the current baseline. The baseline is also set when the switch status
changes from unreachable to reachable.
The Port Statistics data window fields are described in Table 6-7.
