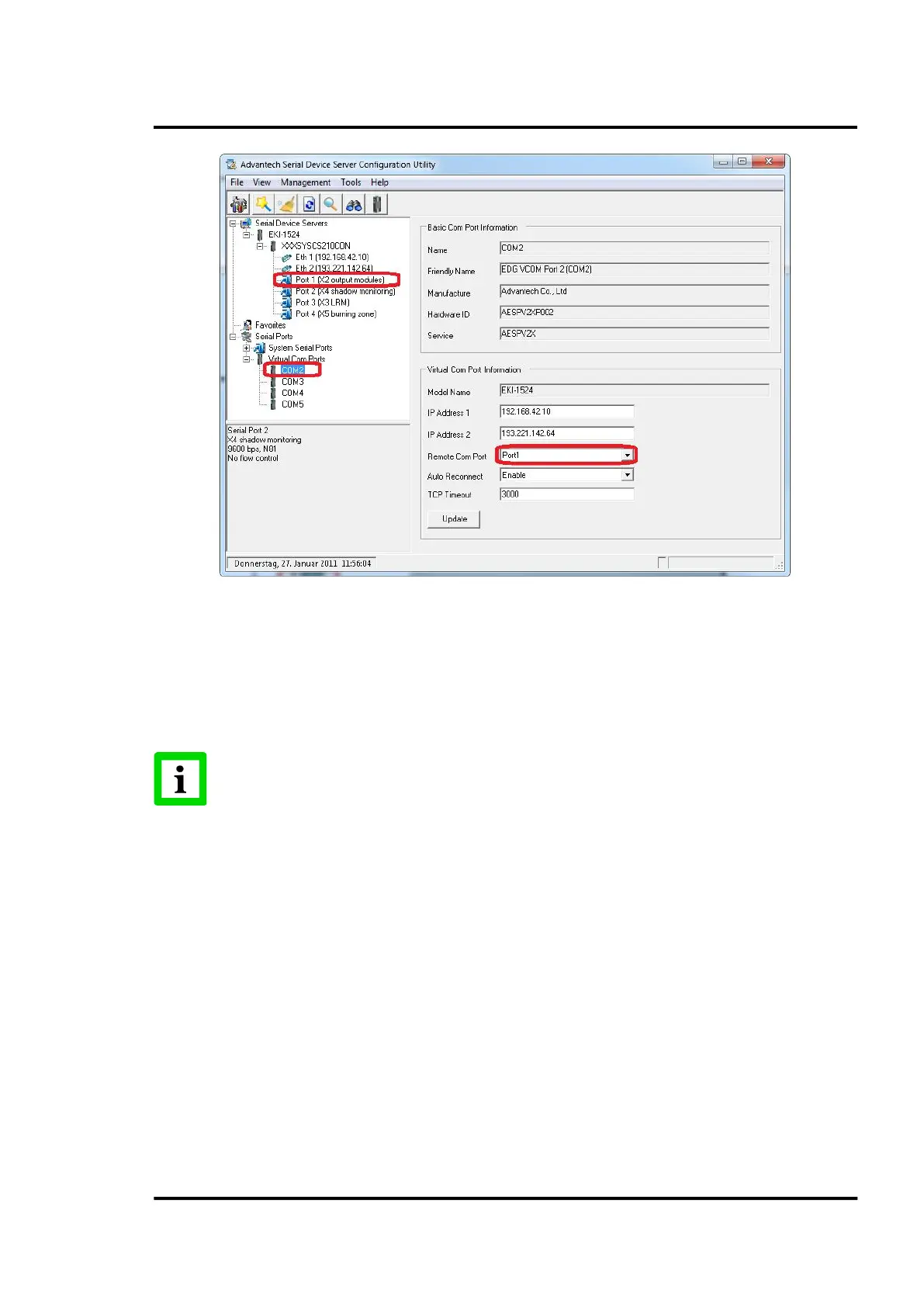

Figure 83: COM Ports in the “Virtual Com Ports” Listing now available for the CS Software
8. The configuration for the four ports of the serial device <XXXSYSCS210CON> are preset in
accordance to the available CS accessories, e.g. port 1 is configured as RS-485 type for
communicating with the output modules to be wired at connector X2 in the system connection
box. In the example above port 1 is assigned to the virtual COM port 10 to be used in the CS
software configuration.
It is not recommended to change the pre-set
configuration for the four ports of the
serial device <XXXSYSCS210CON>!
