9.2.8 ATTENUATOR BOARD

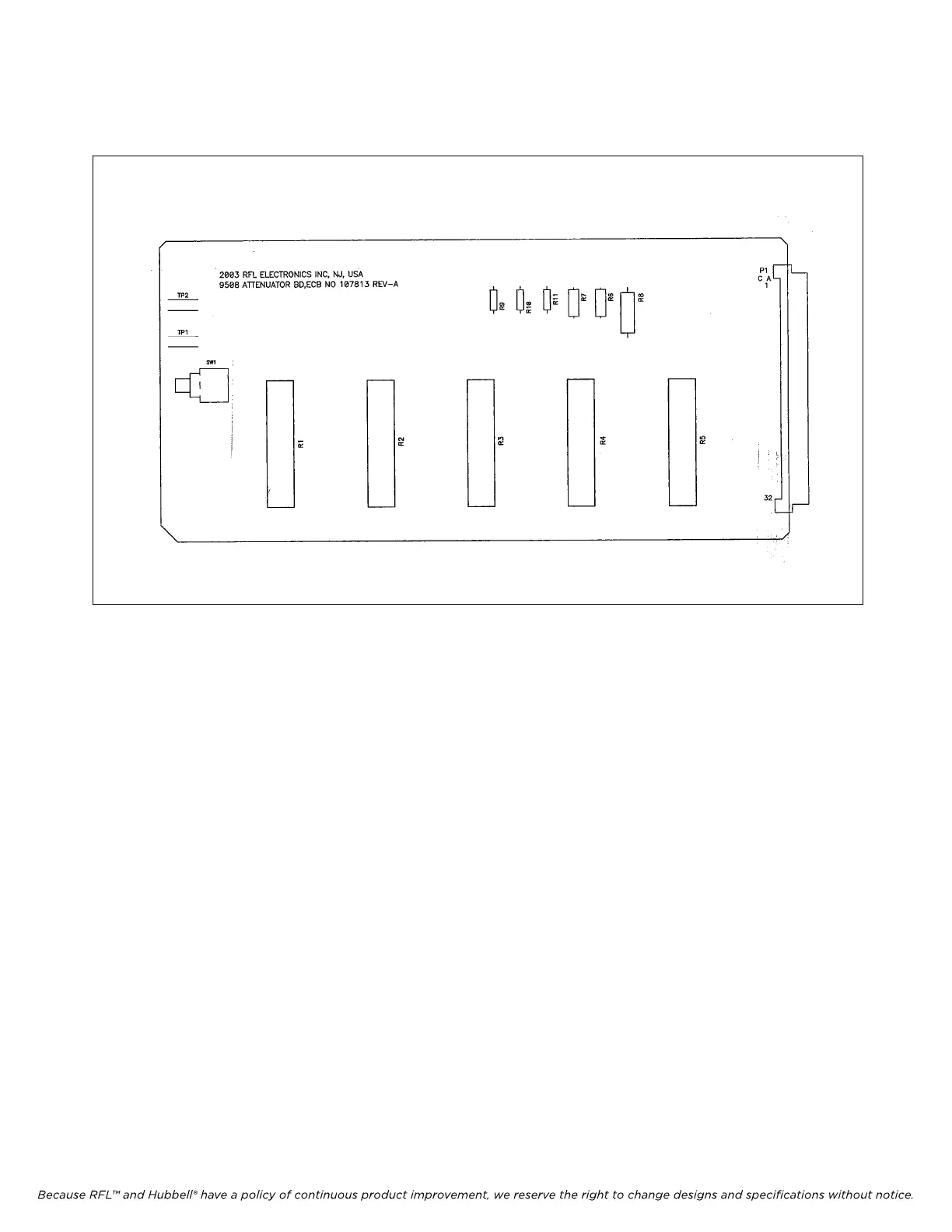

Figure 9-13. RFL 9508 Attenuator Board

9.2.8.1 DESCRIPTION

The RFL 9508 Attenuator Board consists of five 10 watt power resistors, several other smaller resistors, a two-

position toggle switch, and two test points.

The function of the attenuator board is to provide 40dB of attenuation during loopback testing. Toggle switch

SW1 is used to select either Norm

al or Loopback operation. Test points TP1 and TP2 allow the user to monitor

the output of the attenuator.

RFL 9785 RFL Electronics Inc.

May 16, 2011 9-16 (973) 334-3100
