18.3.3 CONTROLS AND INDICATORS FOR 106455-5 EXTERNAL AMP P.S.
I/Os

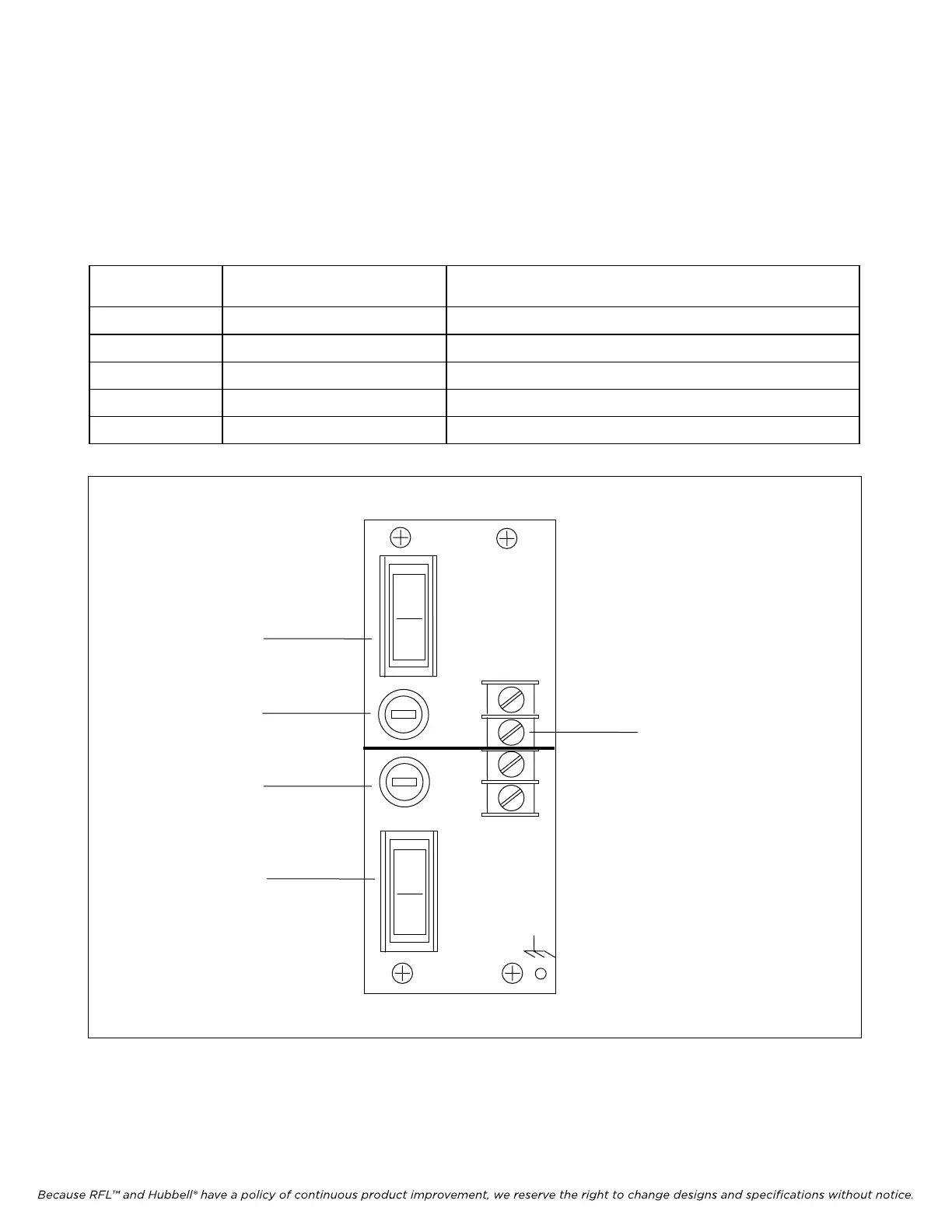

Figure 18-10 shows the location of all controls on the RFL 9780/85 External Amp Power Supply I/O
module. The controls are described in Table 18-6.
Table 18-6. Controls and indicators, RFL 9780/85 External Amp Power Supply I/O module
Component
Designator
Name/
Description
Function
F1
Fuse Fuse for internal power supply No. 1 and No. 2
F2
Fuse Fuse for external amp
SW1 Switch ON/OFF switch for power supply No. 1 and No. 2
SW2 Switch ON/OFF switch for external amp
TB1 Terminal Board Input power and external amp connections
1
0
P.S.
ON
P.S.I/O
EXT AMP
OFF A
F1 SB+
4A SB-
RF+
F2 RF-
B
ON
OFF
P.S. RF
1
0
SW1
F1
F2
SW2
TB1
Figure 18-10. Controls and indicators, RFL 9780/85 External Amp Power Supply I/O
