RFL 9785 - Figure 19-14. Controls and Indicators, RFL Line I;O Module; Table 19-6. Controls and Indicators for RF Line I;O Module

To Next Page

To Previous Page

Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

RFL 9785 RFL Electronics Inc.

September 1, 2006 19-28 (973) 334-3100

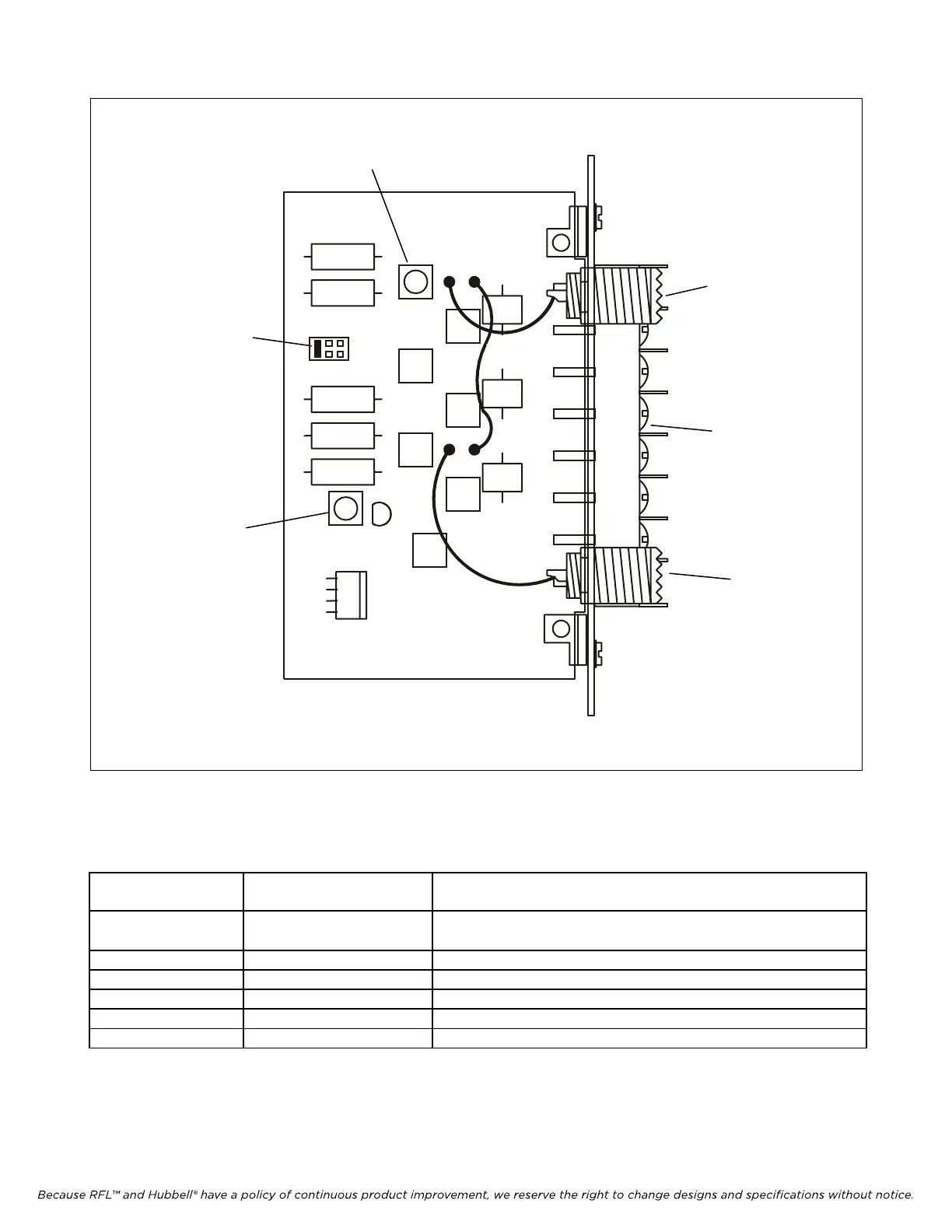

Figure 19-14. Controls and indicators, RFL Line I/O module

Table 19-6. Controls and Indicators for RF Line I/O module

Component

Designator

Name/

Description

Function

J3 Jumper

Selects line termination impedance of 50Ω, 75Ω or OUT (greater

han 30KΩ)

J5 UHF Connector Used for TX signals

J7 UHF Connector Used for RX signals

J10 Miniature Connector

J16 Miniature Connector

TB1 Terminal board Provides connections to line coupling equipment

J15

J11

J13J14

J12

J10

J16

TB1

CR1

OUT

106588 REV-

TX/RX RF LINE I/O

N/A

90V

10 1W

1W 15

PO800

90V

J10

TB-1

J16
