Section 17. CHECKBACK COMMUNICATIONS MODULE
P1
32
1
CA
R4
J1
R3
R2
C10
C11
C8 C7 C4 C5 C6
C3
U2
Q1
CR2
CR1
R1
U1
C9
C12
C2
C1
9785 CHECKBACK COMMUNICATION MODULE ECB NO. 106648 REV BRFL ELECTRONICS INC., BOONTON, NJ, U.S.A.
+
(98457)
11
(98202_6)
1K
3.16K
.002UF .002UF
.1uF .1uF .1uF .1uF .1uF .1uF
74ACT02
2222
2N
914B
30CA P6KE
3.16K
MAX202E
.001UF
.002UF
.1uF
47UF

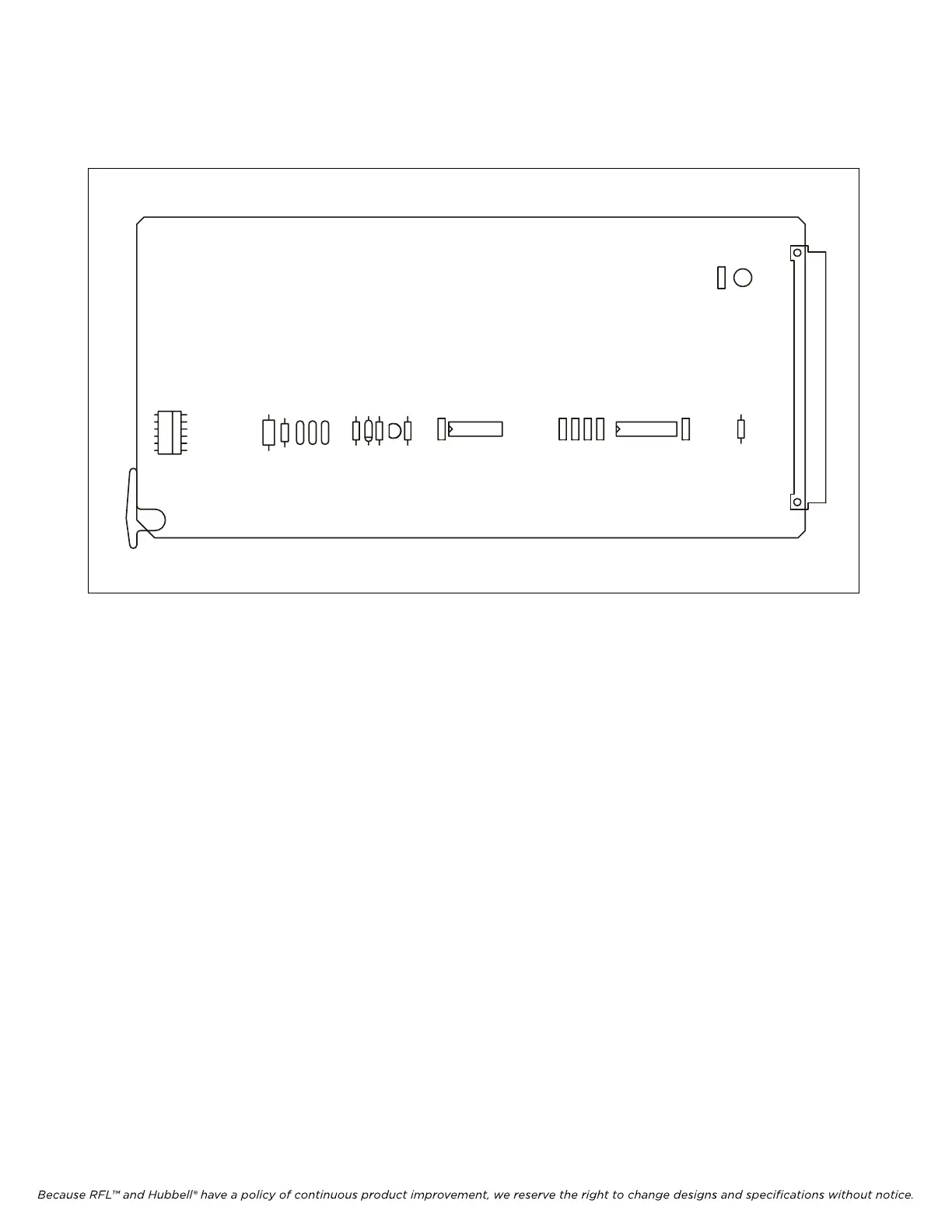

Figure 17-1. RFL 9785 Checkback Communications Module
17.1 INTRODUCTION
The Checkback Communications Module is only used in chassis that have a Checkback Module and
no SOE Module. In this case, the Checkback Communications Module is installed in the same slot that
the SOE module would have occupied. This module allows a PC to communicate directly with the
Checkback module, without having to go through the SOE module.
