Section 8. POWER AMPLIFIER MODULE

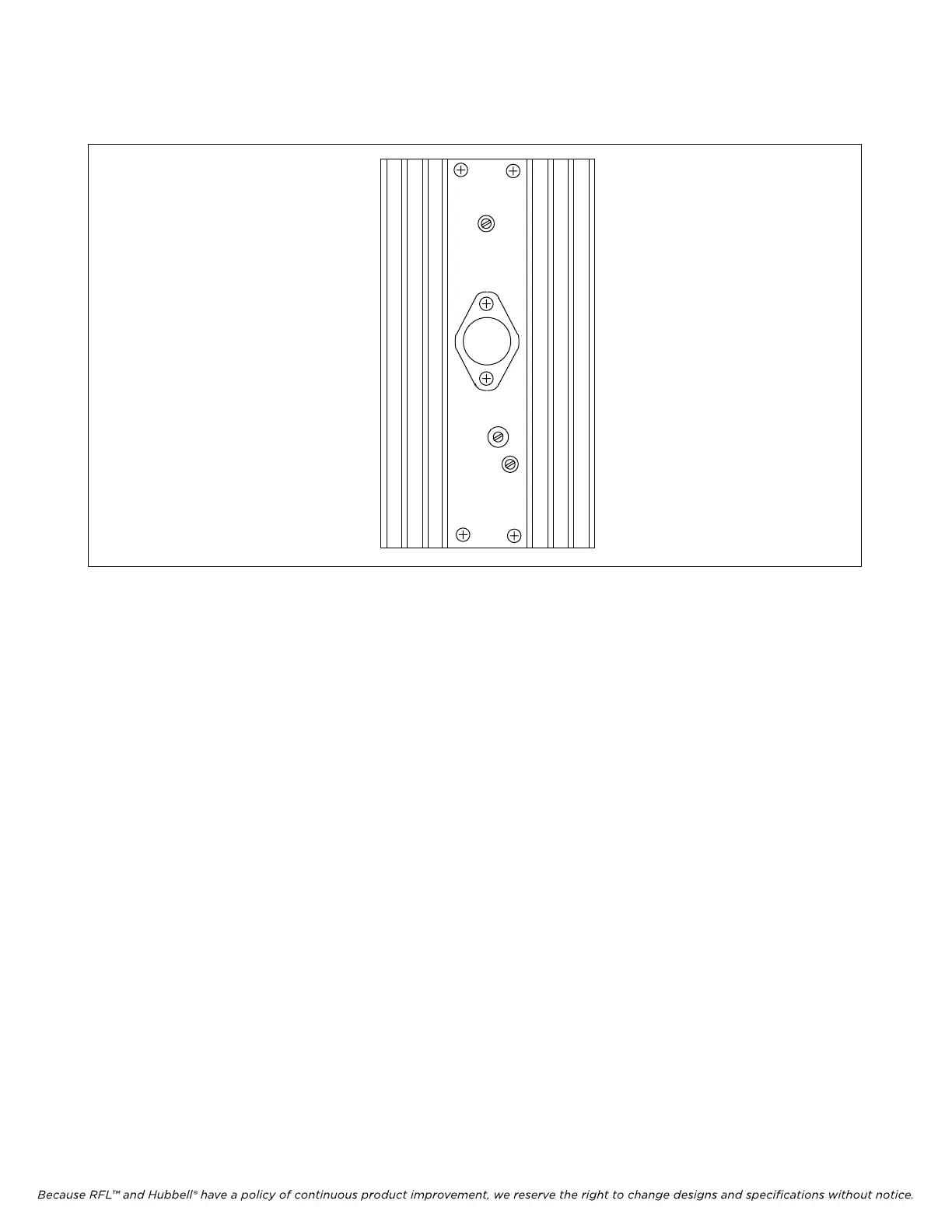

Figure 8-1. RFL 9785 Power Amplifier Module

8.1 DESCRIPTION

The RFL Power Amplifier module provides both voltage and current gain to the signal coming from

the Transmitter module (Section 7). A monitor circuit detects loss of transmit signal and issues a

Transmitter Fail Alarm. The output of the amplifier is transformer isolated and presents a 50 ohm

nominal impedance. The output impedance is adjustable to compensate for small changes in load

impedance.

For specific component information at the board level please contact the factory with the board

part number and revision level. Power Amplifier Schematics are provided at the end of this section.
