19.2 SOLID STATE INPUT I/O MODULE
SS INPUT
1
2
3
4
5
6
7
+
-
+
-
C
NO BLOCK RLY
2
NC
RESERVE
RMT INIT

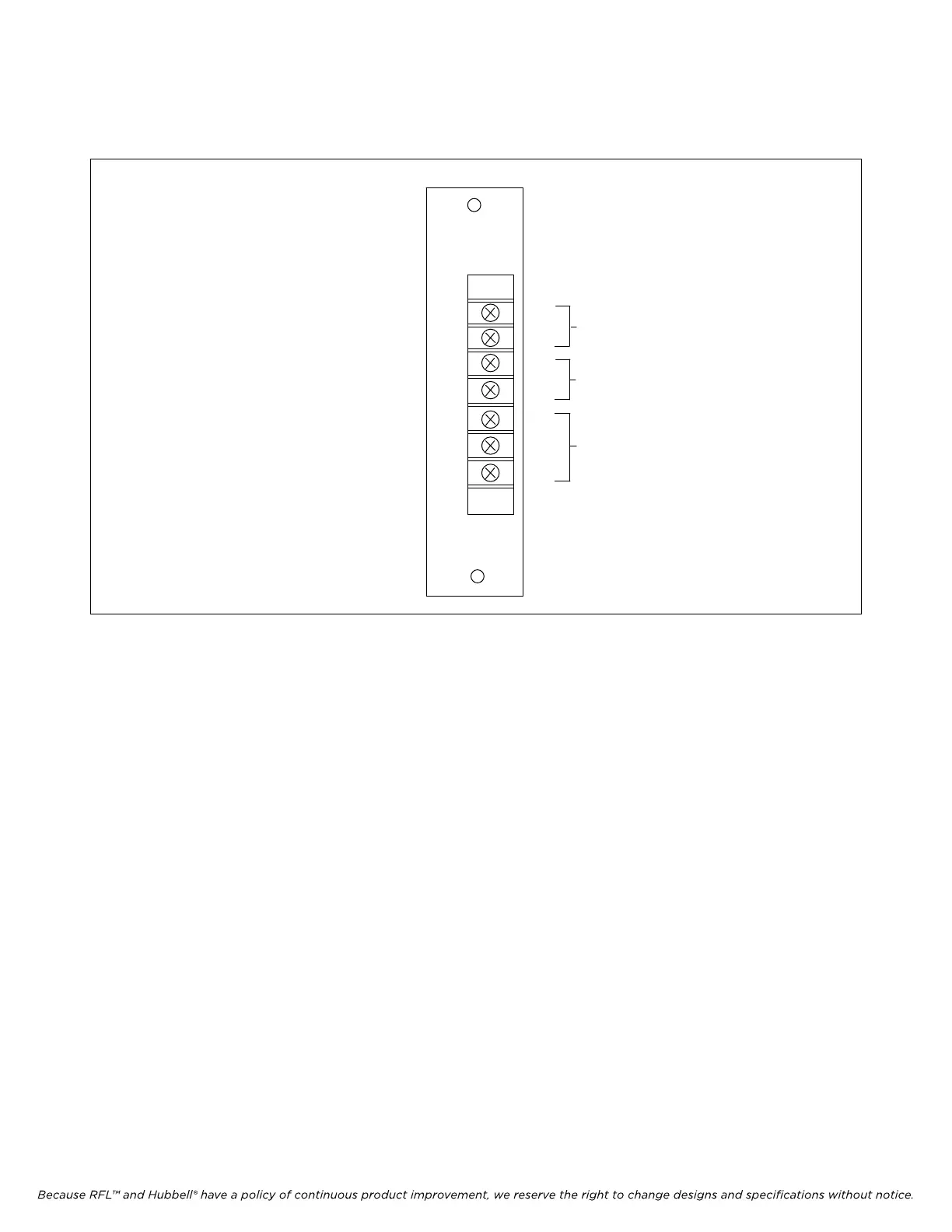

Figure 19-2. Solid State Input I/O module, rear panel view
19.2.1 DESCRIPTION
The Solid-State Input I/O module provides two solid state inputs and one electro-mechanical output.
This I/O module is available in three versions as follows:
Input Voltage Assembly No.
48V or 125V (106435-3)
250V (106435-4)
5V (106435-5)
The inputs are used for keying reserve or remote initiate, and the output is used as a block output. The
electro-mechanical output has N.O. and N.C. connections at the terminal block. All signals to and from
the Solid-State Input I/O module interface directly with the 9785 Logic Module.
The 48/125V version requires that jumpers J4 and J5 be configured for the input voltage requirement.
They are placed in the 48V or 125V position as applicable. The 250V version does not have these
jumpers installed.
The Solid-State Input I/O module is primarily used for TX only applications. It can also be used for
customer specific applications and can be mounted in a spare I/O slot, if available, or in an expansion
chassis.
