RFL 9785 - Figure 22-13. Controls and Indicators, RFL 9785 Receiver Detector Module (106515-X)

To Next Page

To Previous Page

Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

TP12

TP1 (-)

Bla

TP5 (+)

Yellow

R26

(Level)

Front

Panel

Meter

R34

(Null)

R90

(Level)

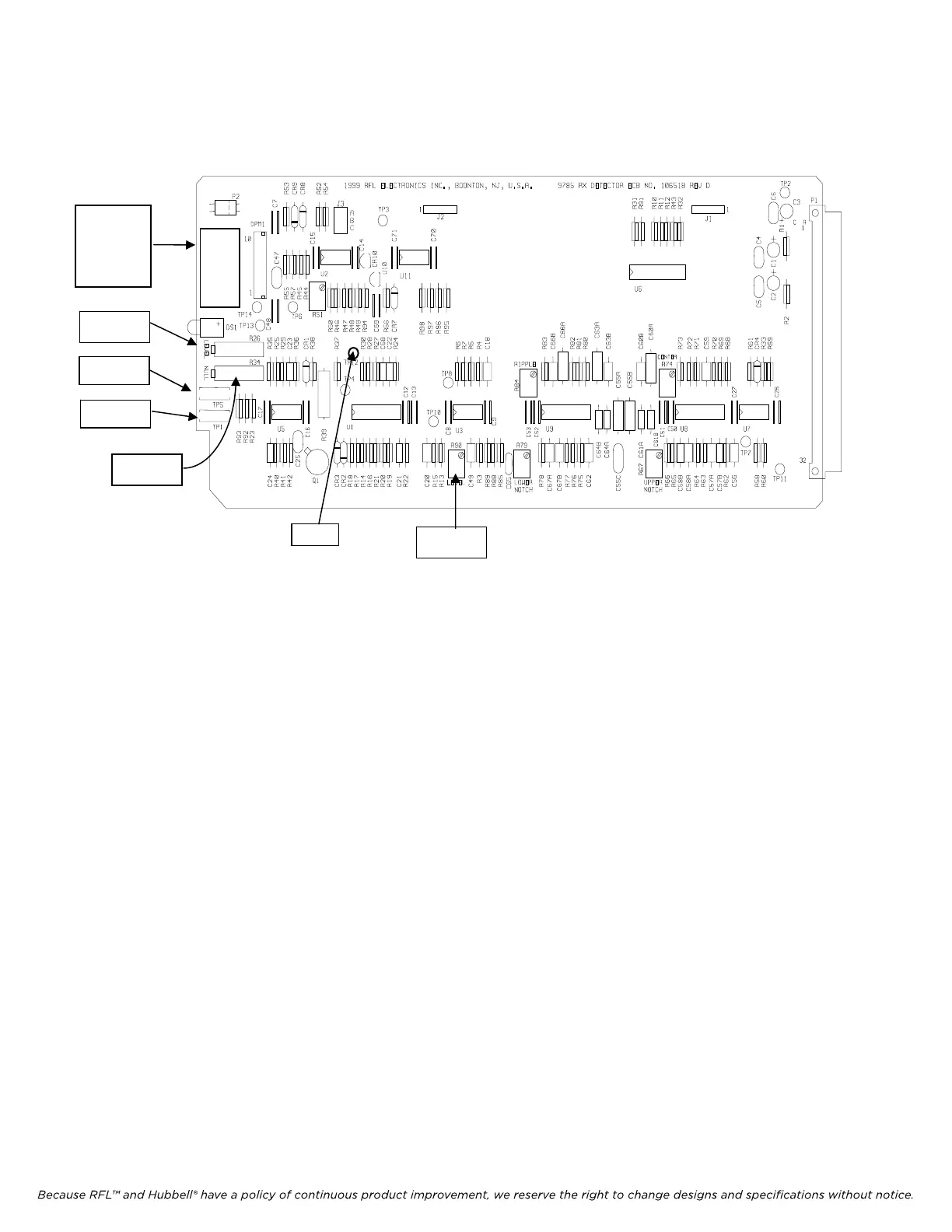

Figure 22-13. Controls and Indicators, RFL 9785 Receiver Detector Module (106515-X)

This completes the Receiver Functional Test. Visually observe all Front Panel

LEDs and test all inputs and outputs to verify full system operation.
