19.6 CURRENT LIMIT I/O MODULE
CURRENT
LIMIT
1
2
3
4
5
6
7
+SB
RLY+
RLY-
1 AMP
200mA
180mA
20mA

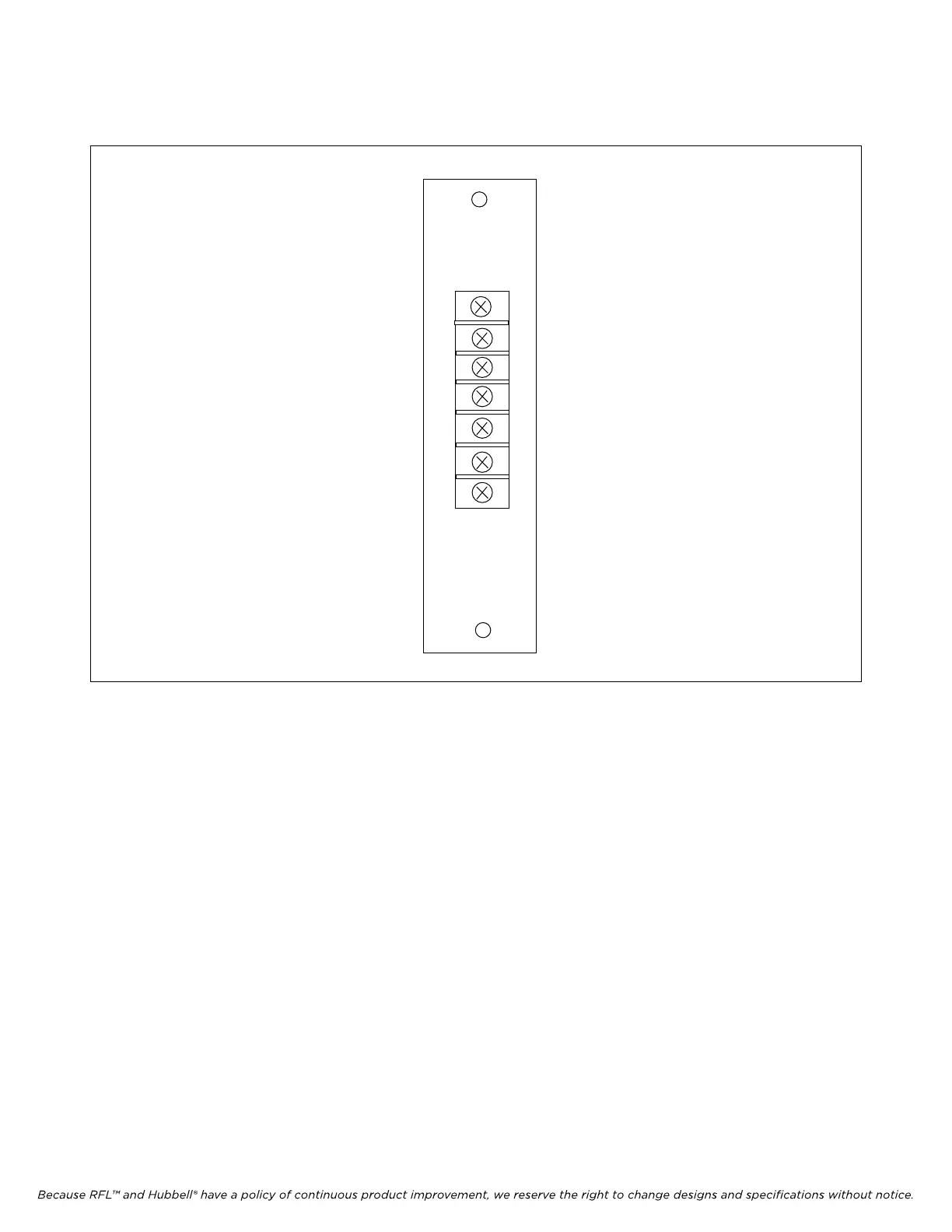

Figure 19-16. Current Limit I/O module, rear panel view
19.6.1 DESCRIPTION
The Current Limit I/O module (Figure 19-16) does not plug into the rear of the RFL 9785 chassis, like
the other I/O modules in this section. Instead, it is hard mounted to the left inside wall of the chassis as
viewed from the rear.
User configuration is not required for the Current Limit I/O module.
