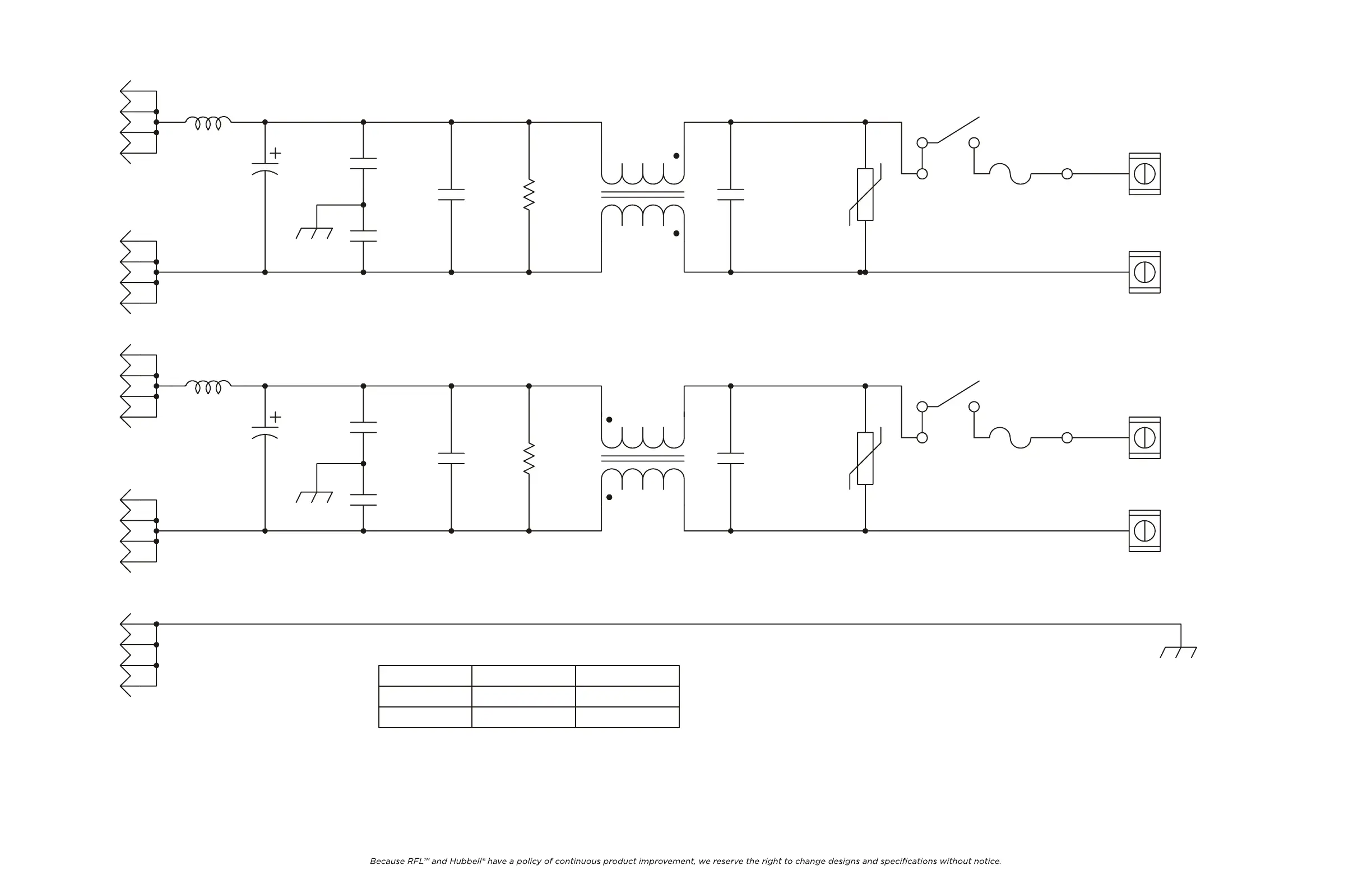

RFL 9785 - Figure 18-9. Schematic, RFL 9785 Power Supply I;O Dual (Dwg. No. B-106459-1-B)

To Next Page

To Previous Page

Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

9785 RFL Electronics Inc.

18-19 (18-20 Bl

ank) (973) 334-3100

A15

C28

A28

C24

A24

C23

A23

A27

C27

A31

C31

A32

C32

C15

A16

C16

A19

C19

A20

C20

TB1

C2 C1

C6C7

VR1

VR2

C10

CHASSIS

3KV

.01uF

3KV

.01uF

3KV

.01uF

3KV

.01uF

1/2W

330K

1/2W

330K

275VAC

.22uF

275VAC

.22uF

275VAC

.22uF

275VAC

.22uF

SEE_TABLE

105426

47uF

120uH

105426

106455-4

106455-3

INP. VOLT. VR1,VR2

V275LC40B

V130LC20B48/125 VDC

250 VDC

ASSY NO.

W3W4 TO SW2

SW2

PS2 PWR. INP.

PS2 PWR INP.

PS1 PWR. INP.

PS1 PWR INP.

SW1

TO SW1 W1W2

Figure 18-9. Schematic, RFL 9785 Power Supply I/O Dual (Dw

. No. B-106459-1-B)

RFL

June 18, 2009
