Installation
ONE-TRAY PAPER TRAY UNIT INSTALLATION
SM 1-17 B039/B040/B043

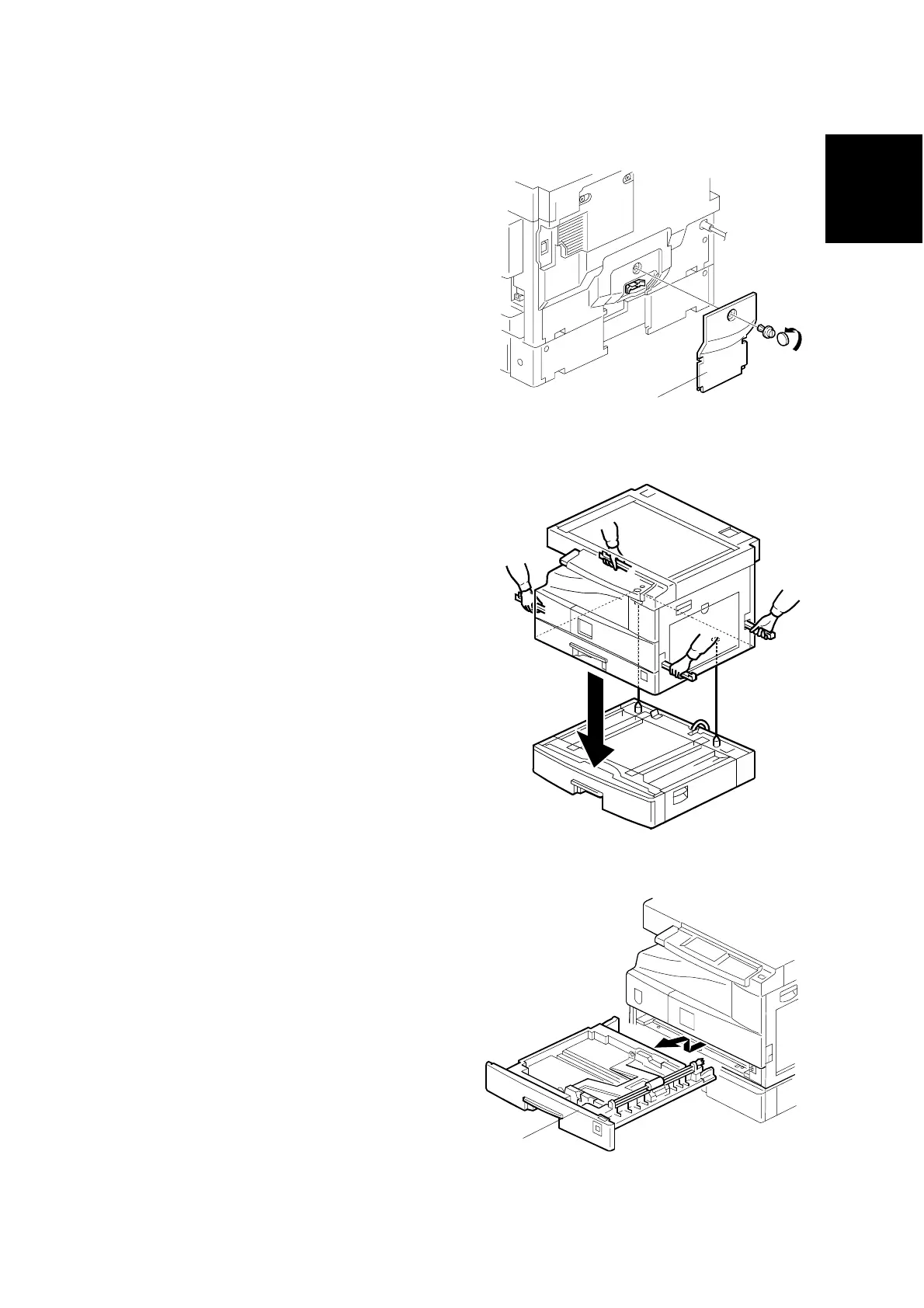

2. Remove the cover [A] (1 rivet).
3. Set the copier on the paper tray unit.
NOTE: When installing the copier, be
careful not to pinch the
connecting harness.
4. One-tray copier model (B039):
Remove the 1st tray cassette [B].
Two-tray copier models
(B040/B043):
Remove the 2nd tray cassette [B].
B385I109.WMF
B385I112.WMF
B385I120.WMF
[A]
[B]
To Next Page
