Ricoh D117 User Manual

Paper Feed Unit (D573)
SM 18 D573
1.2.11 TRAY LIFT MOTOR
1. Pull out the paper tray ( p.5)
2. Rear cover (
p.2)

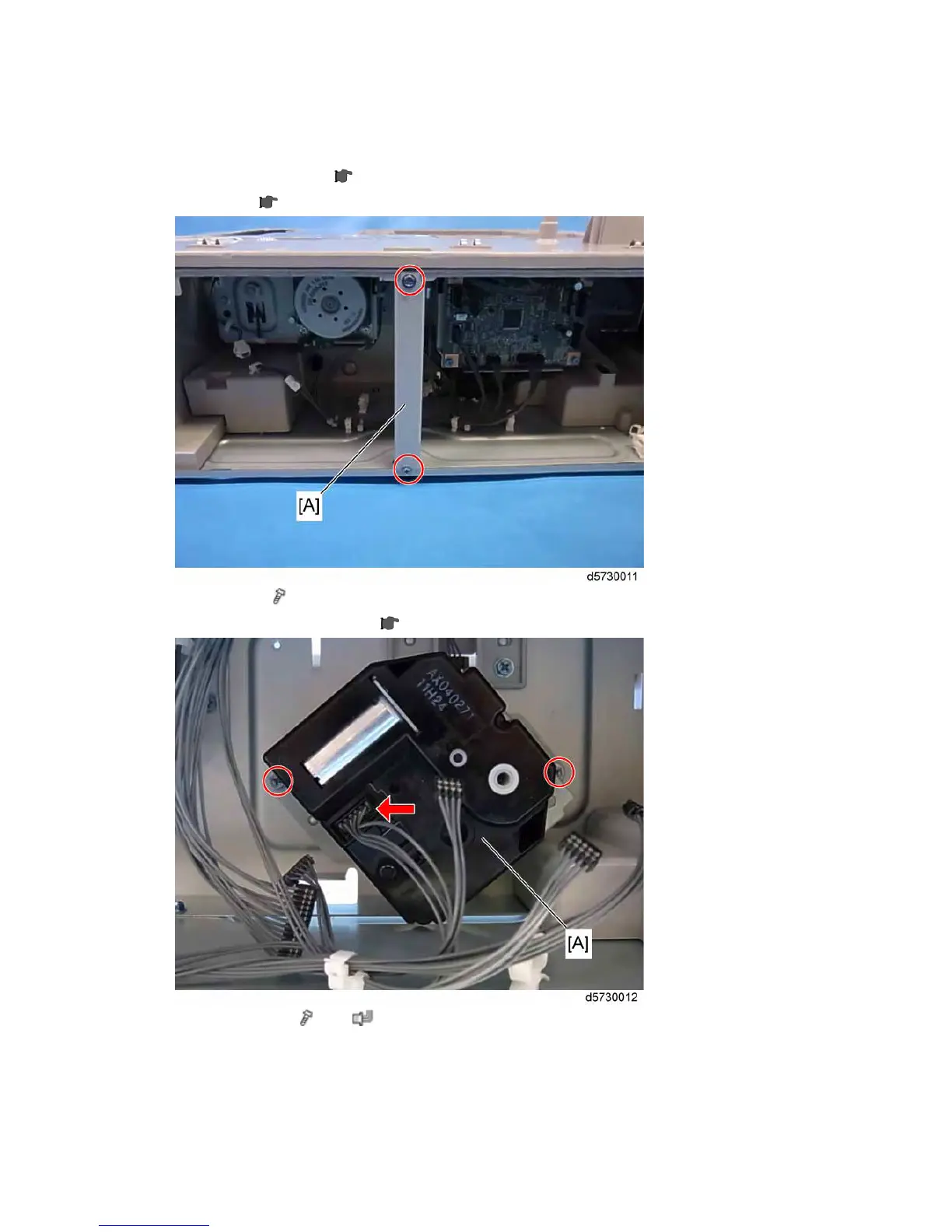

3. Rear stay [A] (
x 2)
4. Controller board with bracket (
Controller Board)
5. Tray lift motor [A] (
x 2, x 1)
