Paper Feed
SM 4-93 D117/D118
Replacement
and
Adjustment

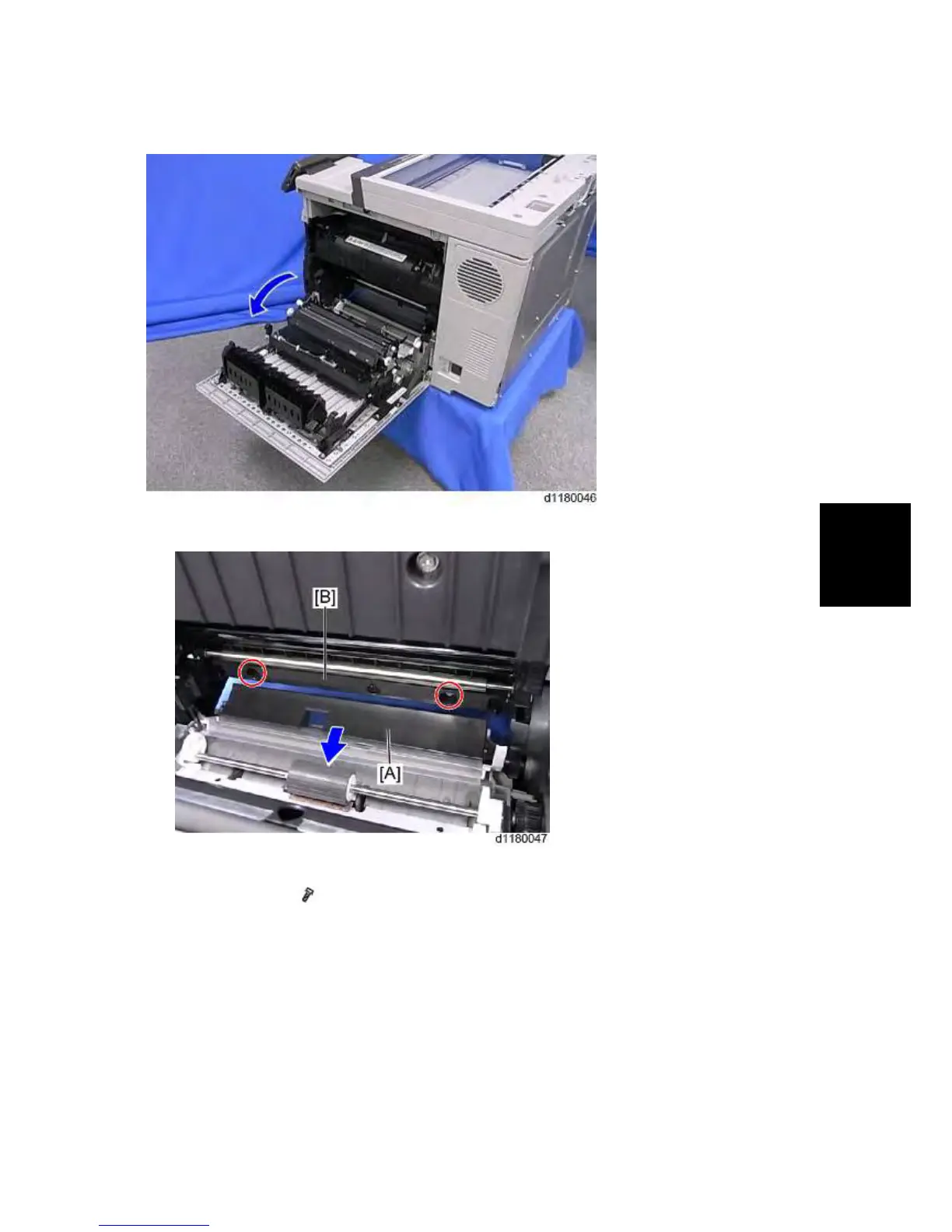

4.12.3 REGISTRATION / PAPER FEED SENSOR
1. Open the duplex unit.
2. Pull down the guide plate [A].
3. Sensor cover [B] (
x 2)
