Ricoh D117 - IC Card Reader Installation; Installation Procedure; When Installing in a Machine that Does Not Have the 1-Bin Tray Unit

IC Card Reader (External Option)
D117/D118 2-80 SM
2.13.2 INSTALLATION PROCEDURE
 Unplug the copier power cord before starting the following procedure.
When installing in a machine that does not have the 1-bin tray unit
1. Remove the scanner unit ( p.4-30).
2. Remove the rear cover (
p.4-22).

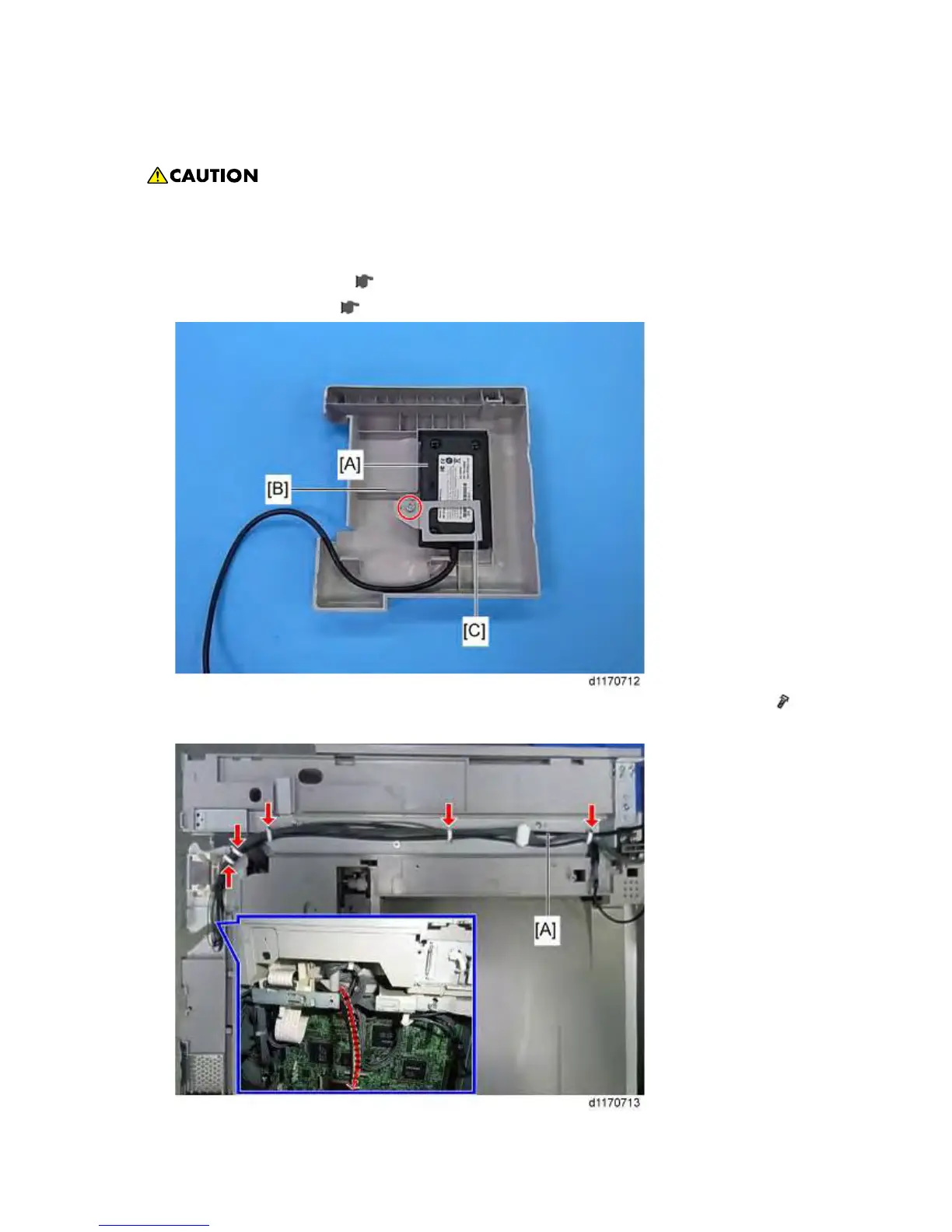

3. Attach the IC card reader [A] to the rear of the upper right cover [B] with the bracket [C] (
x
1 included in this kit).
