Optional Counter Interface Unit Type A (B870)
SM 2-51 D117/D118
Installation
Installation Procedure
ï‚§ Unplug the copier power cord before starting the following procedure.
1. Remove the rear right cover (
p.4-22).
2. Remove the rear cover (
p.4-22).

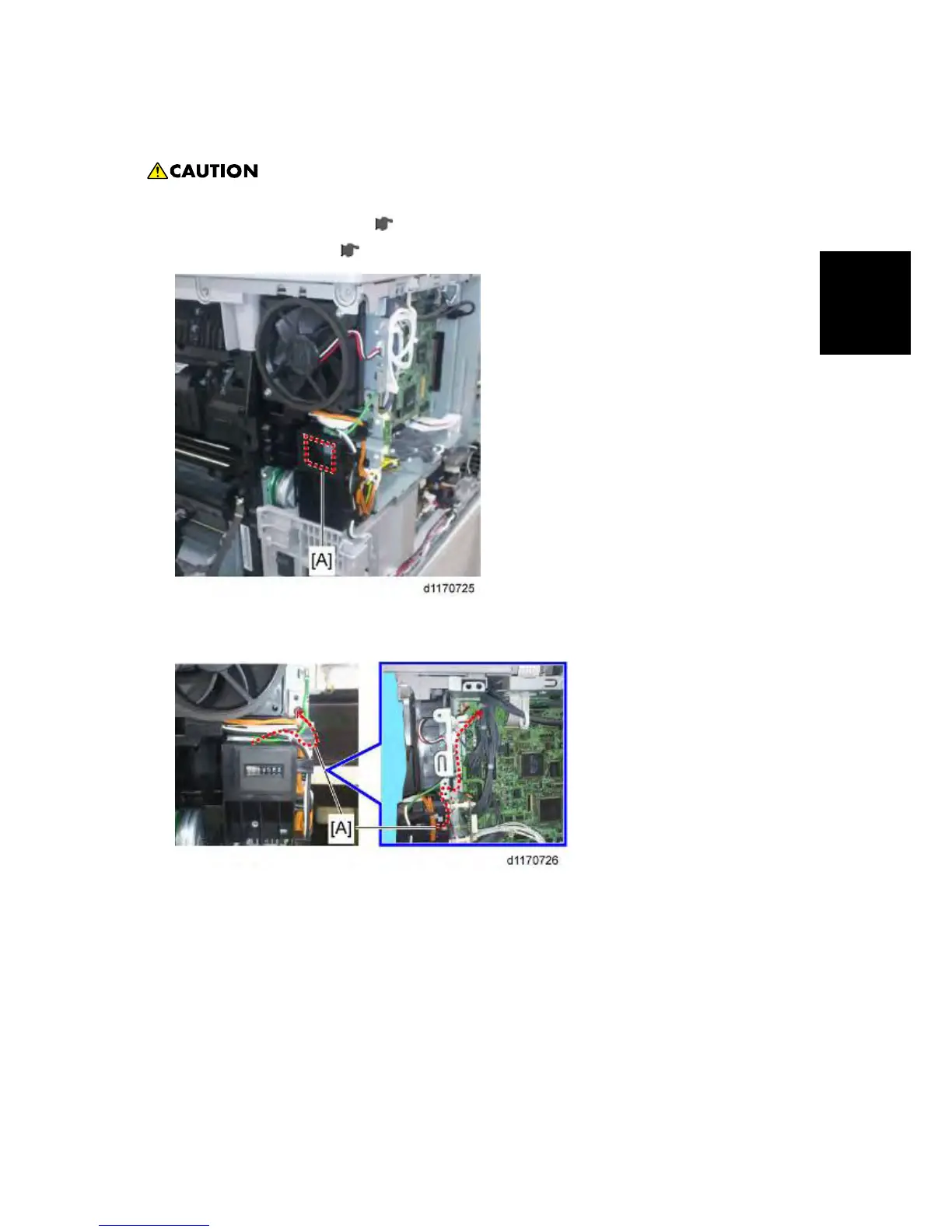

3. Connect the harness to the mechanical counter.
4. Insert the mechanical counter into the place [A] at the rear right of the machine (Hooks x 2).
5. Route the harness [A] from the mechanical counter as shown above.
6. Connect the connector of the harness to the connector CN570.
7. Reassemble the machine.
