Ricoh D117 User Manual

ARDF
D117/D118 4-152 SM

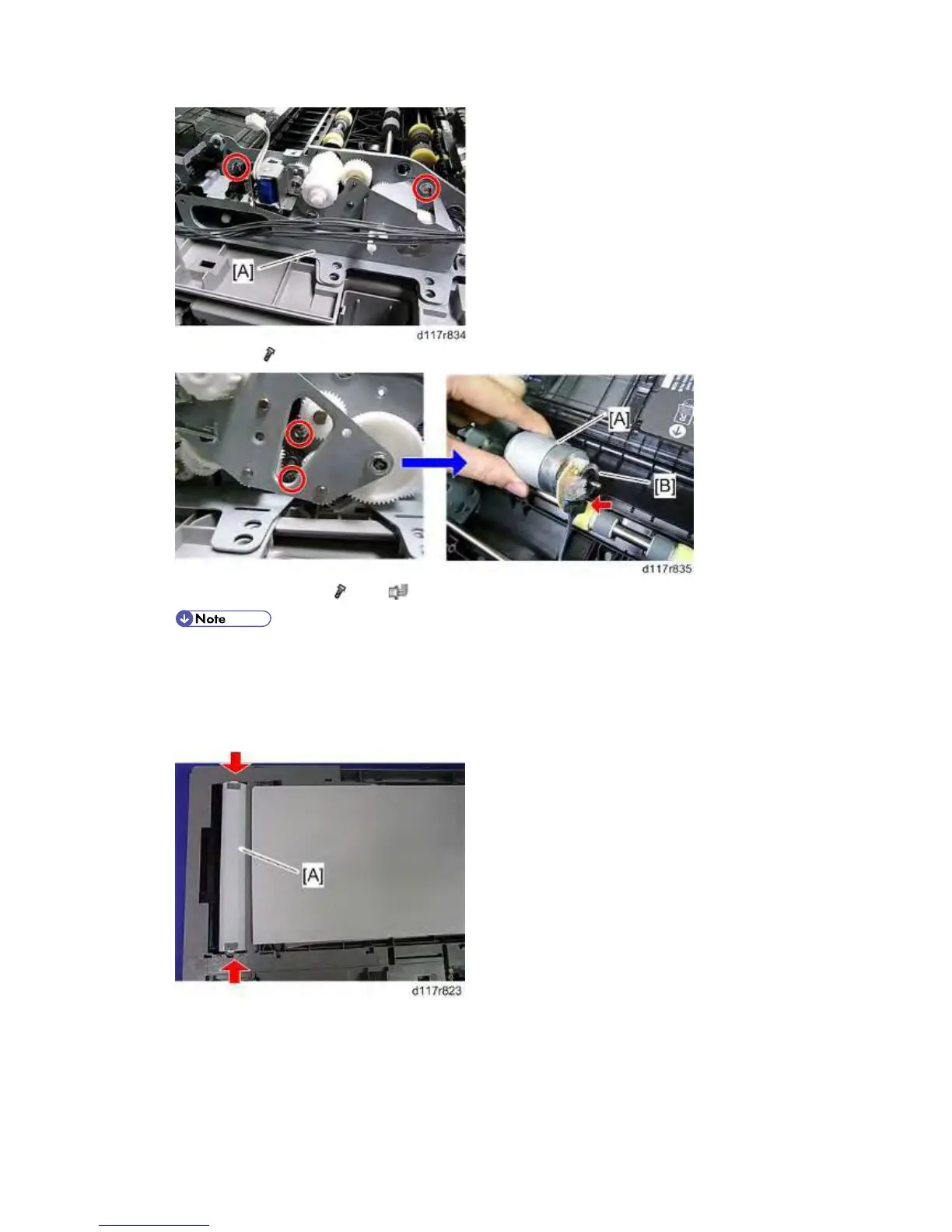

7. Bracket [A] (
x 2)
8. ARDF drive motor [A] ( x 2, x 1)
 Do not touch the encoder [B] when holding the motor.
4.16.10 WHITE PLATE
1. Open the ARDF.
2. White plate [A] (hook x 2)

Ricoh D117 Specifications

General

Brand	Ricoh
Model	D117
Category	All in One Printer
Language	English
