7.Detailed Descriptions
255
No.
Name
No.
Name
6
Waste toner collection motor (M7)
13
Color drum motor (M1)
7
Duplex motor (M5)
14
TM/P sensor (S8)

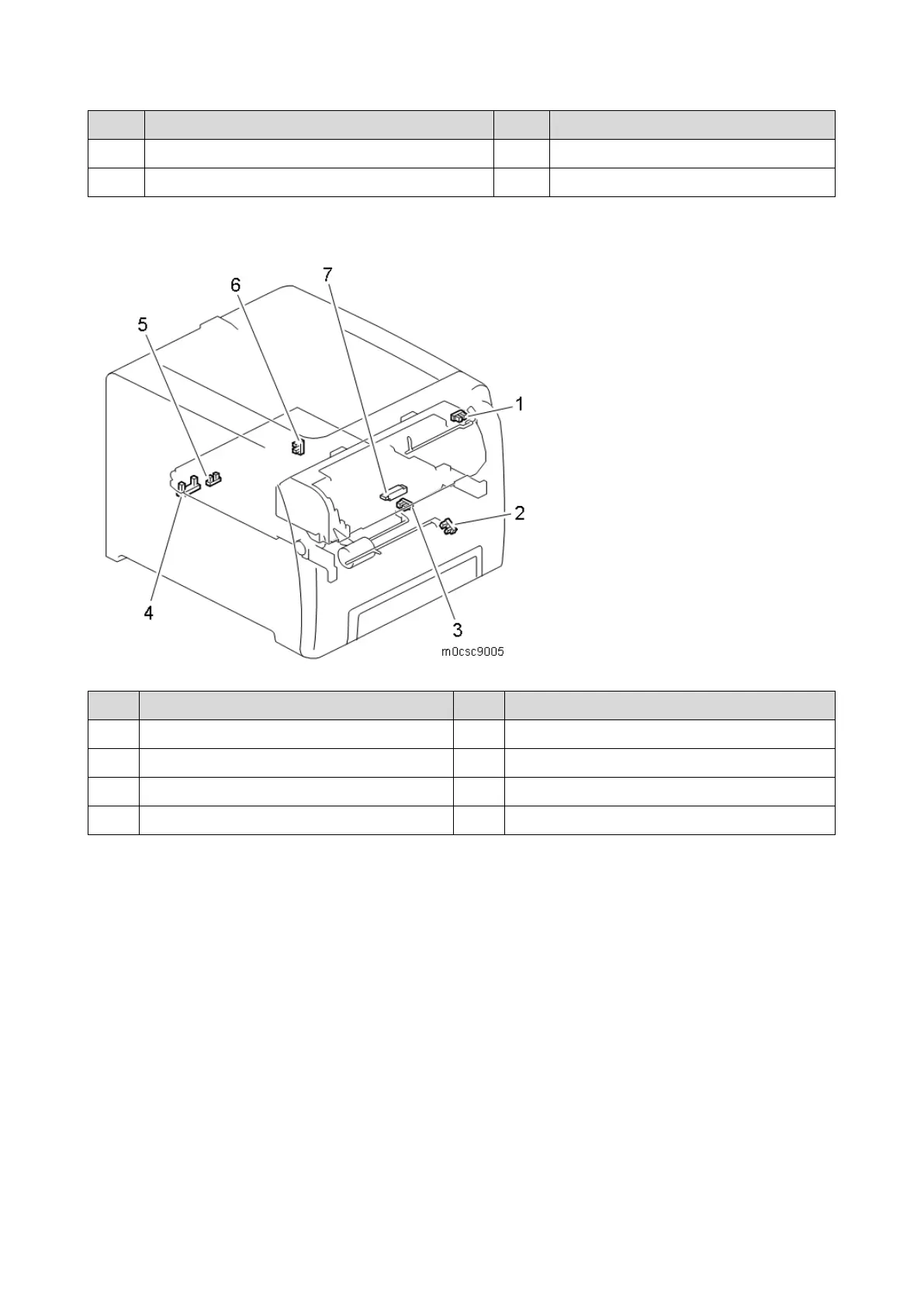

Sensors
No.
Name
No.
Name
1
Paper exit sensor (S5)
5
Waste toner bottle set sensor (S10)
2
Registration sensor (S4)
6
ITB contact sensor (S6)
3
Paper end sensor (S3)
7
Fusing entrance sensor (S2)
4
Waste toner overflow sensor (S9)
